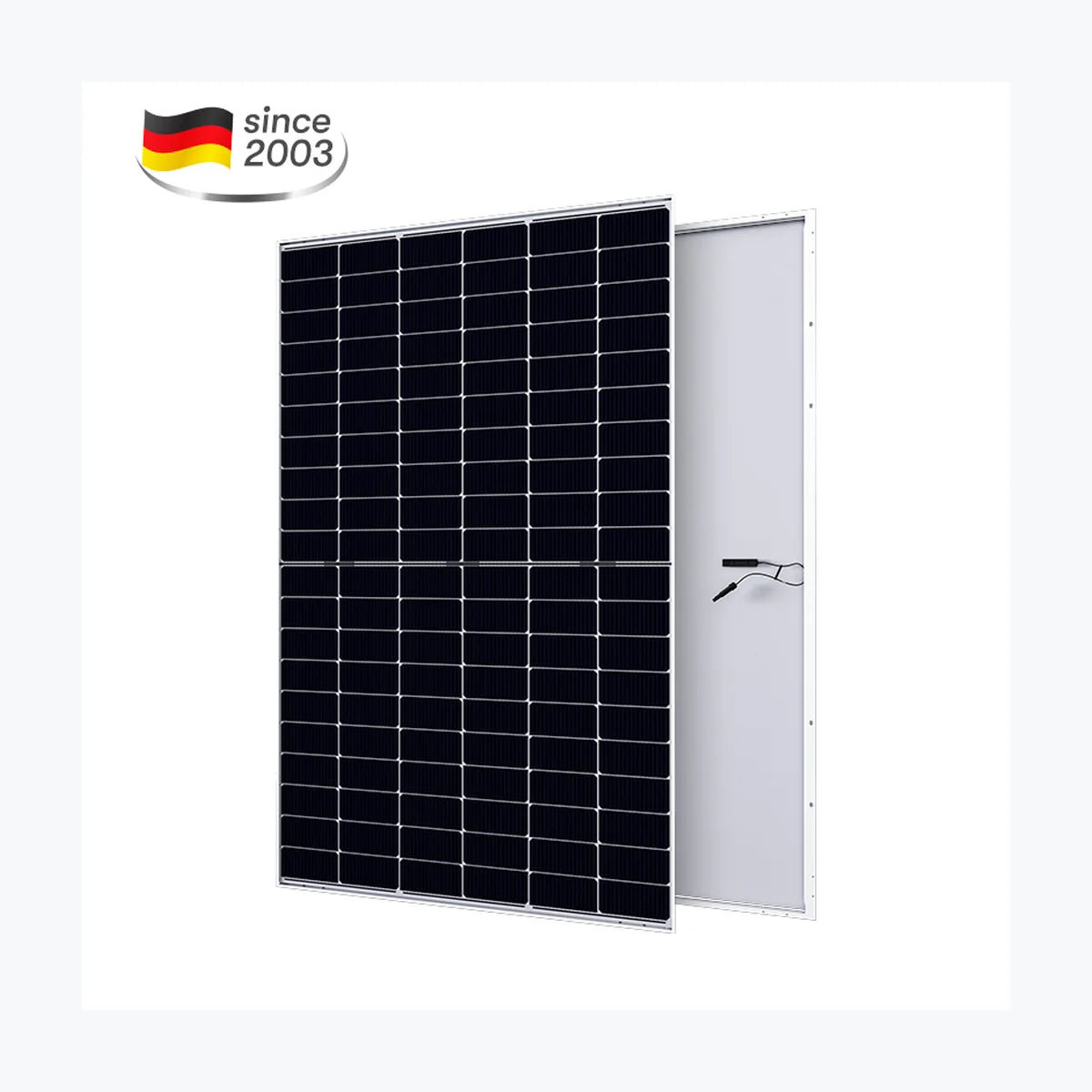

    AESOLAR AE485 CMD-120

    AESOLAR AE485 CMD-120

    $24.00 USD
    $24.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0449
    • Container price: $12,960.00 USD
    • Container qty: 720
    • Mpn: CMD-120
    • Odoo id: 25,358
    • Pallet price: $612.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE485 CMD-120 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 485 Wp Voltage at Maximum Power (Vmpp) 35.55 V Current at Maximum Power (Impp) 13.65 A Open Circuit Voltage (Voc) 42.87 V Short Circuit Current (Isc) 14.38 A Panel Efficiency 22.51 % Maximum Power (Pmax) 365 Wp Voltage at Maximum Power (Vmpp) 33.44 V Current at Maximum Power (Impp) 10.92 A Open Circuit Voltage (Voc) 40.73 V Short Circuit Current (Isc) 11.62 A Temperature 42±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1902x1133x30 mm Weight 23.5 kg Cell Size 182×182 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Ju

      Technology: TOPCon
      Power Range: 465 ~ 485 Wp
      Panel Efficiency: 21.58 ~ 22.51 %
      Weight: 23.5 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
