    In Stock

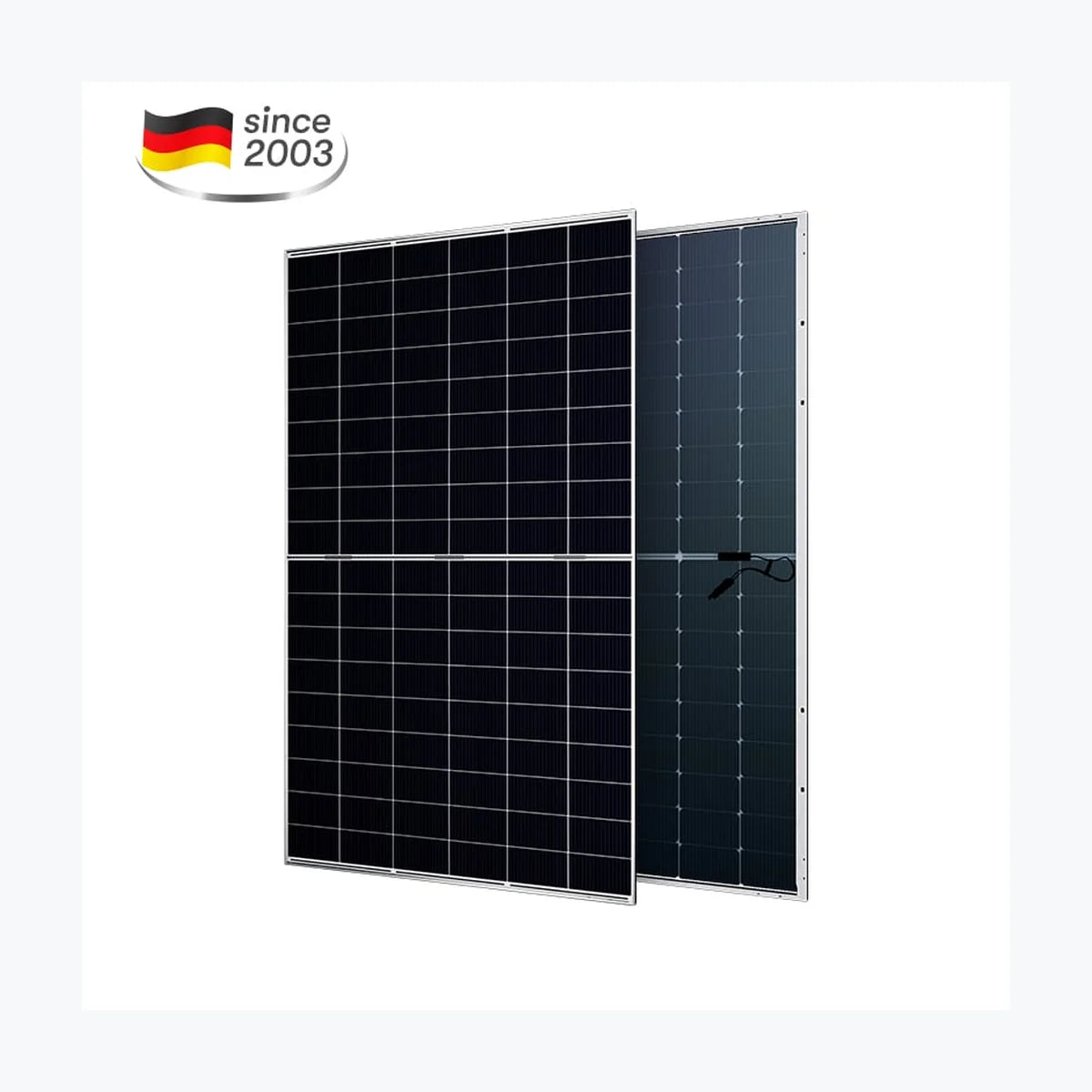

    AESOLAR AE505 CMER-108BDS

    AESOLAR AE505 CMER-108BDS

    $101.00 USD
    $101.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0463
    • Container price: $54,540.00 USD
    • Container qty: 720
    • Mpn: CMER-108BDS
    • Odoo id: 25,424
    • Pallet price: $2,575.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE505 CMER-108BDS Product Warranty 30 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 505 Wp Voltage at Maximum Power (Vmpp) 33.8 V Current at Maximum Power (Impp) 14.94 A Open Circuit Voltage (Voc) 39.9 V Short Circuit Current (Isc) 16.02 A Panel Efficiency 22.69 % Maximum Power (Pmax) 386 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 12.3 A Open Circuit Voltage (Voc) 37.1 V Short Circuit Current (Isc) 13.18 A Temperature 43±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1964x1133x30 mm Weight 27.5 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2.0 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diodes 3 Ju

      Technology: TOPCon
      Power Range: 490 ~ 510 Wp
      Panel Efficiency: 22.02 ~ 22.92 %
      Weight: 27.5 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
