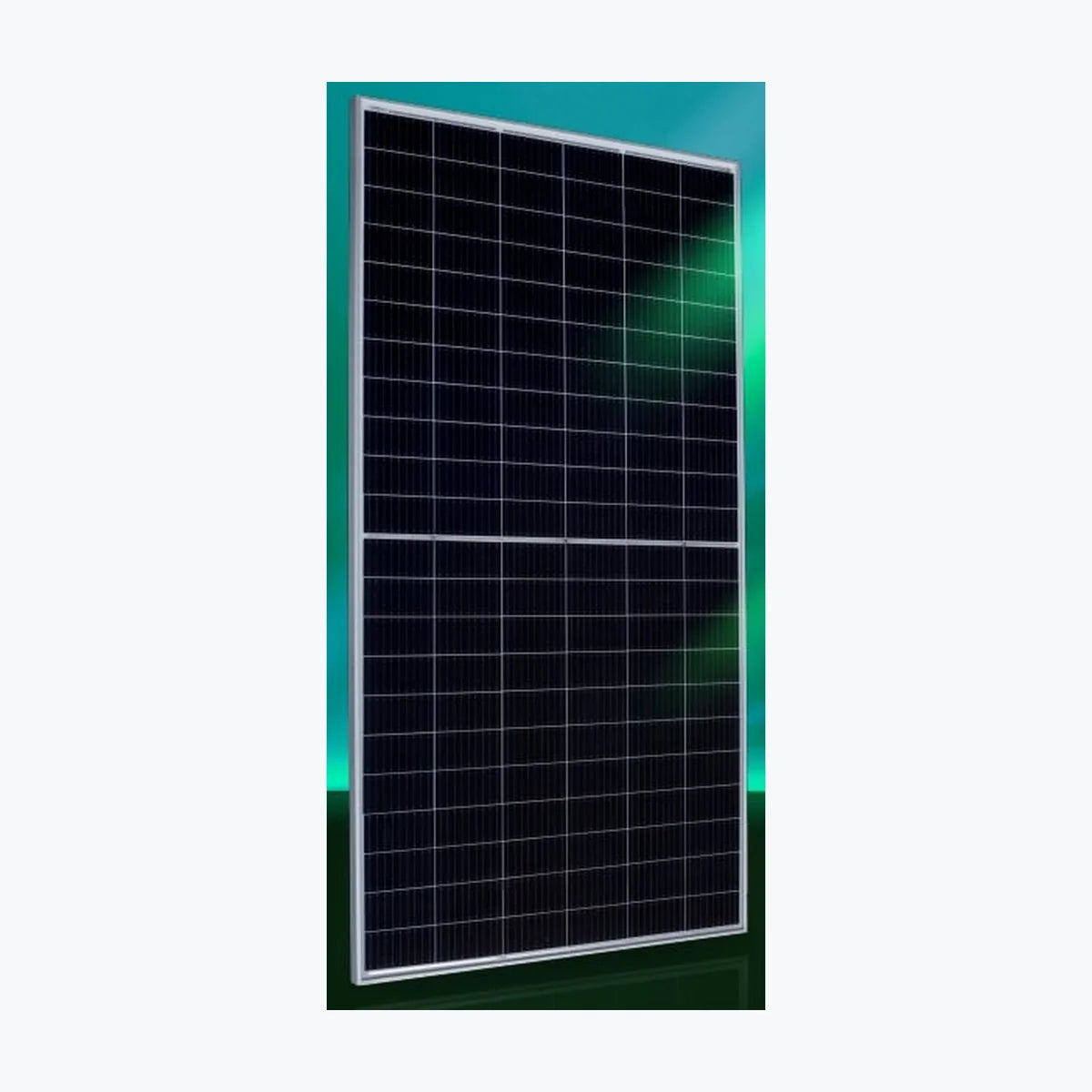

Aesolar AE505MD-132BD
PayPal Pay in 4 interest-free payments of $25.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0464
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AE505MD-132BD Product Warranty 15 Years Power Warranty 30 Years of 84.45 % Total Degradation Rate ⏳ 0.52 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 505 Wp Voltage at Maximum Power (Vmpp) 39.27 V Current at Maximum Power (Impp) 12.86 A Open Circuit Voltage (Voc) 46.93 V Short Circuit Current (Isc) 13.62 A Panel Efficiency 21.29 % Maximum Power (Pmax) 377 Wp Voltage at Maximum Power (Vmpp) 36.6 V Current at Maximum Power (Impp) 10.29 A Open Circuit Voltage (Voc) 43.8 V Short Circuit Current (Isc) 10.9 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1133x30 mm Weight 30.5 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diodes 3 Junc
Technology: Bifacial, PERC
Power Range: 485 ~ 505 Wp
Panel Efficiency: 20.44 ~ 21.29 %
Weight: 30.5 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0464 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
