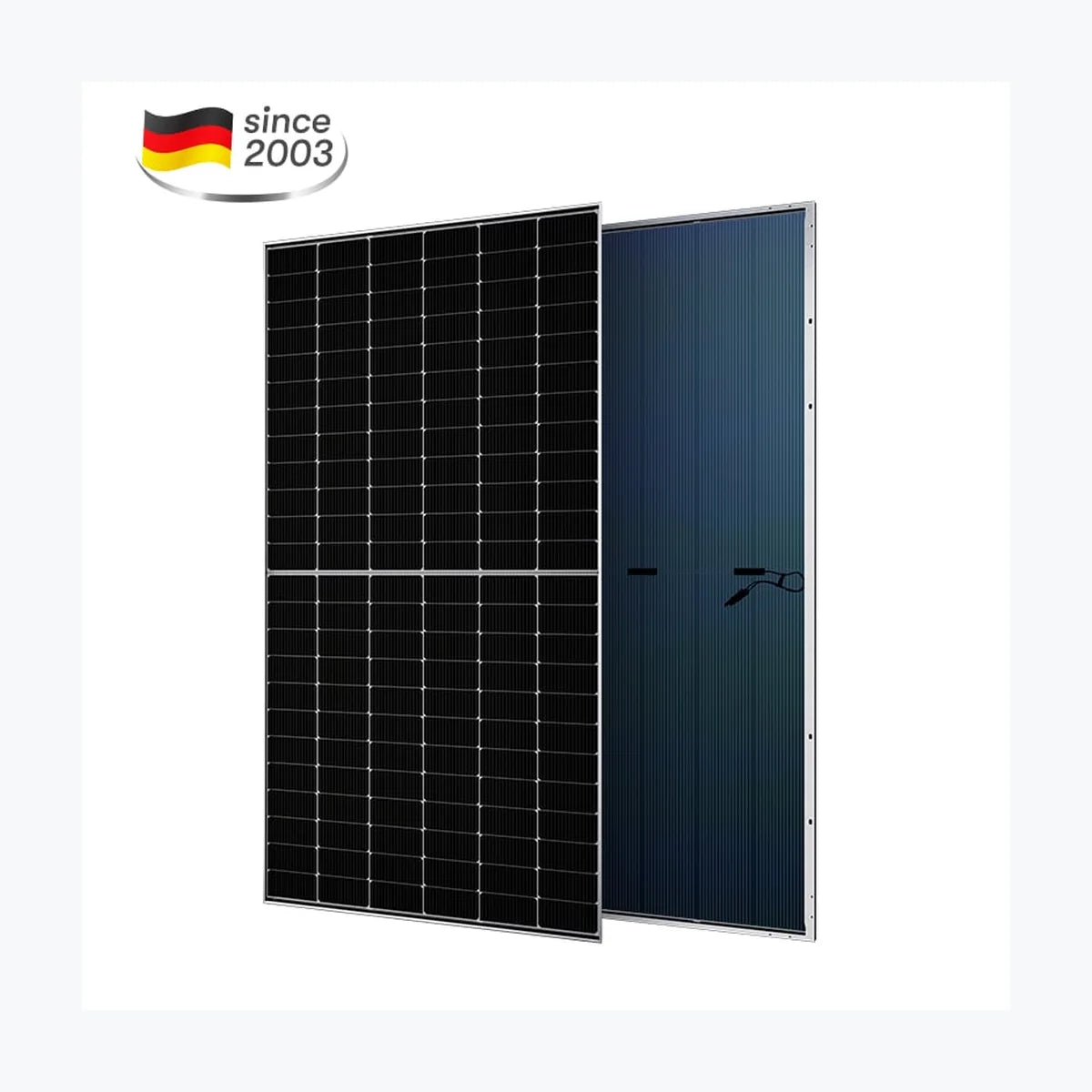

    AESOLAR AE535MD-144BD

    AESOLAR AE535MD-144BD

    $107.00 USD
    $107.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0471
    • Container price: $57,780.00 USD
    • Container qty: 720
    • Mpn: AE535MD-144BD
    • Odoo id: 25,272
    • Pallet price: $2,728.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE535MD-144BD Product Warranty 15 Years Power Warranty 30 Years of 84.45 % Total Degradation Rate ⏳ 0.52 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 535 Wp Voltage at Maximum Power (Vmpp) 41.93 V Current at Maximum Power (Impp) 12.76 A Open Circuit Voltage (Voc) 49.78 V Short Circuit Current (Isc) 13.52 A Panel Efficiency 20.73 % Maximum Power (Pmax) 403 Wp Voltage at Maximum Power (Vmpp) 39.5 V Current at Maximum Power (Impp) 10.21 A Open Circuit Voltage (Voc) 47.2 V Short Circuit Current (Isc) 10.82 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1133x30 mm Weight 32.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Protection C

      Technology: Bifacial, PERC
      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.53 ~ 21.31 %
      Weight: 32.5 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
