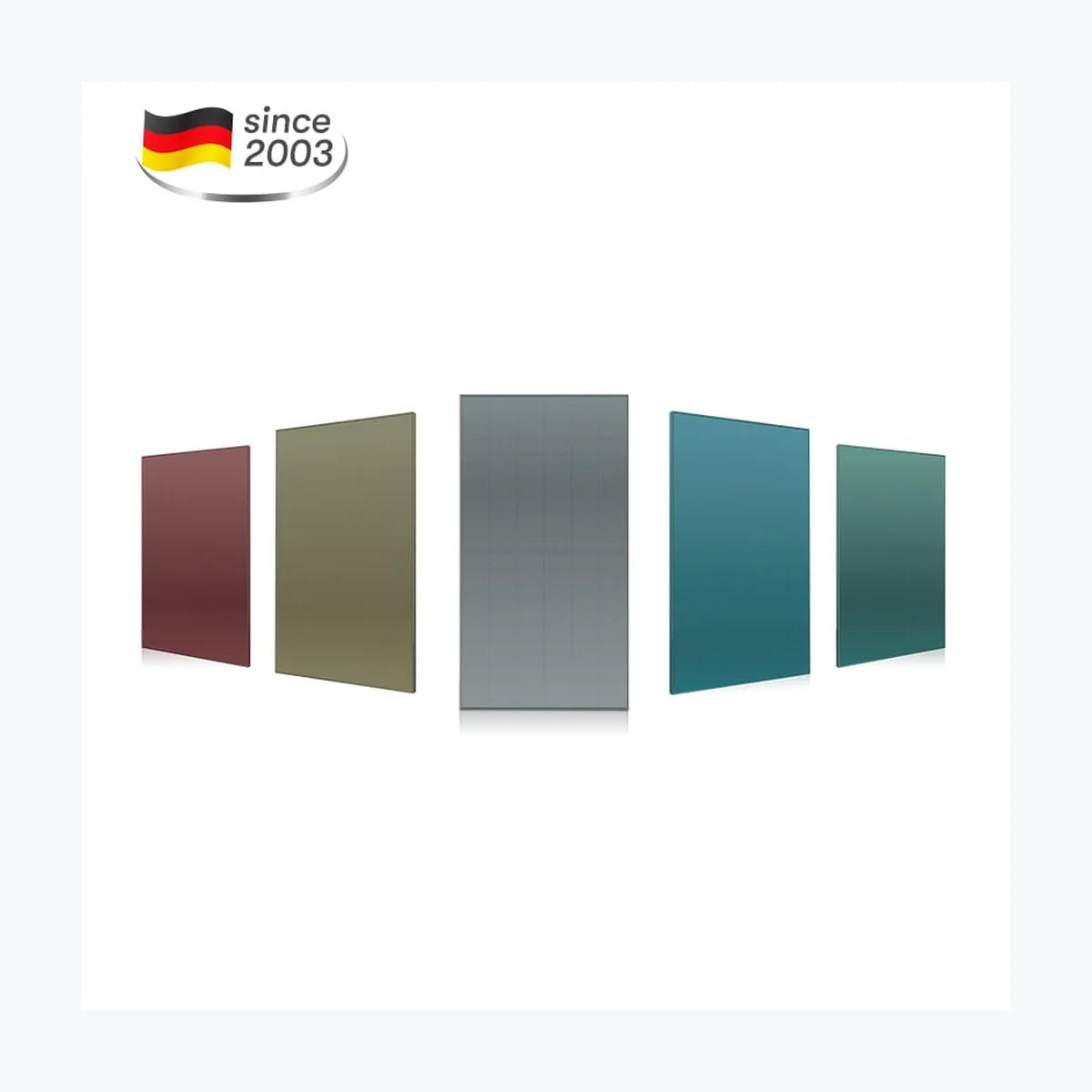

AESOLAR SAHARA
PayPal Pay in 4 interest-free payments of $24.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0543
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. SAHARA Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 42.17 V Current at Maximum Power (Impp) 11.38 A Open Circuit Voltage (Voc) 45.57 V Short Circuit Current (Isc) 11.9 A Panel Efficiency 20.23 % Maximum Power (Pmax) 367 Wp Voltage at Maximum Power (Vmpp) 38.88 V Current at Maximum Power (Impp) 9.19 A Open Circuit Voltage (Voc) 43.06 V Short Circuit Current (Isc) 9.61 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 24 kg Cell Size 182×91 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector
Technology: BIPV
Power Range: 450 ~ 485 Wp
Panel Efficiency: 18.97 ~ 20.44 %
Weight: 24 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0543 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
