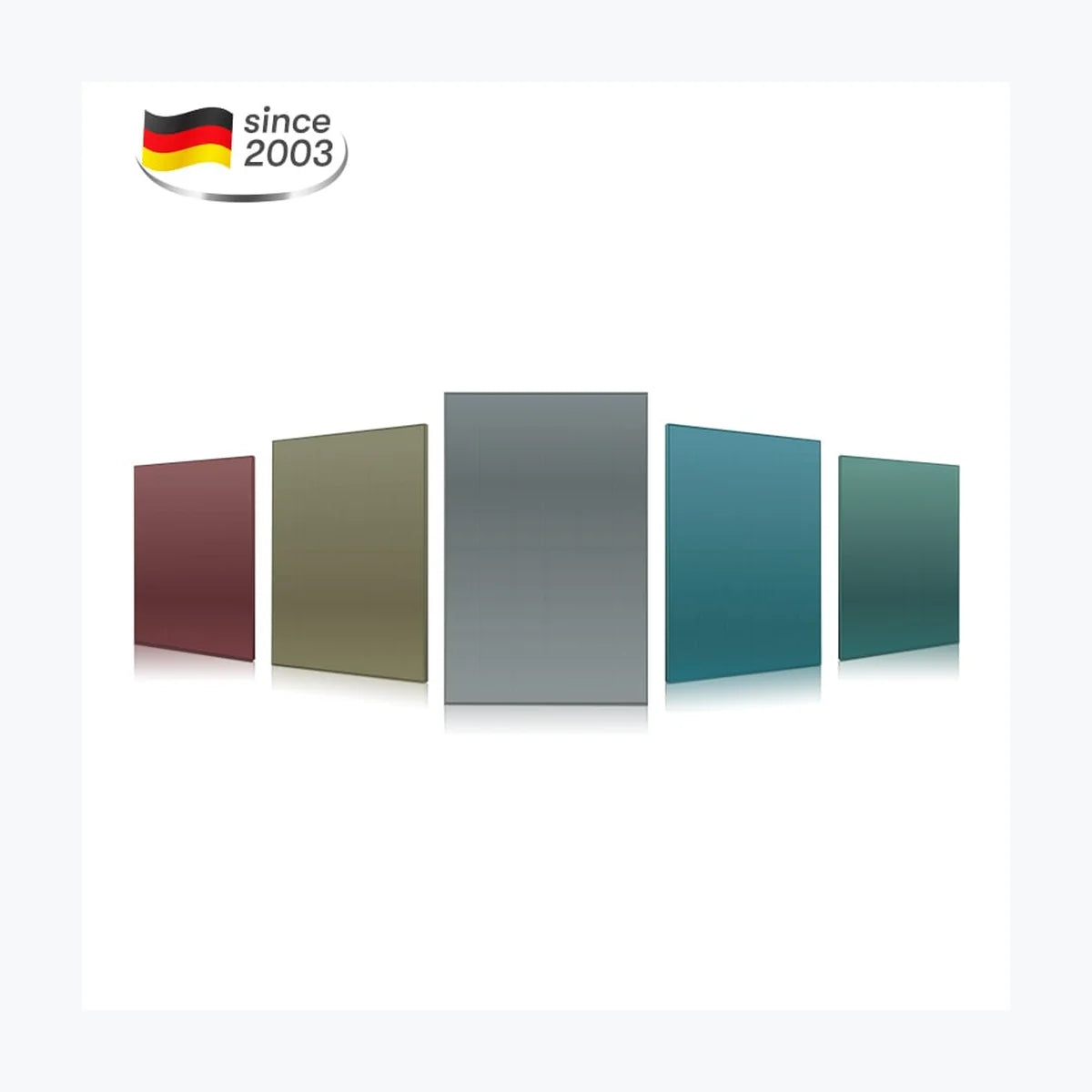

AESOLAR TERRACOTTA
PayPal Pay in 4 interest-free payments of $17.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0545
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. TERRACOTTA Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 355 Wp Voltage at Maximum Power (Vmpp) 33.2 V Current at Maximum Power (Impp) 10.69 A Open Circuit Voltage (Voc) 38.26 V Short Circuit Current (Isc) 11.3 A Panel Efficiency 18.2 % Maximum Power (Pmax) 266 Wp Voltage at Maximum Power (Vmpp) 30.74 V Current at Maximum Power (Impp) 8.65 A Open Circuit Voltage (Voc) 36.34 V Short Circuit Current (Isc) 9.14 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.32 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.055 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1721x1133x30 mm Weight 24 kg Cell Size 182×91 mm Glass Type Anti-reflection Coating, Tempered Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 C
Technology: BIPV
Power Range: 355 ~ 380 Wp
Panel Efficiency: 18.2 ~ 19.49 %
Weight: 24 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0545 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
