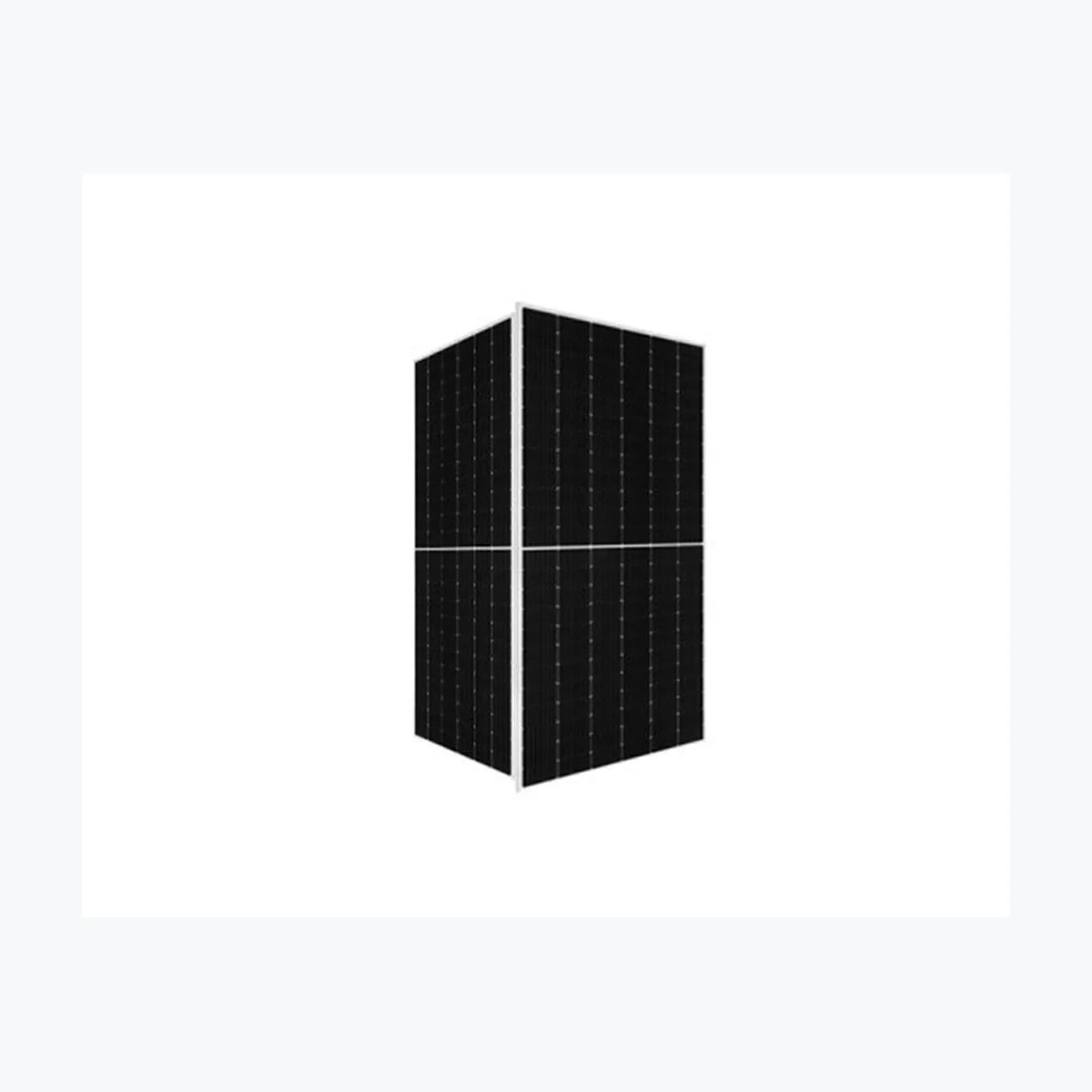

    Aidu Energy VE-415

    Aidu Energy VE-415

    $83.00 USD
    $83.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0838
    • Container price: $44,820.00 USD
    • Container qty: 720
    • Pallet price: $2,116.50 USD
    • Pallet qty: 30
    • Unit price: $83.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-415 Product Warranty 12 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 415 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 13.23 A Open Circuit Voltage (Voc) 37.4 V Short Circuit Current (Isc) 14.09 A Panel Efficiency 21.3 % Maximum Power (Pmax) 311 Wp Voltage at Maximum Power (Vmpp) 29.4 V Current at Maximum Power (Impp) 10.58 A Open Circuit Voltage (Voc) 35.3 V Short Circuit Current (Isc) 11.34 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 21.3 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manu

      Technology: PERC
      Power Range: 395 ~ 420 Wp
      Panel Efficiency: 20.2 ~ 21.5 %
      Weight: 21.3 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
