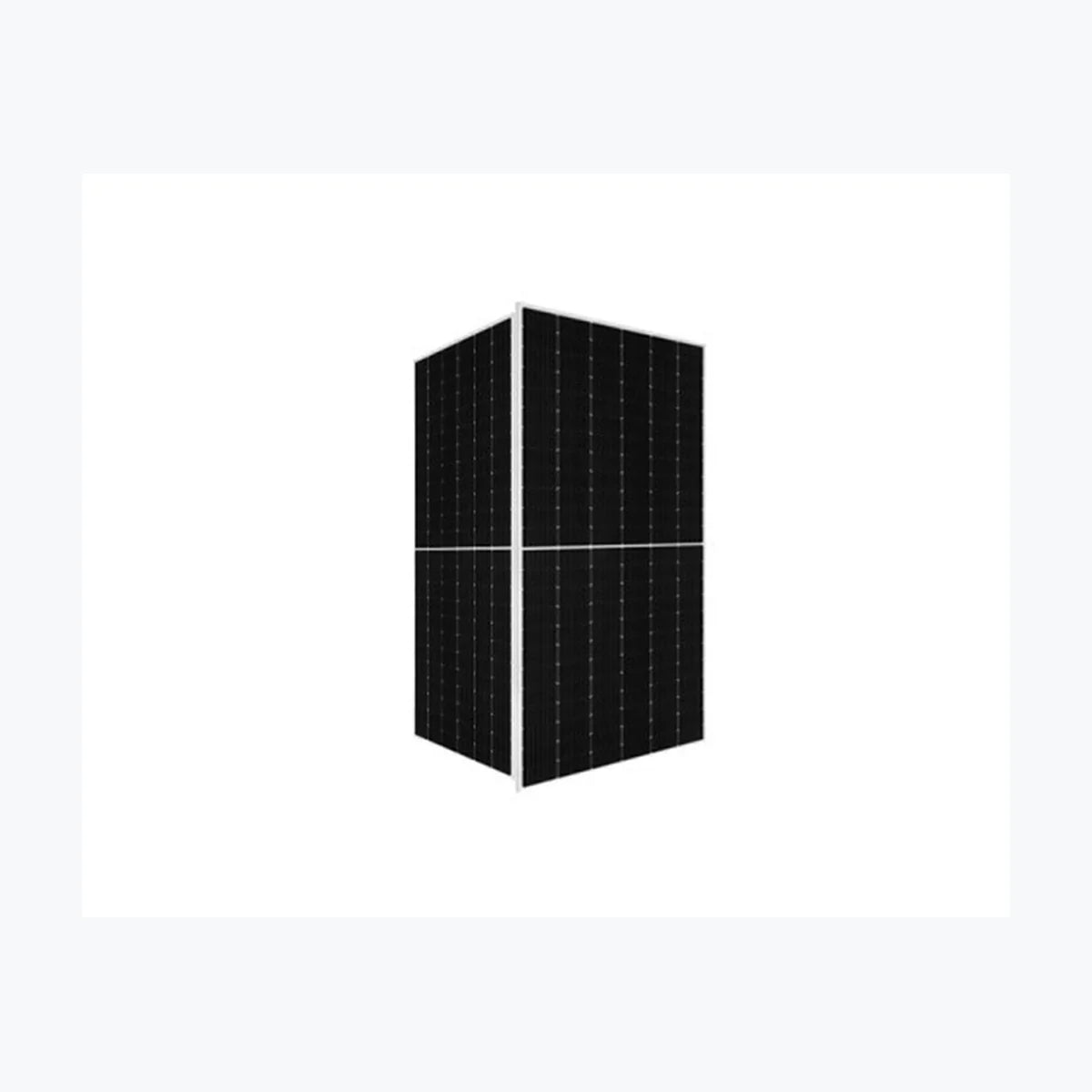

    Aidu Energy VE-440

    Aidu Energy VE-440

    $88.00 USD
    $88.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0843
    • Container price: $47,520.00 USD
    • Container qty: 720
    • Pallet price: $2,244.00 USD
    • Pallet qty: 30
    • Unit price: $88.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-440 Product Warranty 12 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 440 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 13.59 A Open Circuit Voltage (Voc) 39.4 V Short Circuit Current (Isc) 14.01 A Panel Efficiency 22.5 % Maximum Power (Pmax) 332 Wp Voltage at Maximum Power (Vmpp) 30.5 V Current at Maximum Power (Impp) 10.87 A Open Circuit Voltage (Voc) 37.2 V Short Circuit Current (Isc) 11.3 A Temperature 42±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 21.3 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer

      Technology: TOPCon, N-type
      Power Range: 420 ~ 440 Wp
      Panel Efficiency: 21.5 ~ 22.5 %
      Weight: 21.3 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
