    In Stock

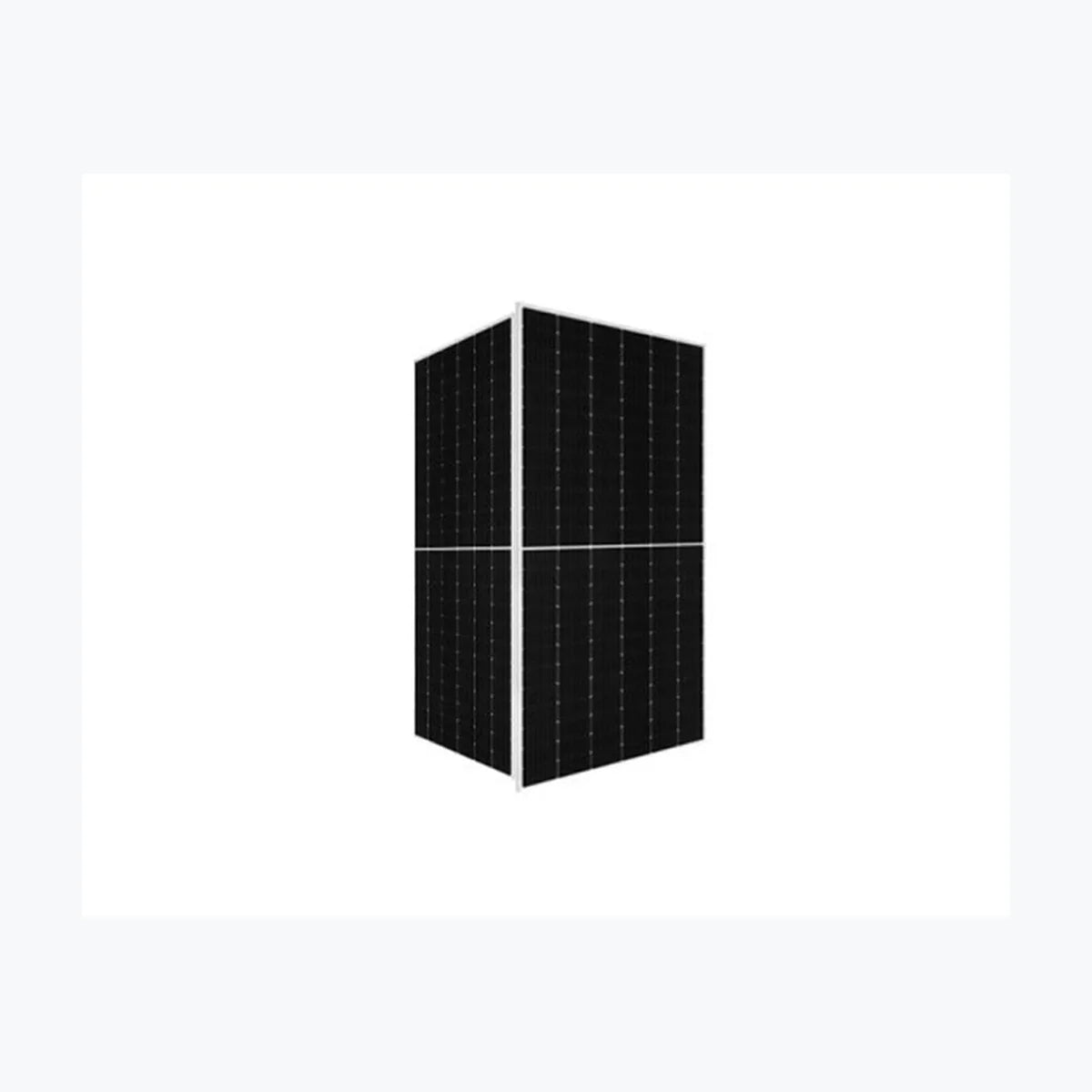

    Aidu Energy VE-455

    Aidu Energy VE-455

    $91.00 USD
    $91.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:Aidu_Energy-VE-455
    • Container price: $49,140.00 USD
    • Container qty: 720
    • Mpn: Aidu_Energy-VE-455
    • Odoo id: 31,005
    • Pallet price: $2,320.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-455 Product Warranty 12 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 34.6 V Current at Maximum Power (Impp) 13.17 A Open Circuit Voltage (Voc) 41.2 V Short Circuit Current (Isc) 13.95 A Panel Efficiency 21.1 % Maximum Power (Pmax) 341 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 10.52 A Open Circuit Voltage (Voc) 38.9 V Short Circuit Current (Isc) 11.25 A Temperature 41±3 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x30 mm Weight 24.2 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer

      Technology: PERC
      Power Range: 445 ~ 465 Wp
      Panel Efficiency: 20.6 ~ 21.5 %
      Weight: 24.2 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
