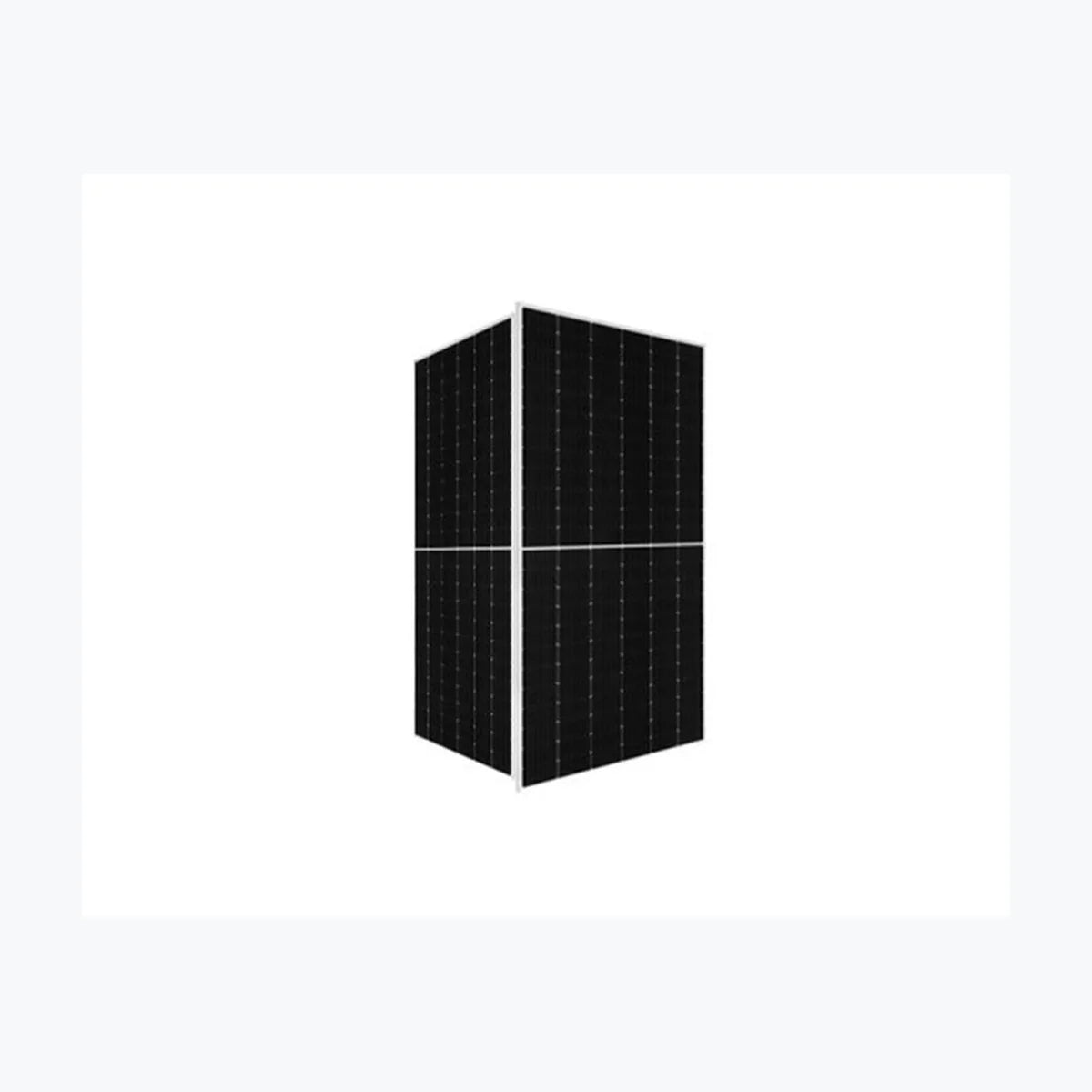

Aidu Energy VE-460
PayPal Pay in 4 interest-free payments of $23.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- Aidu_Energy-VE-460
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. VE-460 Product Warranty 12 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 34.8 V Current at Maximum Power (Impp) 13.24 A Open Circuit Voltage (Voc) 41.4 V Short Circuit Current (Isc) 14 A Panel Efficiency 21.3 % Maximum Power (Pmax) 345 Wp Voltage at Maximum Power (Vmpp) 32.6 V Current at Maximum Power (Impp) 10.58 A Open Circuit Voltage (Voc) 39.1 V Short Circuit Current (Isc) 11.29 A Temperature 41±3 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1903x1134x30 mm Weight 24.2 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's
Technology: PERC
Power Range: 445 ~ 465 Wp
Panel Efficiency: 20.6 ~ 21.5 %
Weight: 24.2 kg
Seller Name: Aidu Energy Co., Ltd
Country: China
| SKU | Aidu_Energy-VE-460 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
