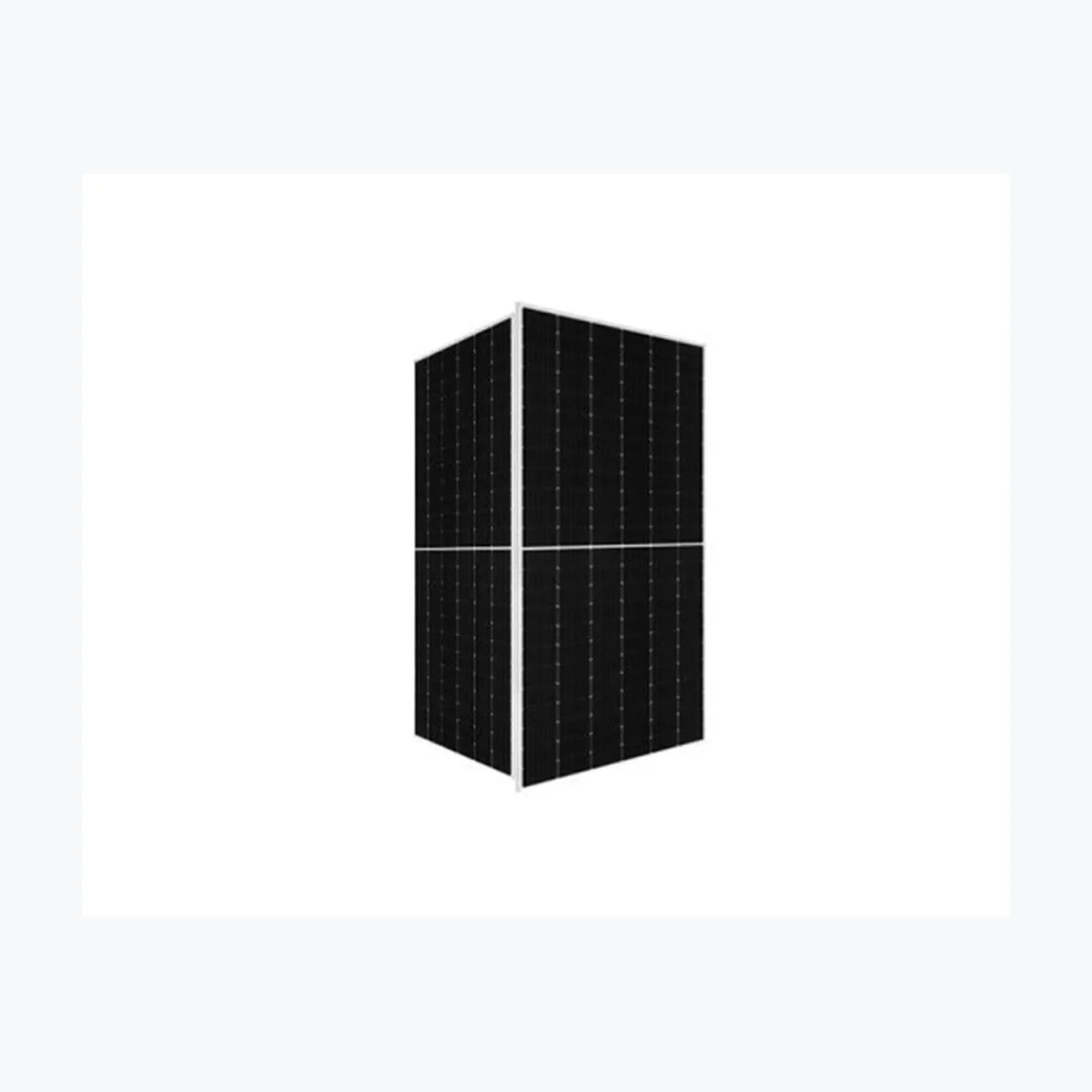

    Aidu Energy VE-605

    Aidu Energy VE-605

    $121.00 USD
    $121.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0852
    • Container price: $65,340.00 USD
    • Container qty: 720
    • Pallet price: $3,085.50 USD
    • Pallet qty: 30
    • Unit price: $121.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. VE-605 Product Warranty 12 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 605 Wp Voltage at Maximum Power (Vmpp) 40.6 V Current at Maximum Power (Impp) 14.91 A Open Circuit Voltage (Voc) 47.8 V Short Circuit Current (Isc) 15.91 A Panel Efficiency 22.4 % Maximum Power (Pmax) 458 Wp Voltage at Maximum Power (Vmpp) 38.4 V Current at Maximum Power (Impp) 11.92 A Open Circuit Voltage (Voc) 45.3 V Short Circuit Current (Isc) 12.83 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.8 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Da

      Technology: Bifacial, TOPCon, N-type
      Power Range: 600 ~ 630 Wp
      Panel Efficiency: 22.2 ~ 23.3 %
      Weight: 32.8 kg
      Seller Name: Aidu Energy Co., Ltd
      Country: China
