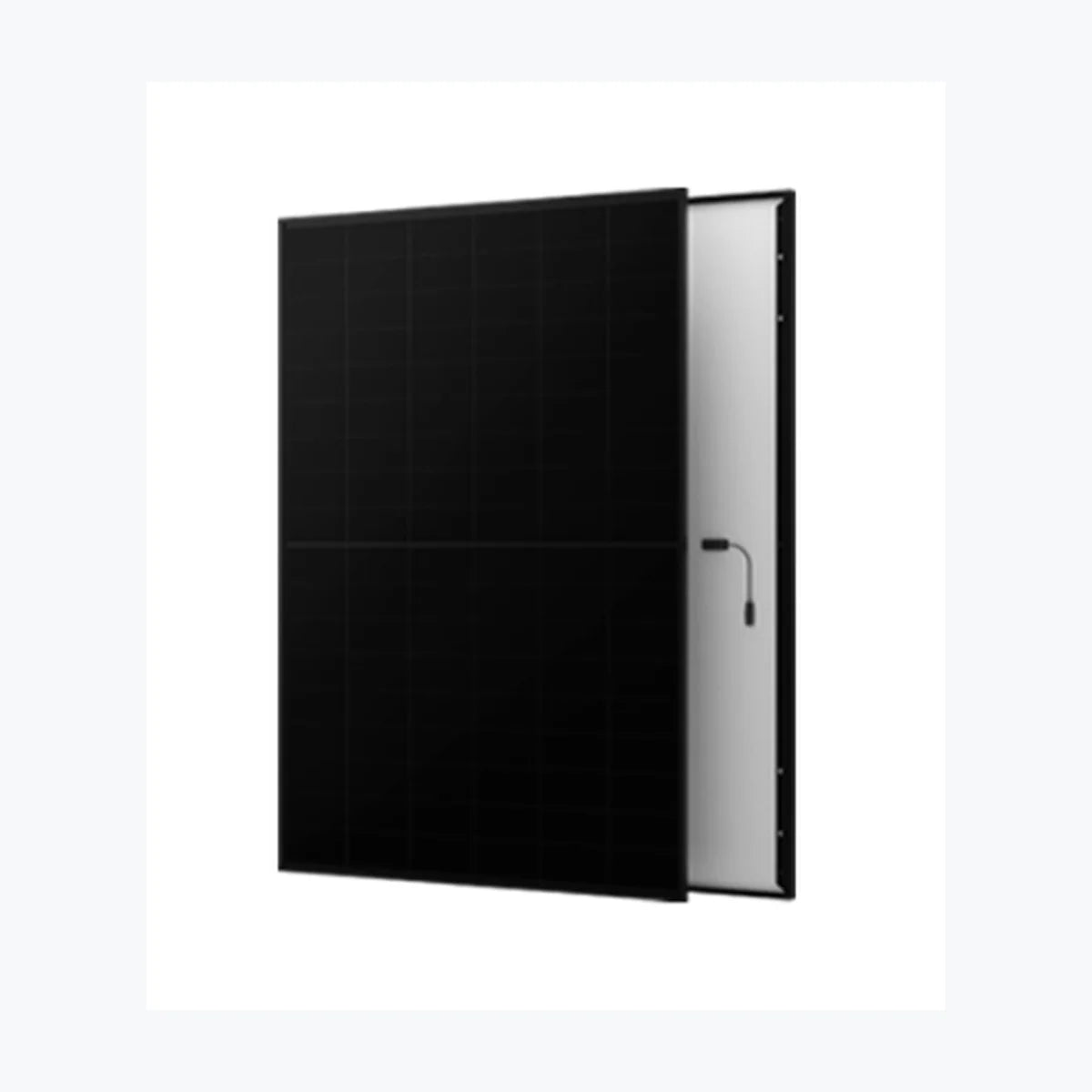

    AIKO AIKO-A455-MAH54Mb

    AIKO AIKO-A455-MAH54Mb

    $91.00 USD
    $91.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0559
    • Container price: $49,140.00 USD
    • Container qty: 720
    • Mpn: AIKO-A455-MAH54M
    • Odoo id: 21,462
    • Pallet price: $2,320.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A455-MAH54Mb Power Warranty 25 Years of 90.6 %, 30 Years of 88.5 % Total Degradation Rate ⏳ 0.38 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 34.56 V Current at Maximum Power (Impp) 13.17 A Open Circuit Voltage (Voc) 41 V Short Circuit Current (Isc) 14.22 A Panel Efficiency 22.8 % Maximum Power (Pmax) 343 Wp Voltage at Maximum Power (Vmpp) 32.64 V Current at Maximum Power (Impp) 10.51 A Open Circuit Voltage (Voc) 38.72 V Short Circuit Current (Isc) 11.5 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1757x1134x30 mm Weight 21.5 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1

      Technology: Back Contact, N-type
      Power Range: 440 ~ 470 Wp
      Panel Efficiency: 22.1 ~ 23.6 %
      Weight: 21.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
