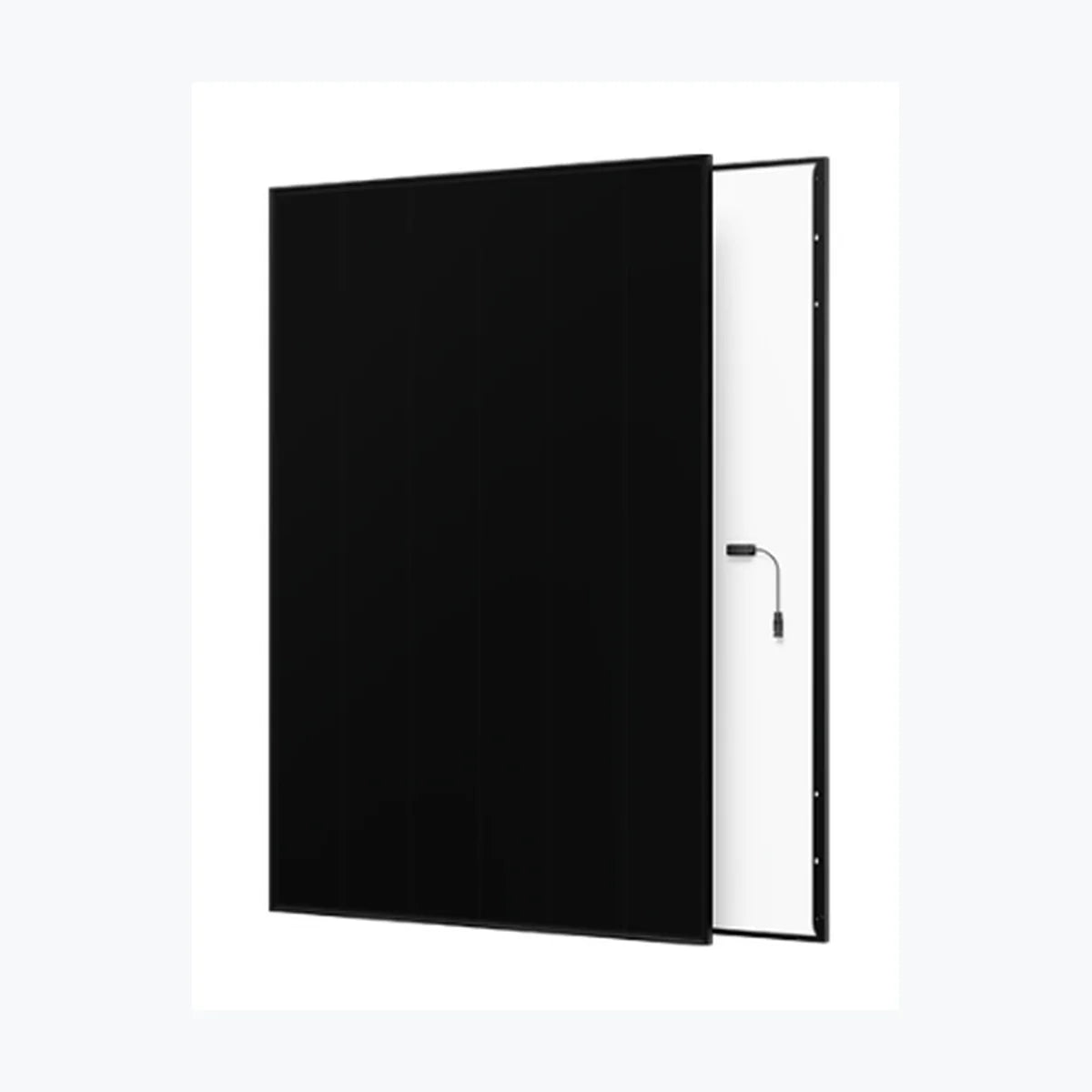

    AIKO AIKO-A460-MCE54Mb

    AIKO AIKO-A460-MCE54Mb

    $92.00 USD
    $92.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0564
    • Container price: $49,680.00 USD
    • Container qty: 720
    • Mpn: AIKO-A460-MCE54M
    • Odoo id: 26,665
    • Pallet price: $2,346.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A460-MCE54Mb Power Warranty 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 33.8 V Current at Maximum Power (Impp) 13.62 A Open Circuit Voltage (Voc) 40.4 V Short Circuit Current (Isc) 14.58 A Panel Efficiency 23 % Maximum Power (Pmax) 349 Wp Voltage at Maximum Power (Vmpp) 32.07 V Current at Maximum Power (Impp) 10.89 A Open Circuit Voltage (Voc) 38.33 V Short Circuit Current (Isc) 11.78 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 21 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manuf

      Technology: Back Contact, N-type
      Power Range: 460 ~ 485 Wp
      Panel Efficiency: 23 ~ 24.3 %
      Weight: 21 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
