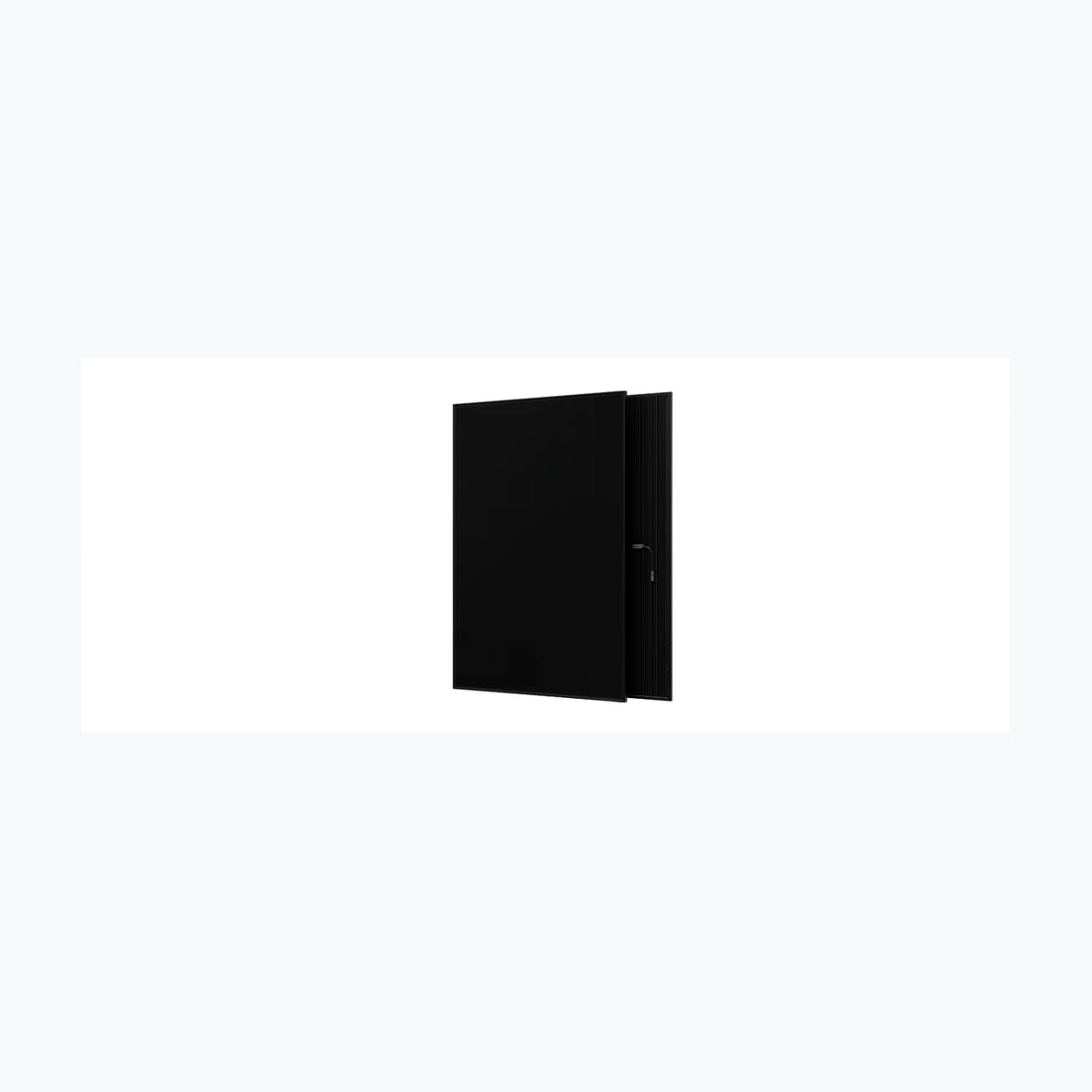

    AIKO AIKO-A485-MCE54Db

    AIKO AIKO-A485-MCE54Db

    $97.00 USD
    $97.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-24834
    • Container price: $52,380.00 USD
    • Container qty: 720
    • Mpn: AIKO-A485-MCE54D
    • Odoo id: 27,696
    • Pallet price: $2,473.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A485-MCE54Db Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 485 Wp Voltage at Maximum Power (Vmpp) 34.3 V Current at Maximum Power (Impp) 14.15 A Open Circuit Voltage (Voc) 40.9 V Short Circuit Current (Isc) 14.8 A Panel Efficiency 24.3 % Maximum Power (Pmax) 367 Wp Voltage at Maximum Power (Vmpp) 32.54 V Current at Maximum Power (Impp) 11.31 A Open Circuit Voltage (Voc) 38.8 V Short Circuit Current (Isc) 12.02 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 24.5 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manuf

      Technology: Back Contact, N-type
      Power Range: 460 ~ 485 Wp
      Panel Efficiency: 23 ~ 24.3 %
      Weight: 24.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
