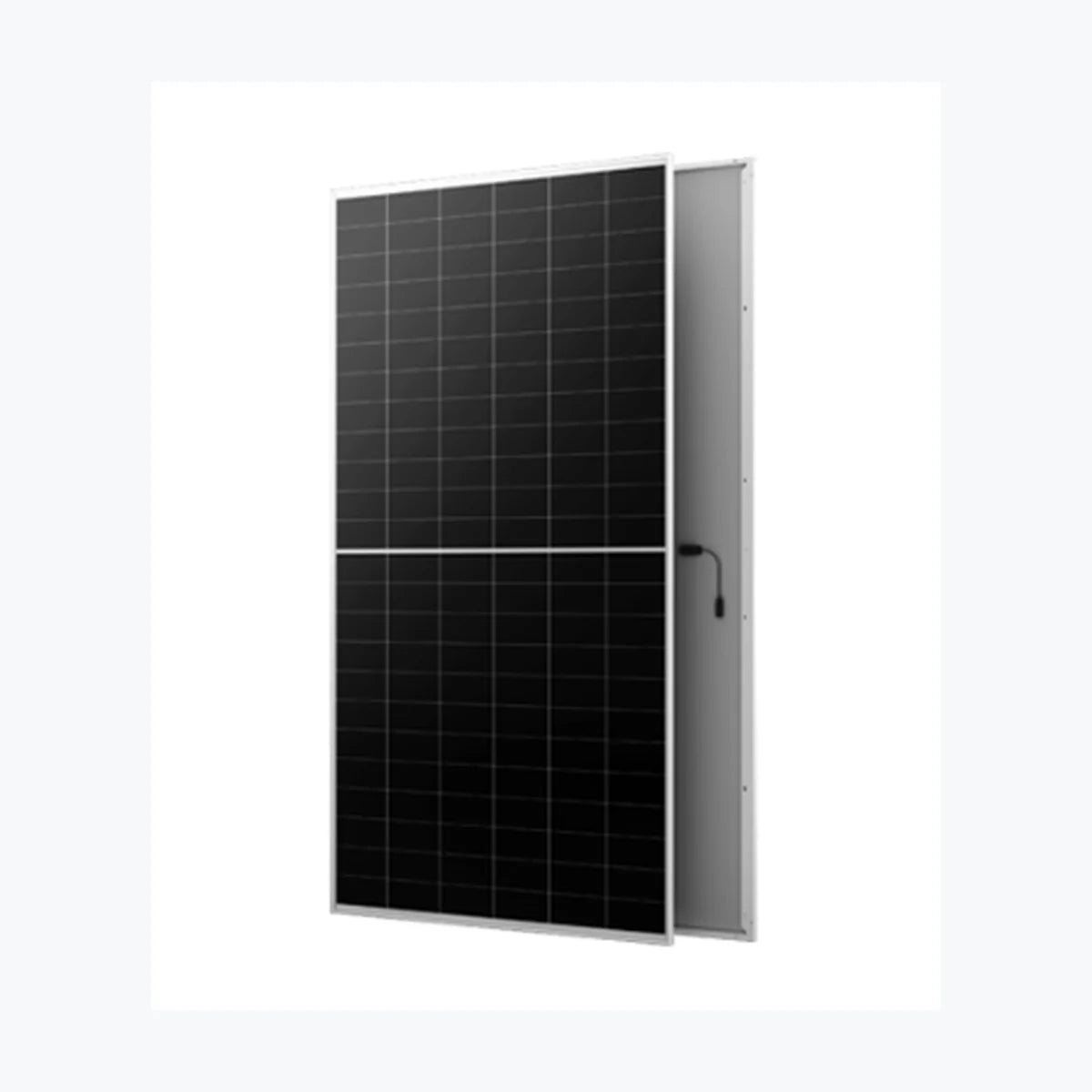

AIKO AIKO-A610-MAH72Dw 610W N-Type Back Contact Monocrystalline Solar Panel
Model AIKO-A610-MAH72Dw | N-Type Back Contact | 144 Cells | Monocrystalline | 1500V System Voltage
Product Overview
The AIKO-A610-MAH72Dw is a high-efficiency solar panel built for modern residential and commercial projects. It uses N-type back contact technology, which helps maximize active surface area and improve energy harvest. With a rated output of 610 Wp and module efficiency of 23.6%, it is designed for strong performance in demanding conditions. The dual-glass construction, robust aluminum frame, and IP68 junction box support long-term reliability. Its 1500V system rating also makes it suitable for larger solar arrays. The panel is engineered for consistent output, low degradation, and dependable operation across a wide temperature range.
Key Benefits
High Output Power: Delivers 610 Wp of maximum power for strong energy production.
Excellent Efficiency: Reaches 23.6% module efficiency for greater yield from limited roof space.
N-Type Back Contact Design: Improves light capture and supports cleaner front-surface aesthetics.
Low Degradation: Offers 25 years of 90.6% output and 30 years of 88.85% output.
Durable Construction: Includes dual glass, anodized aluminum, and IP68 protection for long service life.
How It Works
This solar panel converts sunlight into electricity through N-type back contact cells. The back contact layout keeps conductive elements away from the front surface. More light can reach the cell area, which improves conversion performance. The 144-cell format supports stable voltage and current delivery under standard test conditions. Dual-glass construction helps protect the module from moisture, weather, and mechanical stress. Low temperature coefficients also support better performance in hot climates. As a result, the panel is suitable for systems that need efficient, durable, and predictable solar generation.
Back Contact Cell Architecture: Electrical contacts are positioned behind the cells. This reduces front-side shading and supports higher light absorption. The design helps improve module efficiency.
Dual-Glass Protection: The module uses 2 mm glass on the front and back. This strengthens structural durability and helps the panel withstand harsh environmental exposure.
Performance Stability: The panel is engineered for stable operation from -40°C to 85°C. Its temperature coefficients help maintain output during high heat and variable weather.
Technical Specifications
| Brand | AIKO Energy |
| Model Number | AIKO-A610-MAH72Dw |
| Technology | N-type Back Contact |
| Cell Type | Monocrystalline |
| Maximum Power (Pmax) | 610 Wp |
| Voltage at Maximum Power (Vmpp) | 45 V |
| Current at Maximum Power (Impp) | 13.56 A |
| Open Circuit Voltage (Voc) | 54.34 V |
| Short Circuit Current (Isc) | 14.3 A |
| Module Efficiency | 23.6% |
| Operating Temperature Range | -40°C to 85°C |
| Temperature Coefficient of Pmax | -0.26%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Isc | 0.05%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Panel Dimensions | 2278 x 1134 x 30 mm |
| Weight | 32.5 kg |
| Cell Number | 144 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 Compatible |
| Cable Crossection | 4 mm² |
| Seller Name | Shanghai AIKO Energy Co., Ltd. |
| Country of Origin | China |
Certifications & Compliance
Certifications: IEC Class C fire rating, IP68 junction box protection, Class II protection class
Inverter Compatibility: Suitable for 1500V solar systems and MC4 compatible installations
Environmental: Operating temperature from -40°C to 85°C, low temperature coefficients, dual-glass durability
Warranty: 25 years of 90.6% output power and 30 years of 88.85% output power, with 0.37% total degradation rate
