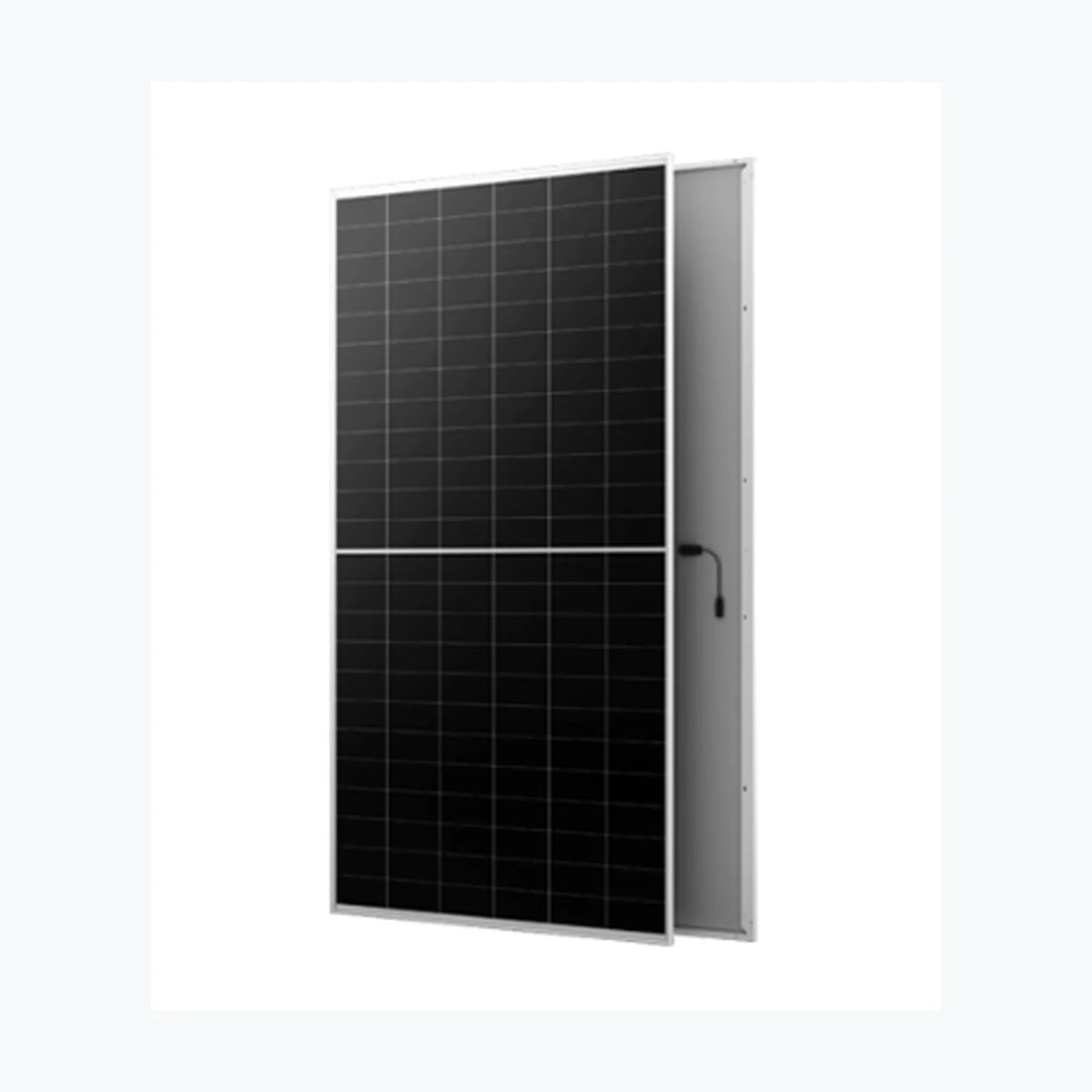

    AIKO AIKO-A620-MAE72Dw

    AIKO AIKO-A620-MAE72Dw

    $124.00 USD
    $124.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0590
    • Container price: $66,960.00 USD
    • Container qty: 720
    • Mpn: AIKO-A620-MAE72D
    • Odoo id: 21,101
    • Pallet price: $3,162.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A620-MAE72Dw Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 620 Wp Voltage at Maximum Power (Vmpp) 45.2 V Current at Maximum Power (Impp) 13.72 A Open Circuit Voltage (Voc) 54.57 V Short Circuit Current (Isc) 14.46 A Panel Efficiency 24 % Maximum Power (Pmax) 467 Wp Voltage at Maximum Power (Vmpp) 42.69 V Current at Maximum Power (Impp) 10.95 A Open Circuit Voltage (Voc) 51.53 V Short Circuit Current (Isc) 11.7 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 31.5 kg Cell Number 144 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Back Contact, N-type
      Power Range: 620 ~ 645 Wp
      Panel Efficiency: 24 ~ 25 %
      Weight: 31.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
