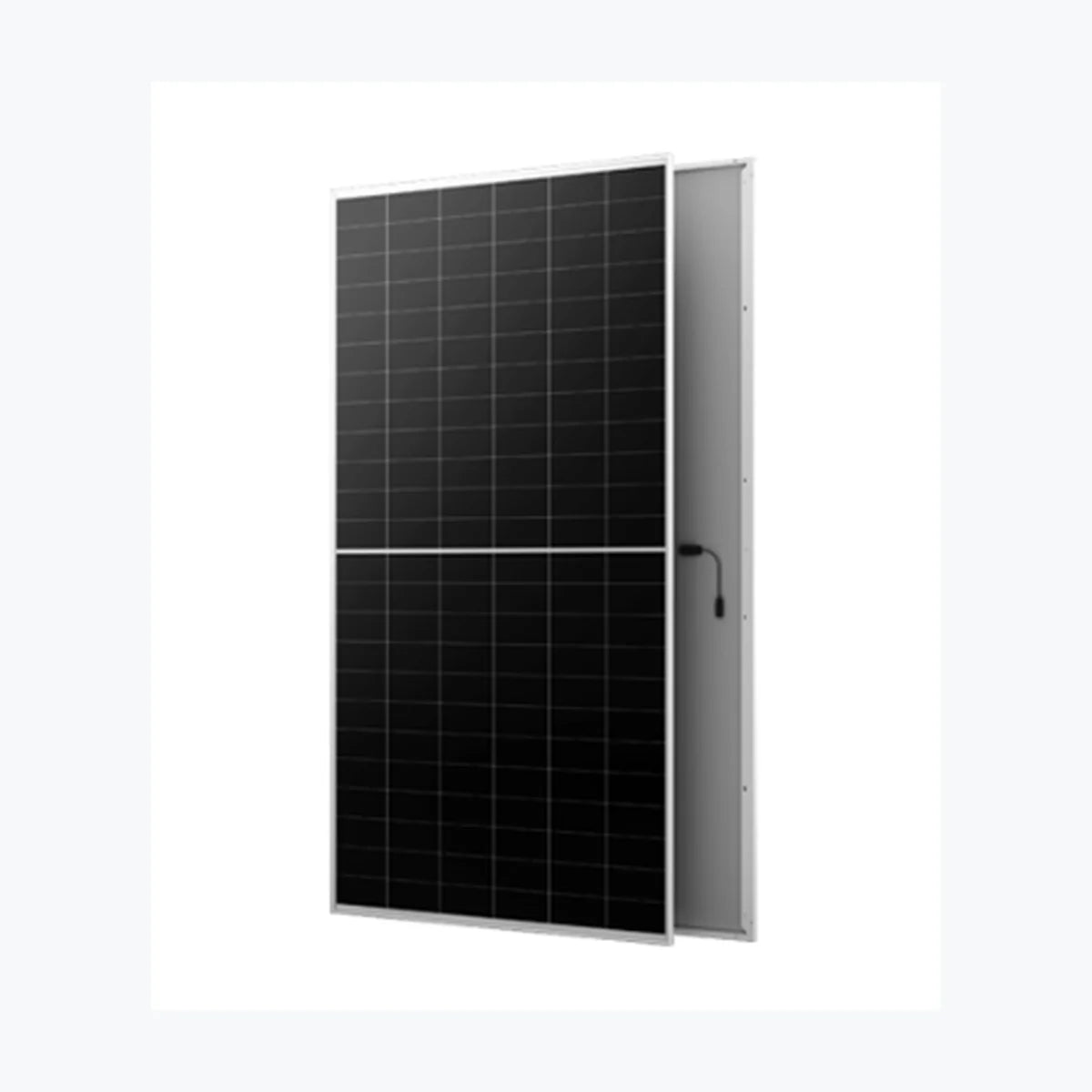

    AIKO AIKO-A625-MAH72Dw

    AIKO AIKO-A625-MAH72Dw

    $125.00 USD
    $125.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0595
    • Container price: $67,500.00 USD
    • Container qty: 720
    • Mpn: AIKO-A625-MAH72D
    • Odoo id: 21,119
    • Pallet price: $3,187.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A625-MAH72Dw Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 45.3 V Current at Maximum Power (Impp) 13.8 A Open Circuit Voltage (Voc) 54.7 V Short Circuit Current (Isc) 14.54 A Panel Efficiency 24.2 % Maximum Power (Pmax) 471 Wp Voltage at Maximum Power (Vmpp) 42.78 V Current at Maximum Power (Impp) 11.01 A Open Circuit Voltage (Voc) 51.66 V Short Circuit Current (Isc) 11.76 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32.5 kg Cell Number 144 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Back Contact, N-type
      Power Range: 610 ~ 630 Wp
      Panel Efficiency: 23.6 ~ 24.4 %
      Weight: 32.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
