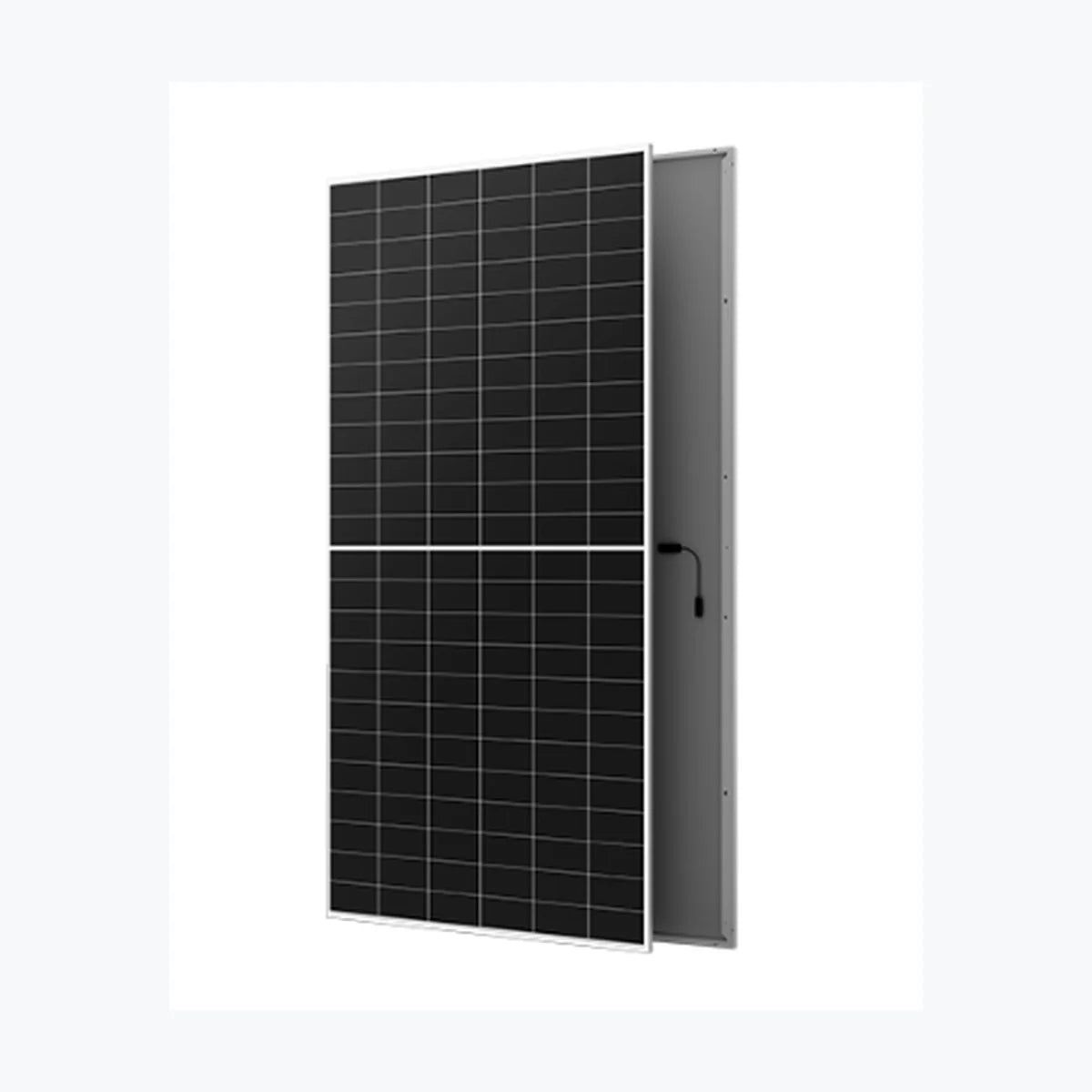

AIKO AIKO-A655-MDE72Mw
PayPal Pay in 4 interest-free payments of $32.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0611
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AIKO-A655-MDE72Mw Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 655 Wp Voltage at Maximum Power (Vmpp) 45.2 V Current at Maximum Power (Impp) 14.5 A Open Circuit Voltage (Voc) 54.5 V Short Circuit Current (Isc) 15.18 A Panel Efficiency 24.2 % Maximum Power (Pmax) 493 Wp Voltage at Maximum Power (Vmpp) 42.69 V Current at Maximum Power (Impp) 11.57 A Open Circuit Voltage (Voc) 51.47 V Short Circuit Current (Isc) 12.28 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 29 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer
Technology: Back Contact, N-type
Power Range: 655 ~ 680 Wp
Panel Efficiency: 24.2 ~ 25.2 %
Weight: 29 kg
Seller Name: Shanghai AIKO Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-0611 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
