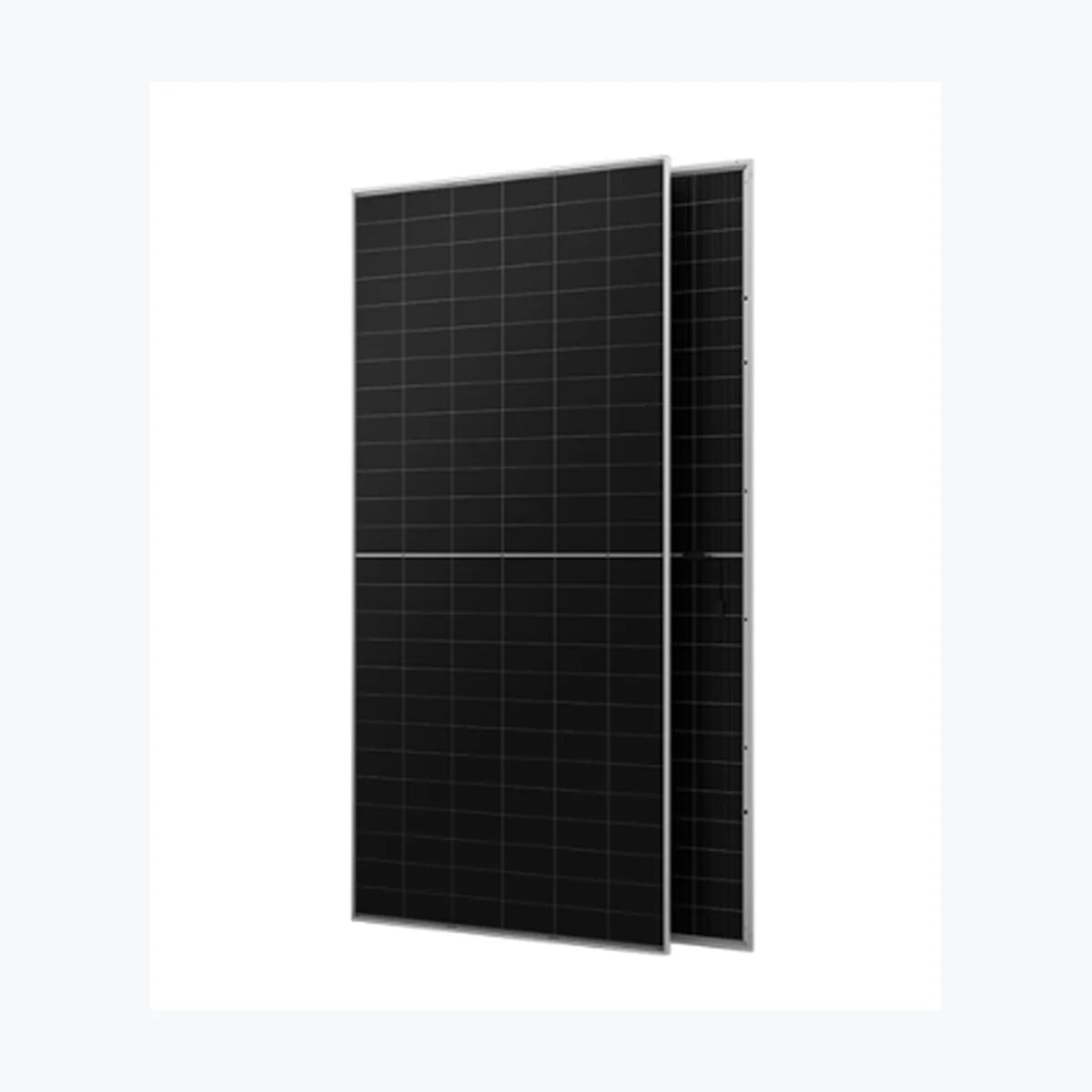

    AIKO AIKO-A660-MAH78Dw

    AIKO AIKO-A660-MAH78Dw

    $132.00 USD
    $132.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0612
    • Container price: $71,280.00 USD
    • Container qty: 720
    • Mpn: AIKO-A660-MAH78D
    • Odoo id: 17,680
    • Pallet price: $3,366.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A660-MAH78Dw Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 48.67 V Current at Maximum Power (Impp) 13.57 A Open Circuit Voltage (Voc) 58.8 V Short Circuit Current (Isc) 14.28 A Panel Efficiency 23.6 % Maximum Power (Pmax) 497 Wp Voltage at Maximum Power (Vmpp) 45.97 V Current at Maximum Power (Impp) 10.82 A Open Circuit Voltage (Voc) 55.53 V Short Circuit Current (Isc) 11.55 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 34.7 kg Cell Number 156 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Bifacial, Back Contact, N-type
      Power Range: 655 ~ 680 Wp
      Panel Efficiency: 23.4 ~ 24.3 %
      Weight: 34.7 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
