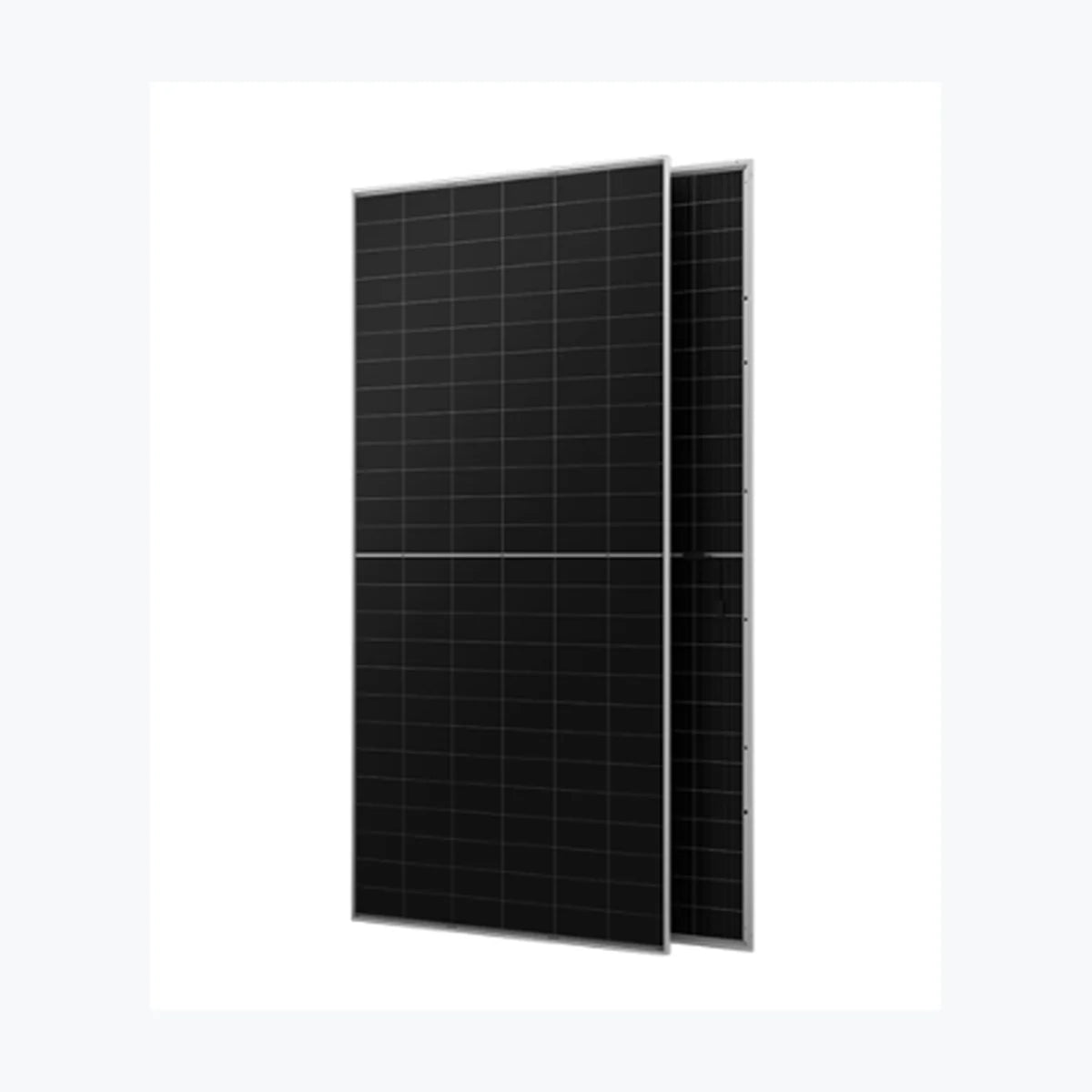

    AIKO AIKO-A680-MAE78Dw

    AIKO AIKO-A680-MAE78Dw

    $136.00 USD
    $136.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-25819
    • Container price: $73,440.00 USD
    • Container qty: 720
    • Mpn: AIKO-A680-MAE78D
    • Odoo id: 28,681
    • Pallet price: $3,468.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A680-MAE78Dw Product Warranty 15 Years Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 680 Wp Voltage at Maximum Power (Vmpp) 48.91 V Current at Maximum Power (Impp) 13.91 A Open Circuit Voltage (Voc) 59.04 V Short Circuit Current (Isc) 14.56 A Panel Efficiency 24.3 % Maximum Power (Pmax) 512 Wp Voltage at Maximum Power (Vmpp) 46.19 V Current at Maximum Power (Impp) 11.1 A Open Circuit Voltage (Voc) 55.75 V Short Circuit Current (Isc) 11.78 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 34.5 kg Cell Number 156 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length

      Technology: Back Contact, N-type
      Power Range: 675 ~ 700 Wp
      Panel Efficiency: 24.1 ~ 25 %
      Weight: 34.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
