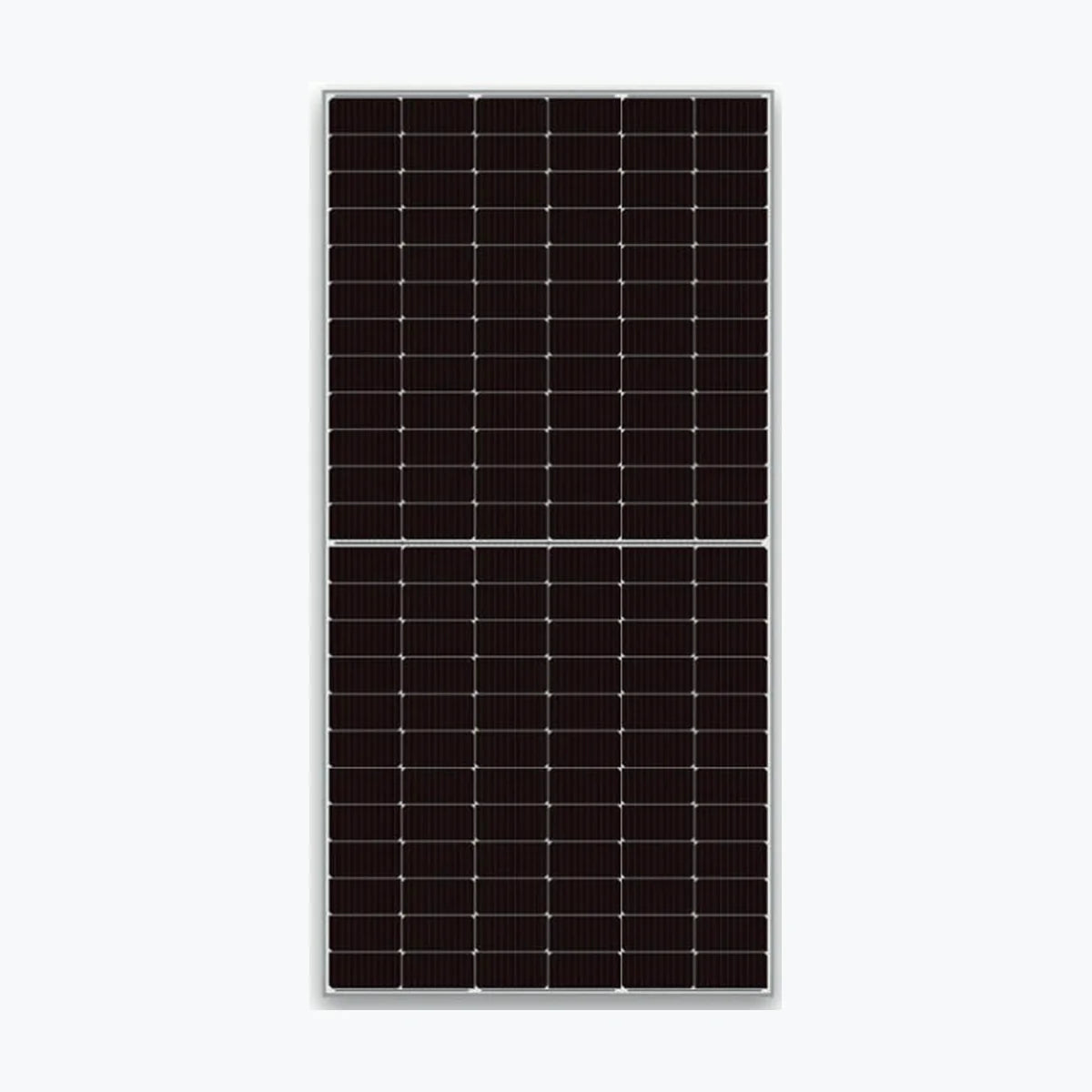

    Alfa Solar Enerji A10S144M 545

    Alfa Solar Enerji A10S144M 545

    $109.00 USD
    $109.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0902
    • Container price: $58,860.00 USD
    • Container qty: 720
    • Odoo id: 21,139
    • Pallet price: $2,779.50 USD
    • Pallet qty: 30
    • Unit price: $109.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. A10S144M 545 Product Warranty 10 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +0.91 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 42.41 V Current at Maximum Power (Impp) 12.89 A Open Circuit Voltage (Voc) 49.68 V Short Circuit Current (Isc) 13.58 A Panel Efficiency 20.98 % Maximum Power (Pmax) 417 Wp Voltage at Maximum Power (Vmpp) 39.73 V Current at Maximum Power (Impp) 10.45 A Open Circuit Voltage (Voc) 46.54 V Short Circuit Current (Isc) 10.87 A Temperature 41.2±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.311 %/°C Temperature Coefficient of Voc -0.237 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2295x1132x42 mm Weight 29 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Cla

      Technology: PERC
      Power Range: 545 ~ 555 Wp
      Panel Efficiency: 20.98 ~ 21.4 %
      Weight: 29 kg
      Seller Name: Alfa Solar Enerji İnş. San. ve Tic. A.Ş.
      Country: Turkey
