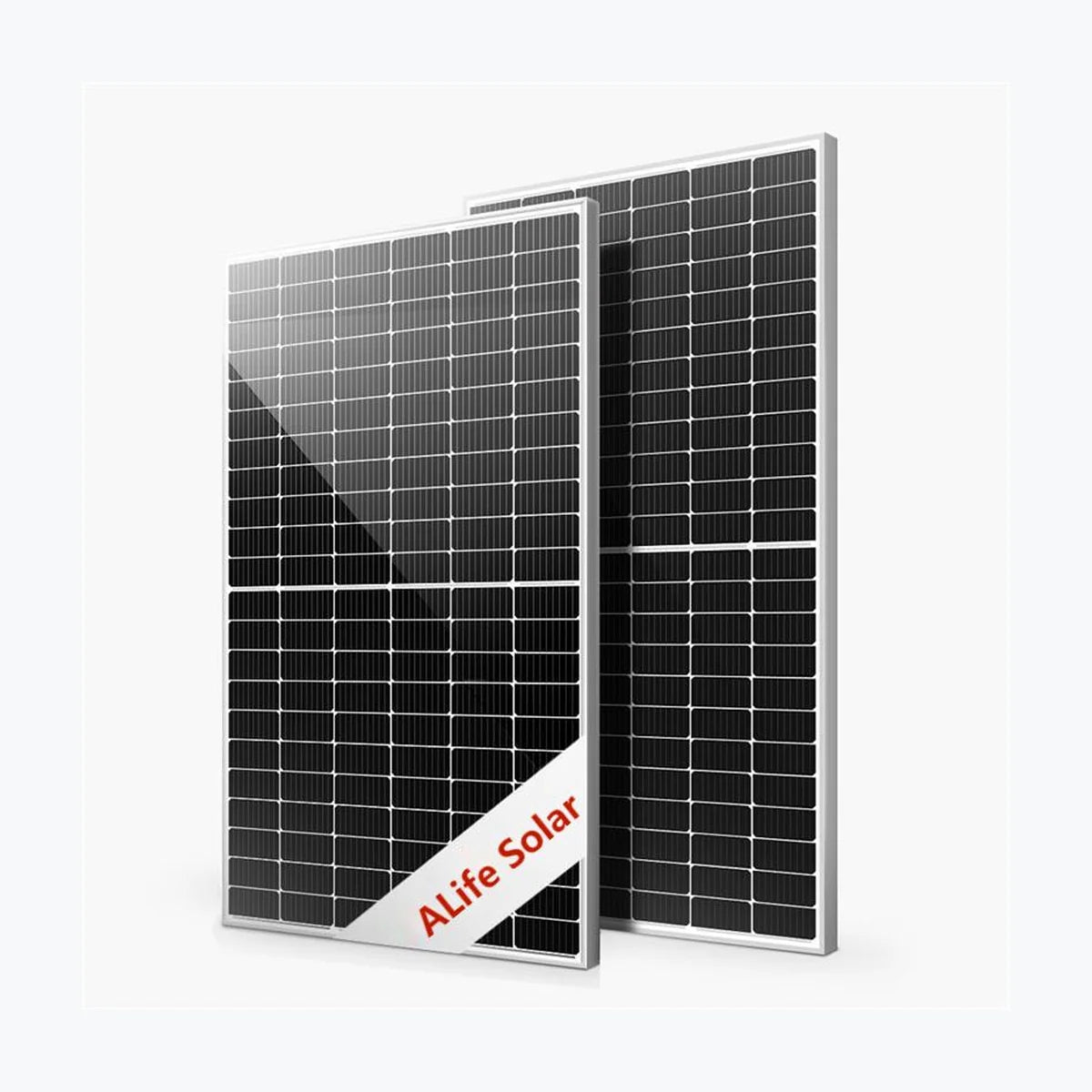

    ALife Solar AL-60HPH-380

    ALife Solar AL-60HPH-380

    $76.00 USD
    $76.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-60HPH-380
    • Container price: $41,040.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-60HPH-380
    • Odoo id: 36,103
    • Pallet price: $1,938.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Model No. AL-60HPH-380 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 380 Wp Voltage at Maximum Power (Vmpp) 34.8 V Current at Maximum Power (Impp) 10.92 A Open Circuit Voltage (Voc) 41.3 V Short Circuit Current (Isc) 11.69 A Panel Efficiency 20.9 % Maximum Power (Pmax) 283.8 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 8.76 A Open Circuit Voltage (Voc) 38.7 V Short Circuit Current (Isc) 9.45 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1755x1038x35 mm Weight 19.5 kg Cell Number 120 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufact

      Technology: PERC
      Power Range: 355 ~ 385 Wp
      Panel Efficiency: 19.5 ~ 21.1 %
      Weight: 19.5 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
