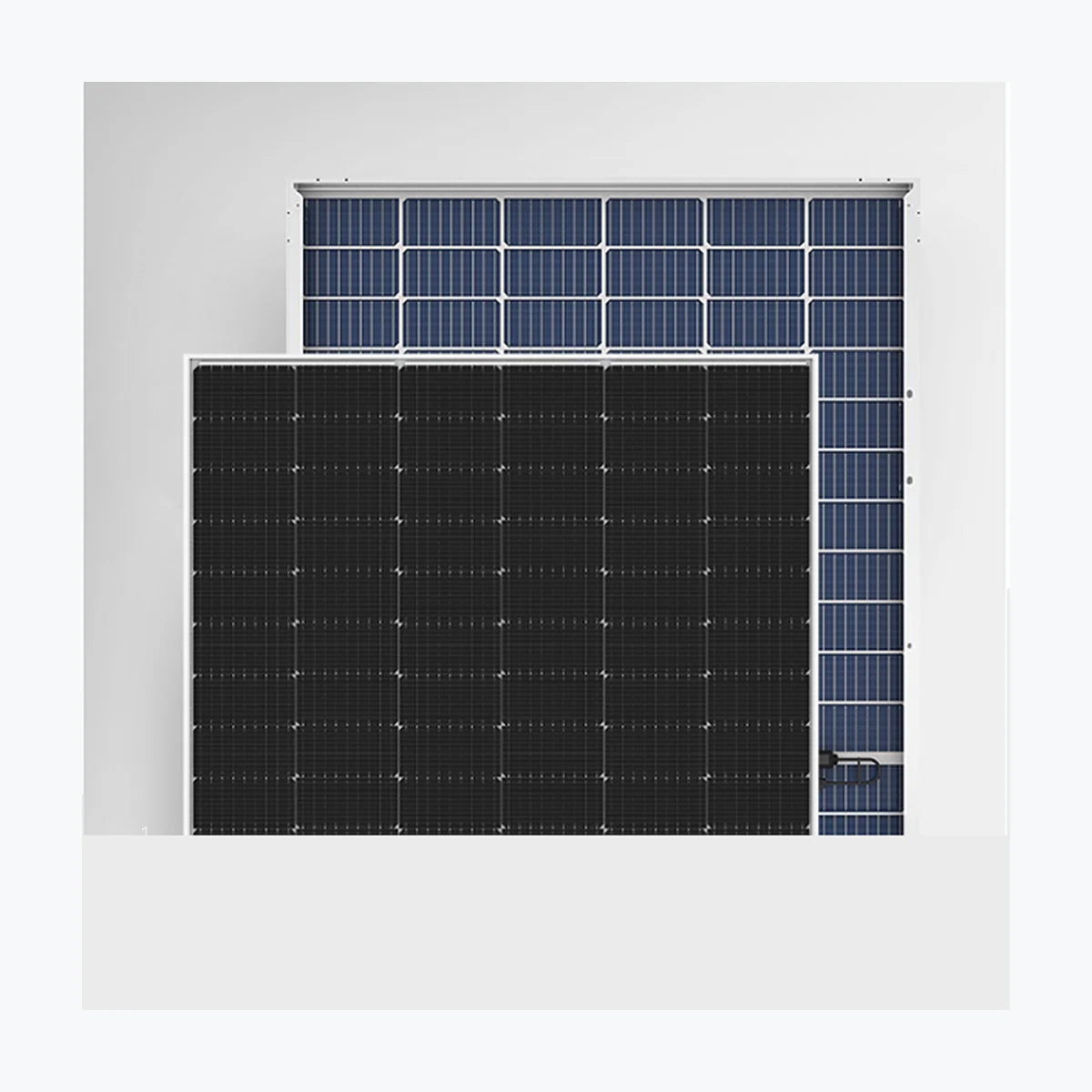

    ALife Solar AL-66HBD-500

    ALife Solar AL-66HBD-500

    $100.00 USD
    $100.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-66HBD-500
    • Container price: $54,000.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-66HBD-500
    • Odoo id: 33,524
    • Pallet price: $2,550.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Model No. AL-66HBD-500 Power Warranty 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 38.38 V Current at Maximum Power (Impp) 13.03 A Open Circuit Voltage (Voc) 45.55 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 21.3 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.248 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2073x1133x35 mm Weight 30.6 kg Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 475 ~ 500 Wp
      Panel Efficiency: 20.2 ~ 21.3 %
      Weight: 30.6 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
