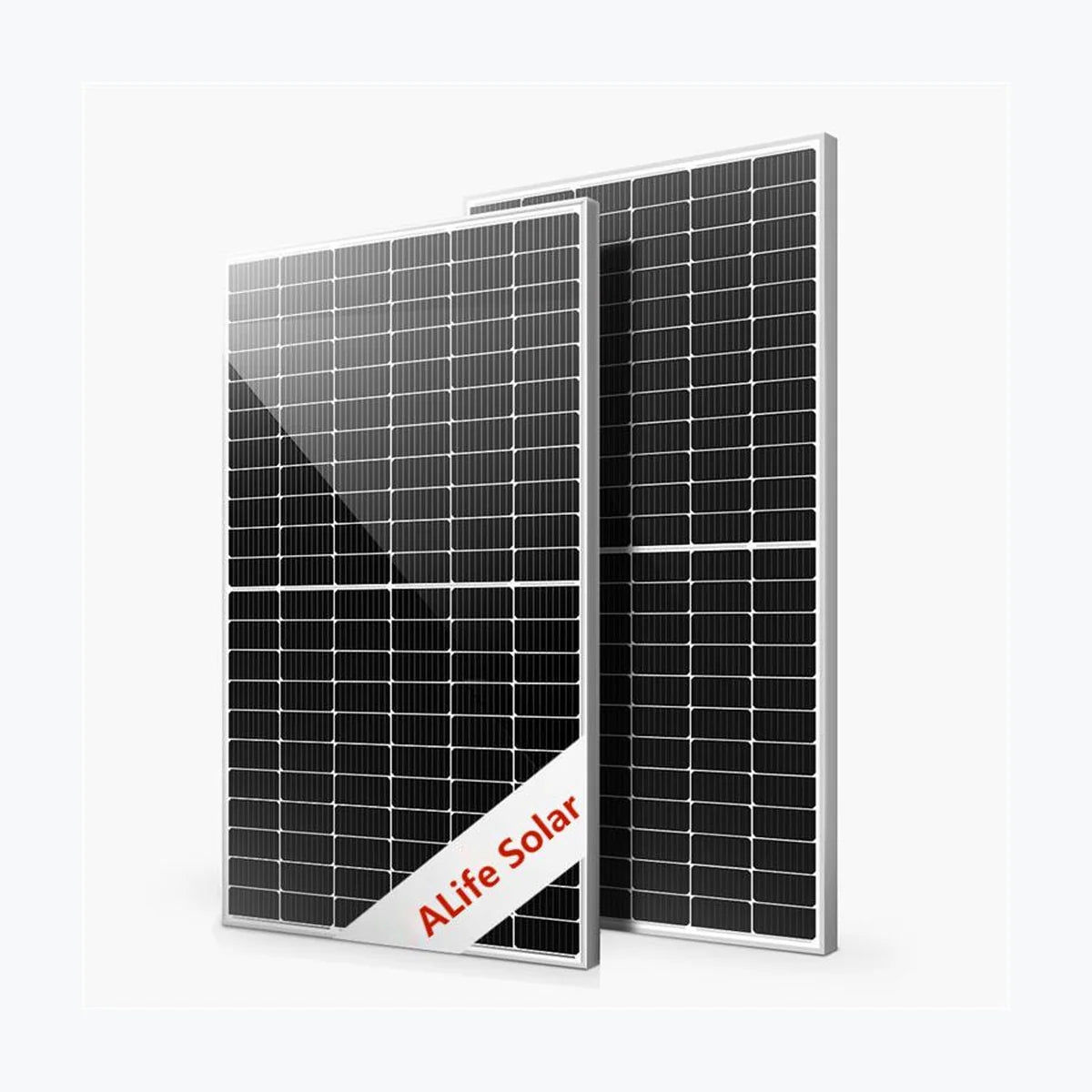

    ALife Solar AL-66HPH-425

    ALife Solar AL-66HPH-425

    $85.00 USD
    $85.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-66HPH-425
    • Container price: $45,900.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-66HPH-425
    • Odoo id: 35,536
    • Pallet price: $2,167.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Model No. AL-66HPH-425 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 425 Wp Voltage at Maximum Power (Vmpp) 38.6 V Current at Maximum Power (Impp) 11.02 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 11.81 A Panel Efficiency 21.3 % Maximum Power (Pmax) 317.4 Wp Voltage at Maximum Power (Vmpp) 35.94 V Current at Maximum Power (Impp) 8.83 A Open Circuit Voltage (Voc) 42.94 V Short Circuit Current (Isc) 9.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1924x1038x35 mm Weight 20 kg Cell Number 132 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 405 ~ 425 Wp
      Panel Efficiency: 20.3 ~ 21.3 %
      Weight: 20 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
