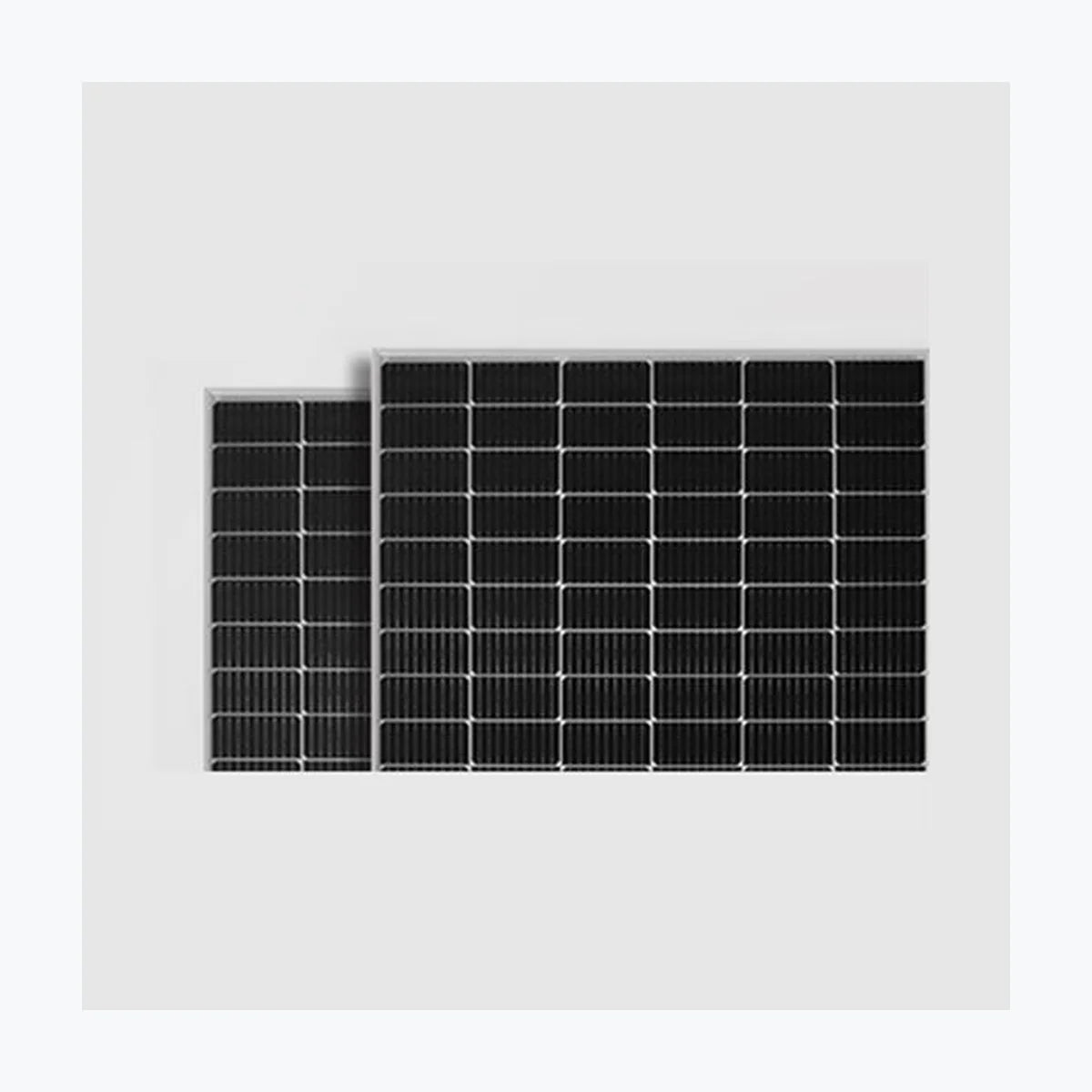

    ALife Solar AL-72HPH-455

    ALife Solar AL-72HPH-455

    $91.00 USD
    $91.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-72HPH-455
    • Container price: $49,140.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-72HPH-455
    • Odoo id: 34,827
    • Pallet price: $2,320.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Model No. AL-72HPH-455 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 41.7 V Current at Maximum Power (Impp) 10.92 A Open Circuit Voltage (Voc) 49.5 V Short Circuit Current (Isc) 11.66 A Panel Efficiency 20.9 % Maximum Power (Pmax) 339.8 Wp Voltage at Maximum Power (Vmpp) 38.8 V Current at Maximum Power (Impp) 8.75 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 9.43 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 23.3 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 430 ~ 460 Wp
      Panel Efficiency: 19.8 ~ 21.2 %
      Weight: 23.3 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
