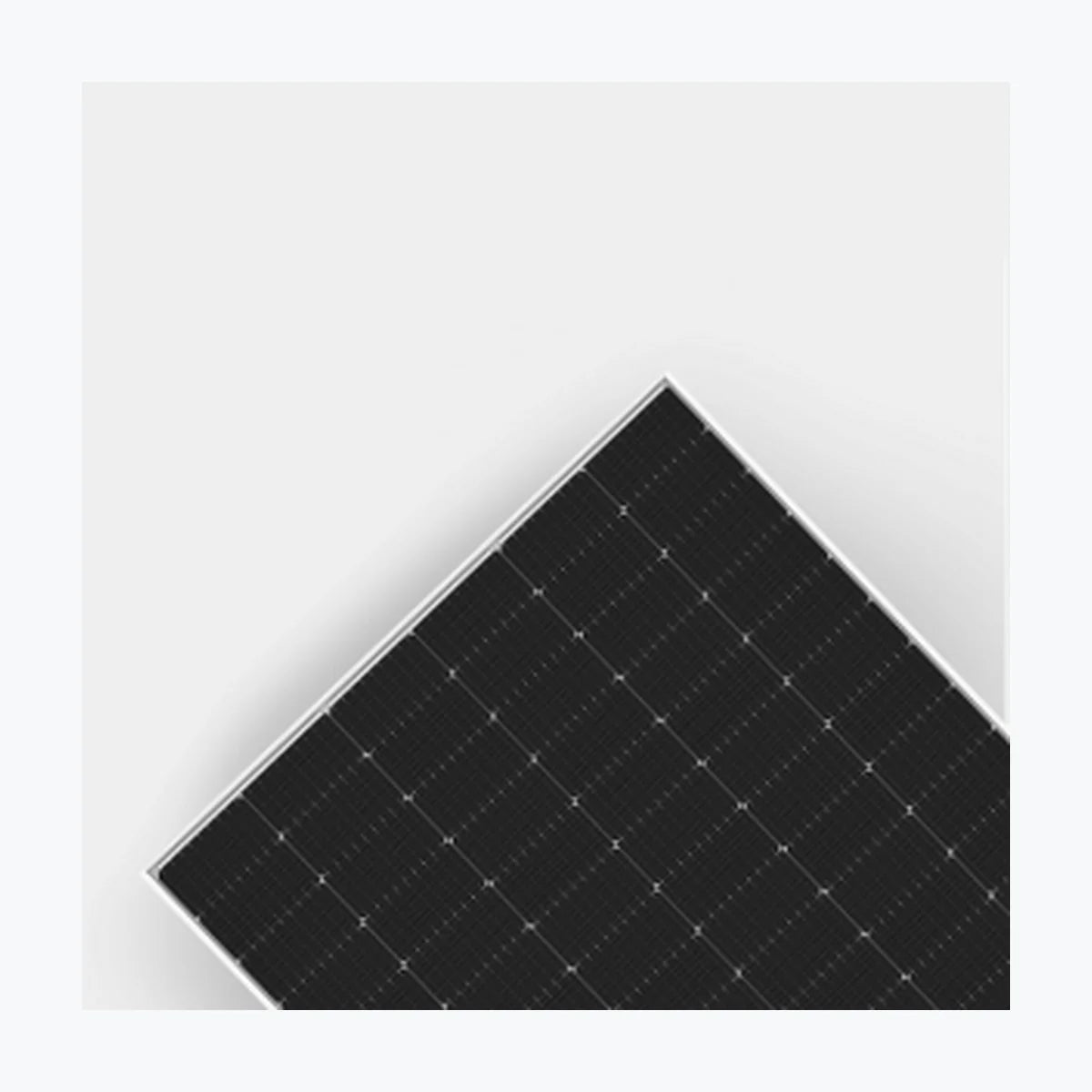

    ALife Solar AL-72HPH-545

    ALife Solar AL-72HPH-545

    $109.00 USD
    $109.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-72HPH-545
    • Container price: $58,860.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-72HPH-545
    • Odoo id: 31,533
    • Pallet price: $2,779.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AL-72HPH-545 Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.8 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 49.65 V Short Circuit Current (Isc) 13.92 A Panel Efficiency 21.3 % Maximum Power (Pmax) 407 Wp Voltage at Maximum Power (Vmpp) 38.92 V Current at Maximum Power (Impp) 10.46 A Open Circuit Voltage (Voc) 46.55 V Short Circuit Current (Isc) 11.25 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.270 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2256x1133x35 mm Weight 27.2 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossectio

      Technology: PERC
      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.7 ~ 21.5 %
      Weight: 27.2 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
