Alpex Solar 560
PayPal Pay in 4 interest-free payments of $28.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0926
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.

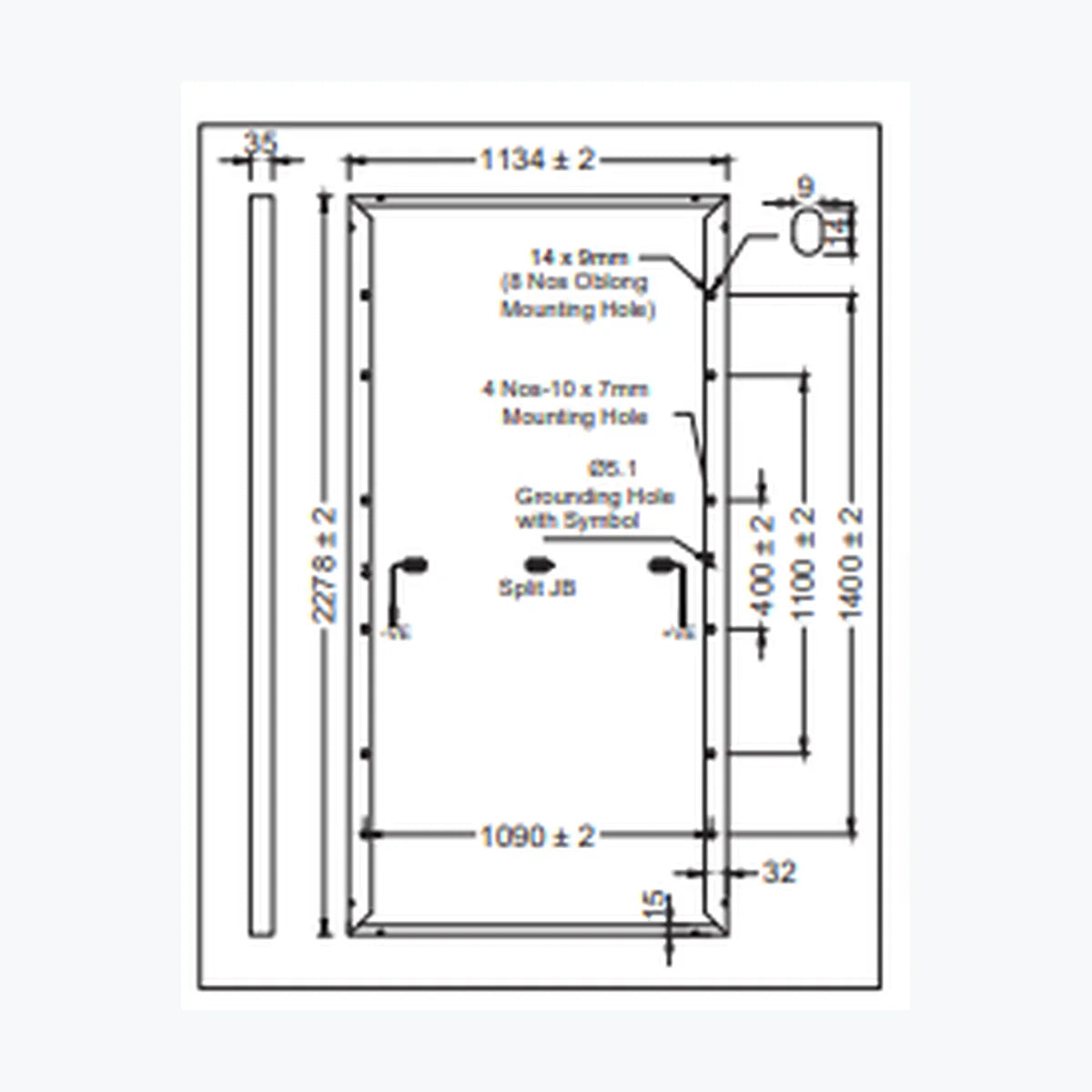

Type Monocrystalline Model No. 560 Product Warranty 10 Years Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 42.3 V Current at Maximum Power (Impp) 13.24 A Open Circuit Voltage (Voc) 50.6 V Short Circuit Current (Isc) 13.91 A Panel Efficiency 21.64 % Temperature 45±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 28.5 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 560 ~ 590 Wp
Panel Efficiency: 21.64 ~ 22.8 %
Weight: 28.5 kg
Seller Name: Alpex Solar Limited
Country: India
| SKU | PES-SPS-SOL-0926 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
