• Alps Solar 580W Solar Panel 144 Cells Bifacial ALPS72D30T-TP-580 Wholesale 31 panels per pallet
1 1

In Stock

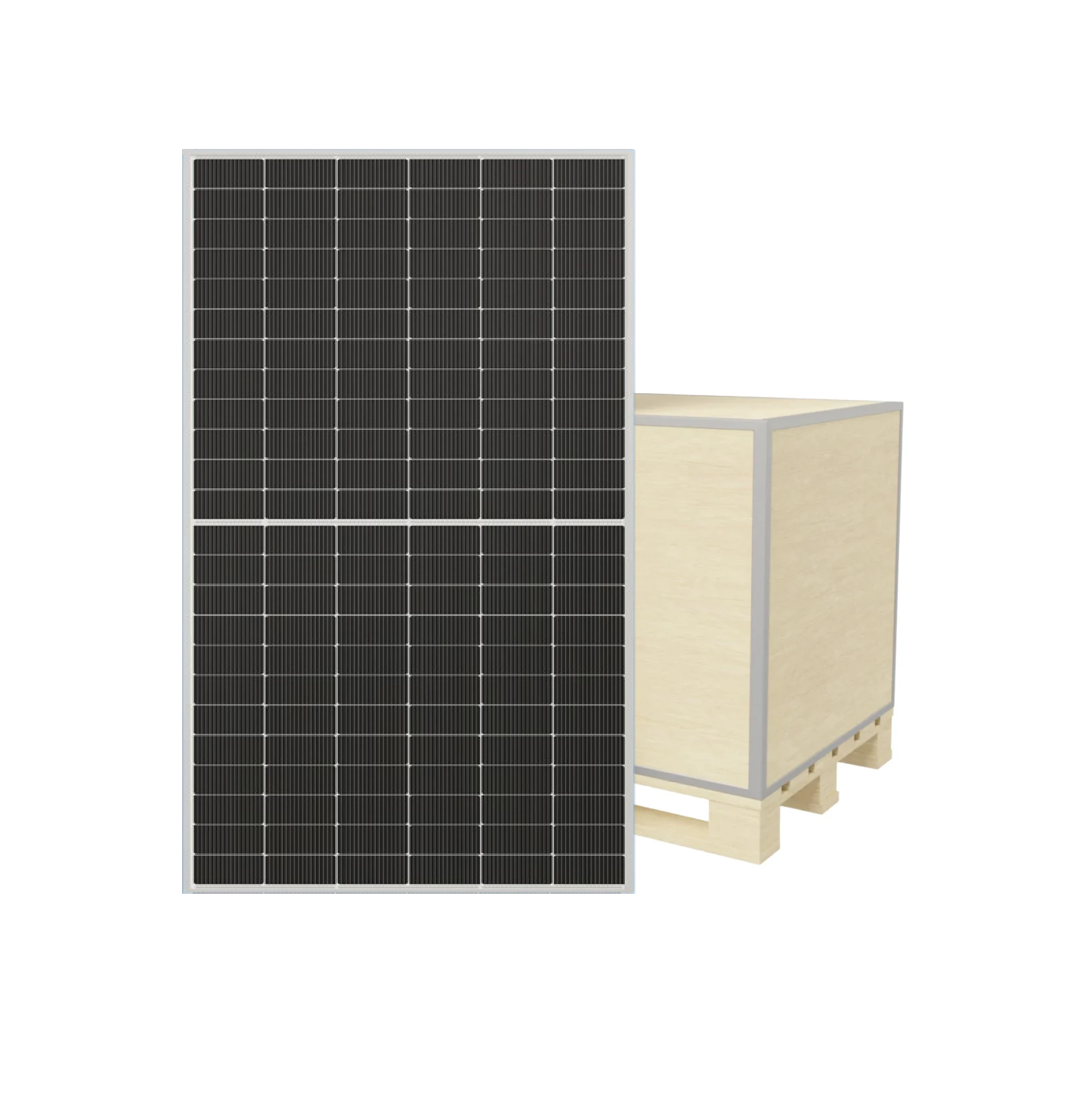

Alps Solar 580W Solar Panel 144 Cells Bifacial ALPS72D30T-TP-580 Wholesale 31 panels per pallet (min 2 pallets)

Alps Solar 580W Solar Panel 144 Cells Bifacial ALPS72D30T-TP-580 Wholesale 31 panels per pallet (min 2 pallets)

$156.57 USD
$156.57 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0195
  • Documents:

    Datasheet
  • Height: 1.38
  • Length: 89.7
  • Width: 44.65
View full details

Product Description

  • The Alps Solar ALPS72D30T‑TP‑580 is a high-efficiency bifacial solar module built with N‑Type mono‑PERC half-cut technology and dual-glass durability.

    Rated Power: 580 W • Efficiency: 22.44 %

    Electrical Specs: Voc ≈ 52.5 V; Vmp ≈ 42.7 V; Imp ≈ 13.58 A; Isc ≈ 14.29 A • Power Tolerance: 0 ~ +3 %

    Max System Voltage: 1500 V DC • Fuse: 25 A • Connectors: MC4‑compatible (QC4.10)


    Mechanical Load Ratings: 5400 Pa (snow/front), 2400 Pa (wind/rear); Operating Temp: −40 °F to +185 °F (−40 °C to +85 °C)

    Bifacial gain: up to ~30% additional energy from rear-side irradiance

    Warranty: 25‑year product warranty; 30‑year linear performance guarantee (≤1% first-year degradation; ≤0.40%/yr; retaining ≥87.4% output at 30 years)

    Pallet Packaging: 31 panels per pallet (≈18 kW per pallet); minimum order: 2 pallets
