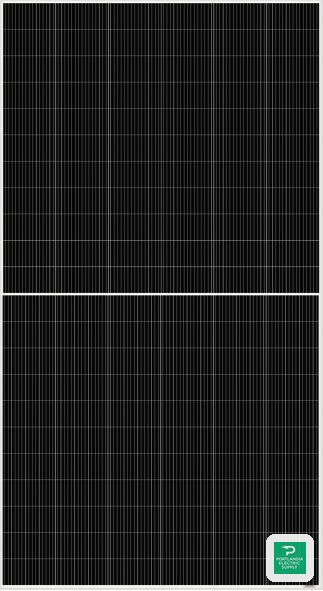

Amerisolar AS-7M108N-BHC-435W
Amerisolar AS-7M108N-BHC-435W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1055
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-7M108N-BHC-435W Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.6 V Current at Maximum Power (Impp) 13.35 A Open Circuit Voltage (Voc) 38.5 V Short Circuit Current (Isc) 14.25 A Panel Efficiency 22.3 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 30.5 V Current at Maximum Power (Impp) 10.82 A Open Circuit Voltage (Voc) 36.8 V Short Circuit Current (Isc) 11.43 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 29 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction
Technology: Bifacial, TOPCon, N-type
Power Range: 410 ~ 440 Wp
Panel Efficiency: 21 ~ 22.5 %
Weight: 29 kg
Seller Name: Amerisolar EU
Country: China -
