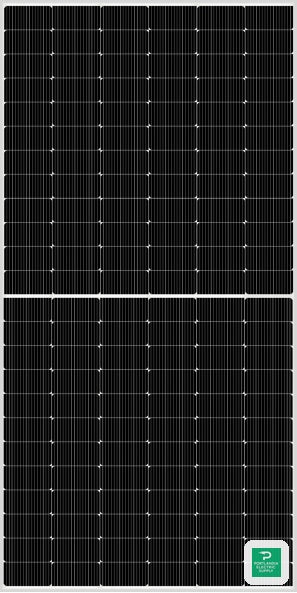

Amerisolar AS-7M144N-BHC-555W
Amerisolar AS-7M144N-BHC-555W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1083
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-7M144N-BHC-555W Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 555 Wp Voltage at Maximum Power (Vmpp) 42 V Current at Maximum Power (Impp) 13.22 A Open Circuit Voltage (Voc) 50.2 V Short Circuit Current (Isc) 13.99 A Panel Efficiency 21.48 % Maximum Power (Pmax) 417 Wp Voltage at Maximum Power (Vmpp) 39.5 V Current at Maximum Power (Impp) 10.56 A Open Circuit Voltage (Voc) 47.7 V Short Circuit Current (Isc) 11.33 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box Diodes 3 Junction
Technology: Bifacial, TOPCon, N-type
Power Range: 550 ~ 575 Wp
Panel Efficiency: 21.28 ~ 22.25 %
Weight: 32 kg
Seller Name: Amerisolar EU
Country: China -
