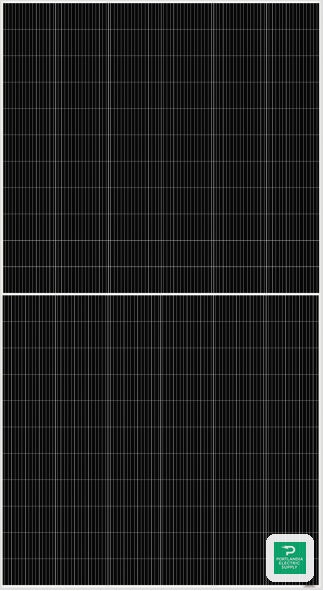

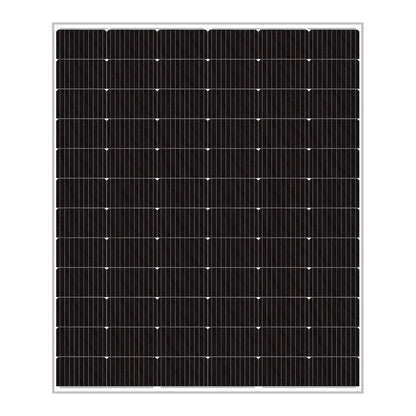

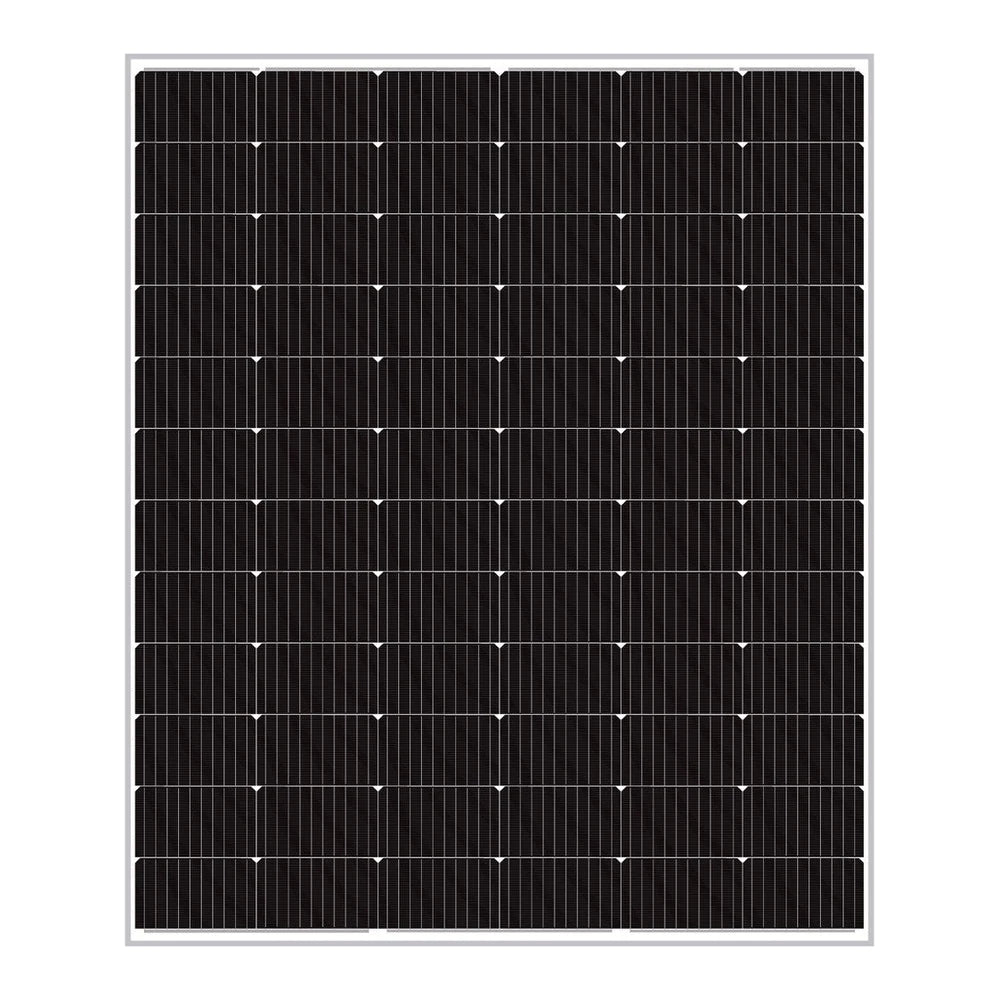

Amerisolar AS-8M120N-BHC-625
Amerisolar AS-8M120N-BHC-625
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1101
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-8M120N-BHC-625 Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 35.9 V Current at Maximum Power (Impp) 17.41 A Open Circuit Voltage (Voc) 43.1 V Short Circuit Current (Isc) 18.36 A Panel Efficiency 22.1 % Maximum Power (Pmax) 473 Wp Voltage at Maximum Power (Vmpp) 33.9 V Current at Maximum Power (Impp) 13.93 A Open Circuit Voltage (Voc) 40.8 V Short Circuit Current (Isc) 14.83 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 35.3 kg Cell Size 210×210 mm Cell Number 120 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Alum
Technology: Bifacial, TOPCon, N-type
Power Range: 615 ~ 635 Wp
Panel Efficiency: 21.7 ~ 22.4 %
Weight: 35.3 kg
Seller Name: Amerisolar EU
Country: China -
