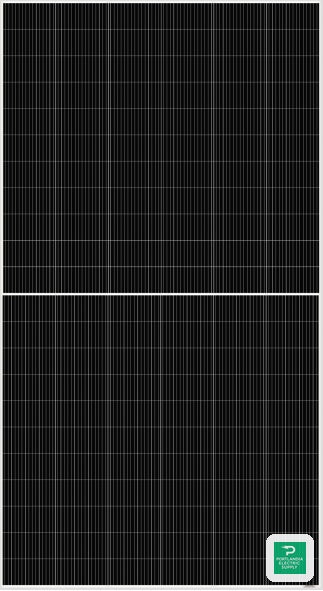

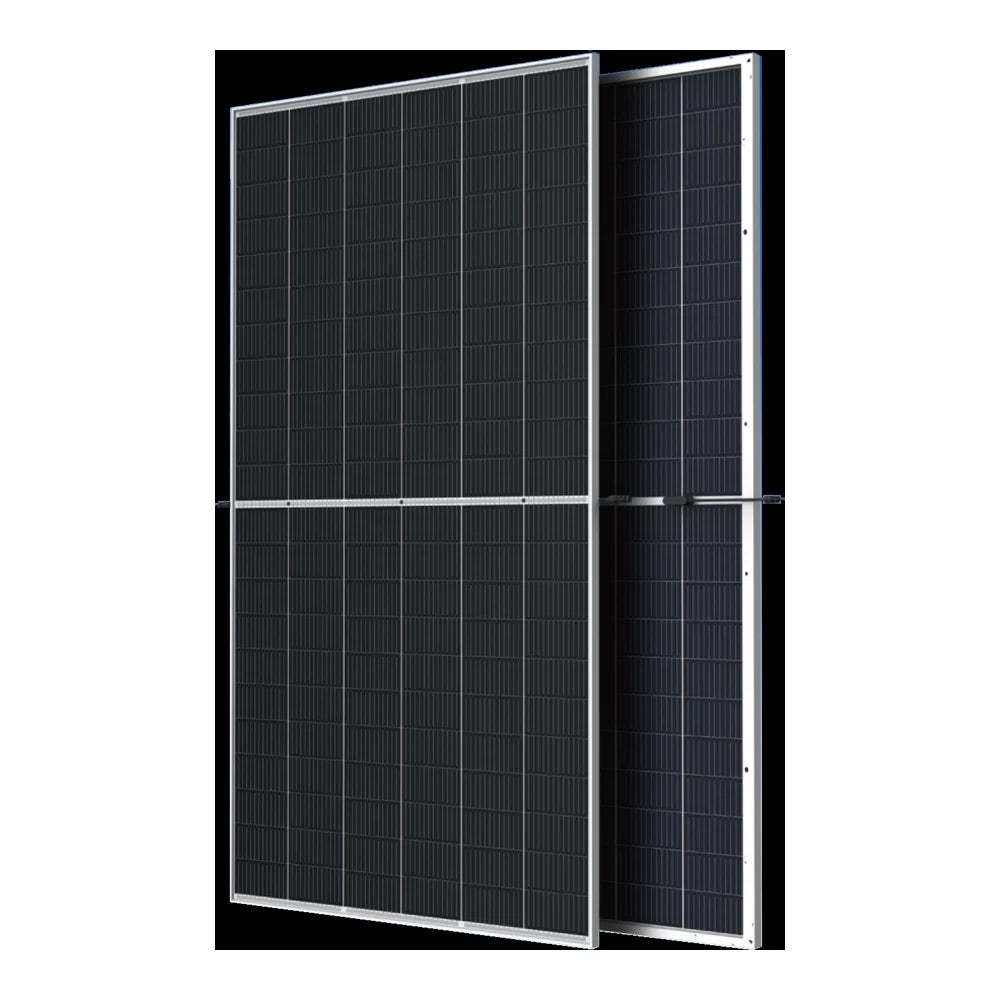

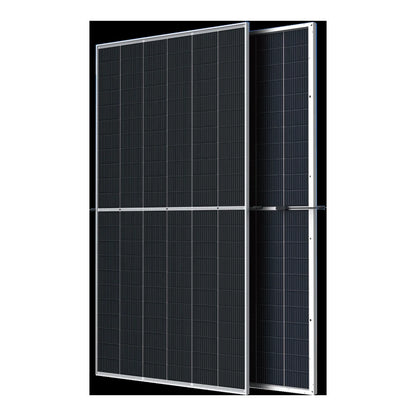

Amerisolar AS-8M132N-BHC-685
Amerisolar AS-8M132N-BHC-685
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1112
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-8M132N-BHC-685 Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 685 Wp Voltage at Maximum Power (Vmpp) 39.4 V Current at Maximum Power (Impp) 17.39 A Open Circuit Voltage (Voc) 47.3 V Short Circuit Current (Isc) 18.34 A Panel Efficiency 22.1 % Maximum Power (Pmax) 518 Wp Voltage at Maximum Power (Vmpp) 37.2 V Current at Maximum Power (Impp) 13.91 A Open Circuit Voltage (Voc) 44.8 V Short Circuit Current (Isc) 14.79 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38.7 kg Cell Size 210×210 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box D
Technology: Bifacial, TOPCon, N-type
Power Range: 675 ~ 700 Wp
Panel Efficiency: 21.7 ~ 22.7 %
Weight: 38.7 kg
Seller Name: Amerisolar EU
Country: China -
