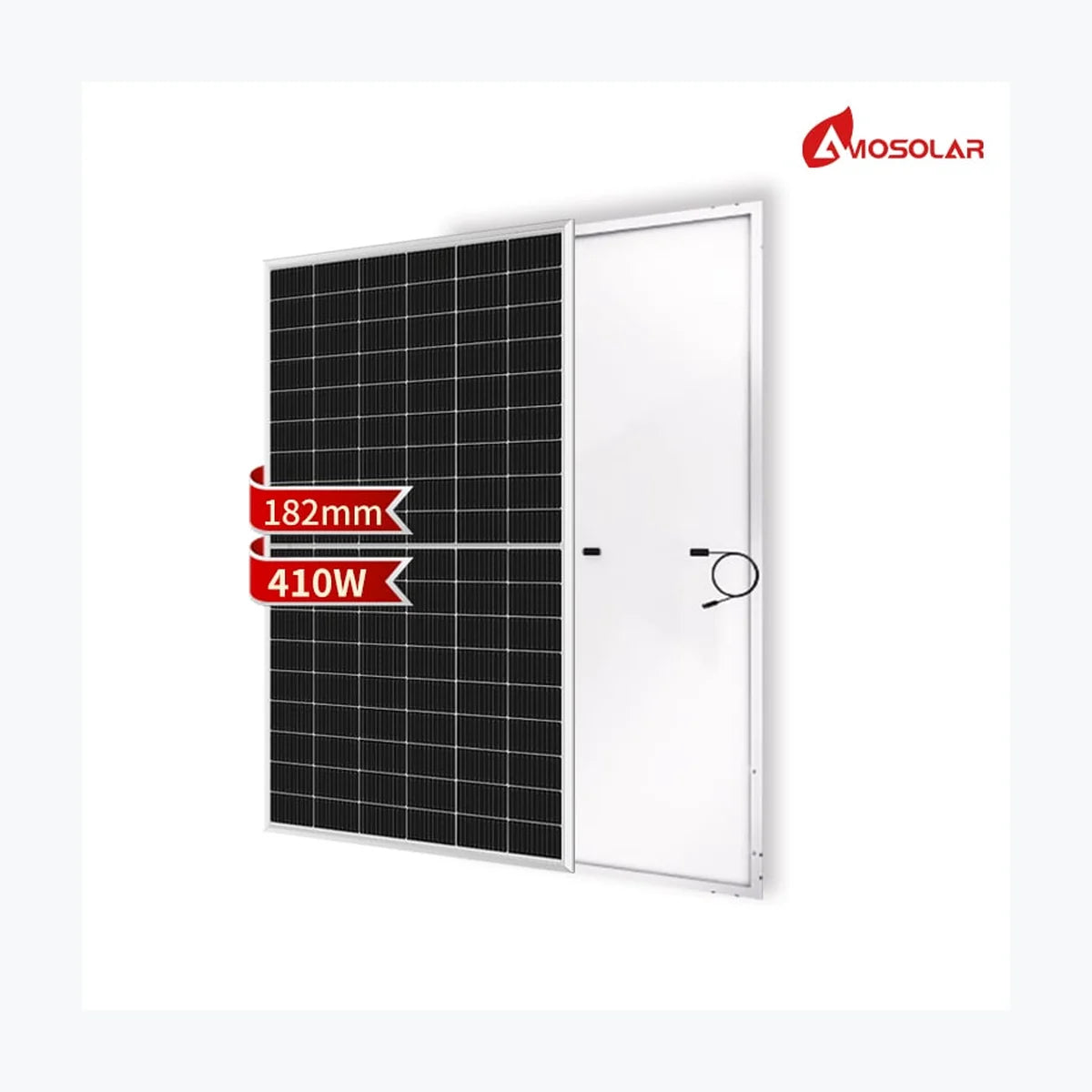

    AmoSolar AS405M10-108

    AmoSolar AS405M10-108

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1163
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS405M10-108 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 405 Wp Voltage at Maximum Power (Vmpp) 31.25 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 39.09 V Short Circuit Current (Isc) 13.35 A Panel Efficiency 20.74 % Maximum Power (Pmax) 305.1 Wp Voltage at Maximum Power (Vmpp) 29 V Current at Maximum Power (Impp) 10.52 A Open Circuit Voltage (Voc) 34.67 V Short Circuit Current (Isc) 11.1 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 21 kg Cell Number 108 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF D

      Technology: PERC
      Power Range: 390 ~ 420 Wp
      Panel Efficiency: 19.97 ~ 21.51 %
      Weight: 21 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
