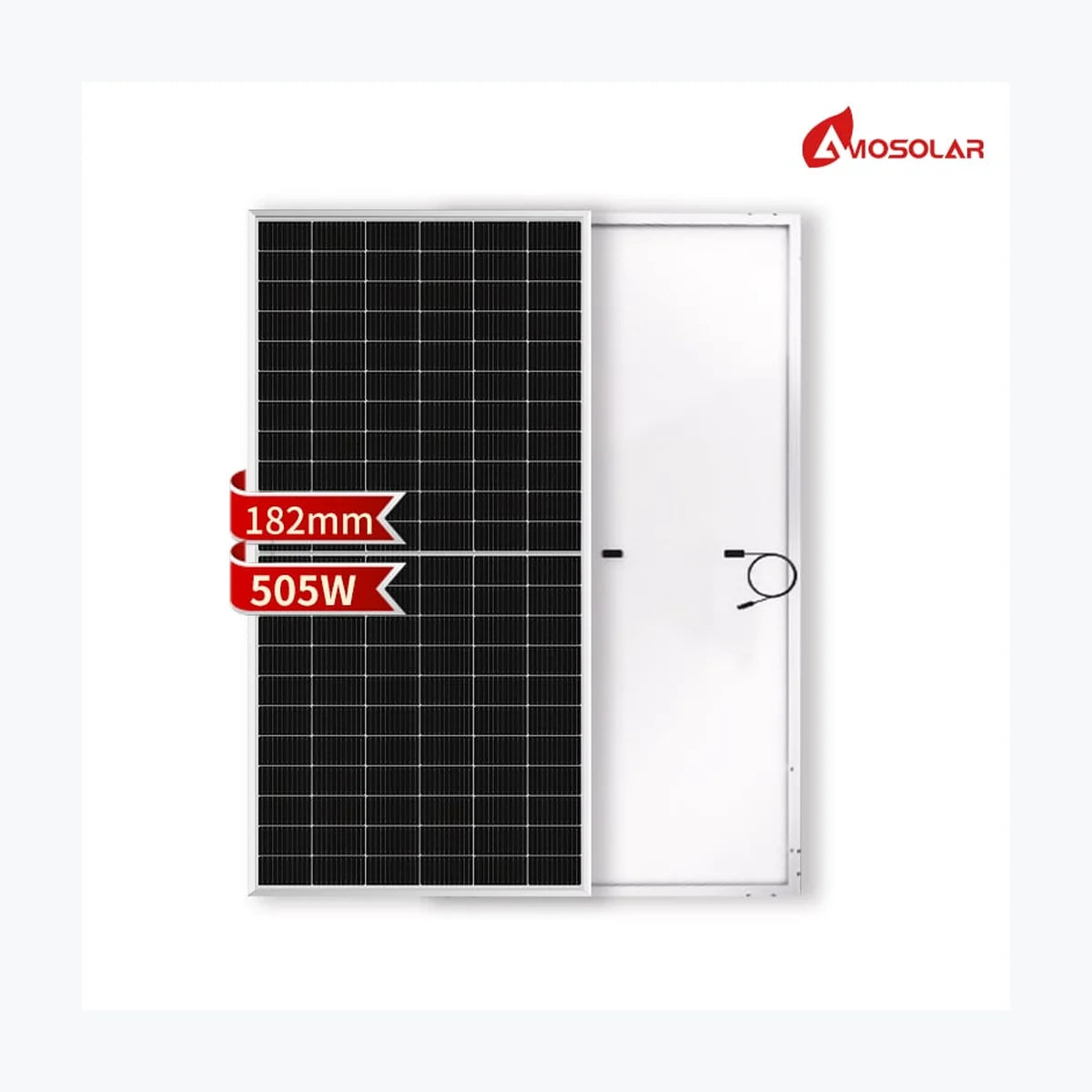

    AmoSolar AS505M10-132

    AmoSolar AS505M10-132

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1196
    • Container price: $37.80 USD
    • Container qty: 720
    • Pallet price: $1.78 USD
    • Pallet qty: 30
    • Unit price: $0.07 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS505M10-132 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 505 Wp Voltage at Maximum Power (Vmpp) 38.9 V Current at Maximum Power (Impp) 12.99 A Open Circuit Voltage (Voc) 47.98 V Short Circuit Current (Isc) 13.45 A Panel Efficiency 21.27 % Maximum Power (Pmax) 380.4 Wp Voltage at Maximum Power (Vmpp) 35.51 V Current at Maximum Power (Impp) 10.71 A Open Circuit Voltage (Voc) 42.87 V Short Circuit Current (Isc) 11.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 24.5 kg Cell Number 132 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's P

      Power Range: 485 ~ 515 Wp
      Panel Efficiency: 20.42 ~ 21.69 %
      Weight: 24.5 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
