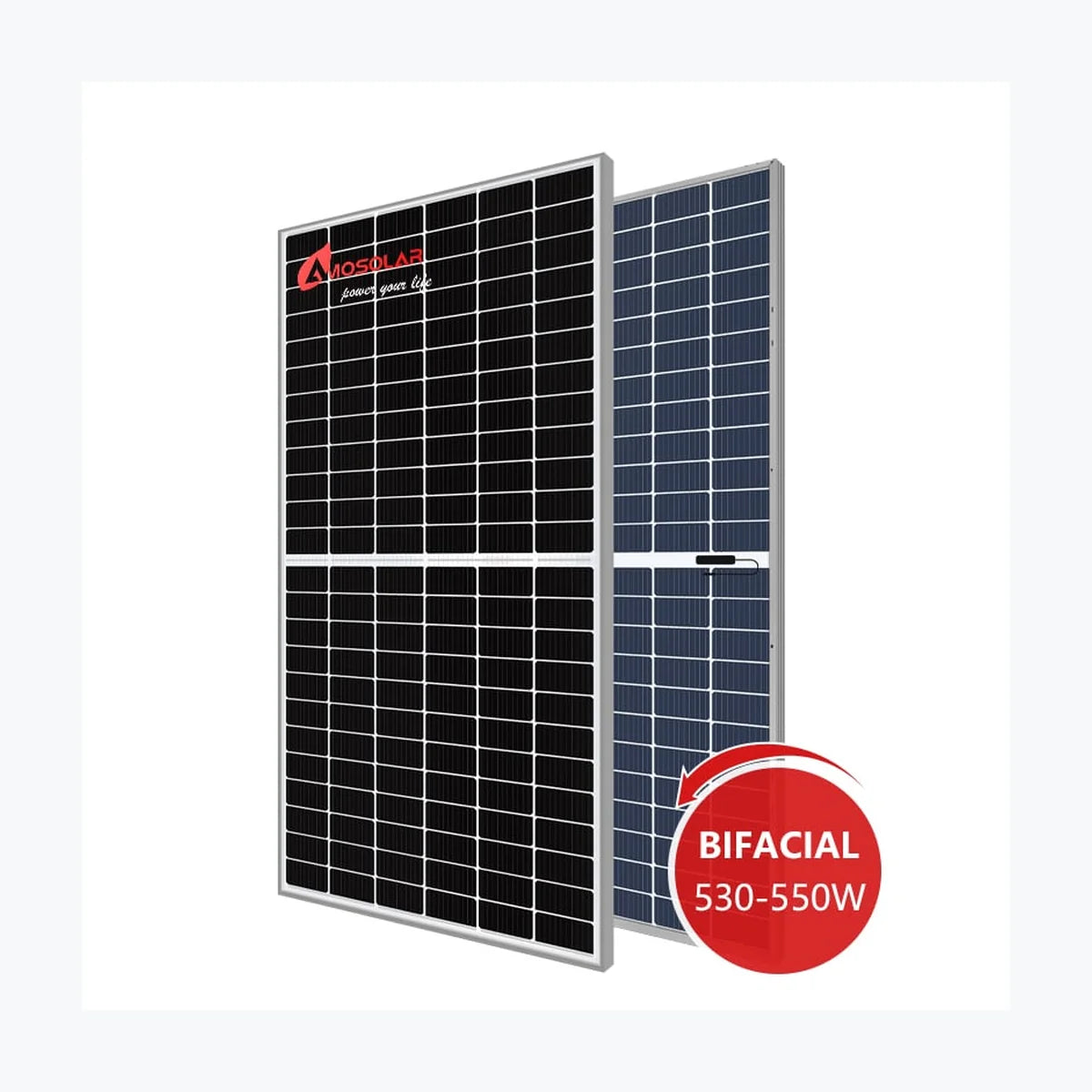

    AmoSolar AS550M10-144B

    AmoSolar AS550M10-144B

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1210
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS550M10-144B Product Warranty 12 Years Power Warranty 10 Years of 93.95 %, 30 Years of 84.95 % Total Degradation Rate ⏳ 0.5 % Maximum Power (Pmax) 550 Wp Voltage at Maximum Power (Vmpp) 41.7 V Current at Maximum Power (Impp) 13.2 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 14 A Panel Efficiency 21.28 % Maximum Power (Pmax) 412 Wp Voltage at Maximum Power (Vmpp) 39.1 V Current at Maximum Power (Impp) 10.55 A Open Circuit Voltage (Voc) 46.9 V Short Circuit Current (Isc) 11.29 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2279x1134x30 mm Weight 32.1 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datash

      Technology: Bifacial, PERC
      Power Range: 530 ~ 550 Wp
      Panel Efficiency: 20.5 ~ 21.28 %
      Weight: 32.1 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
