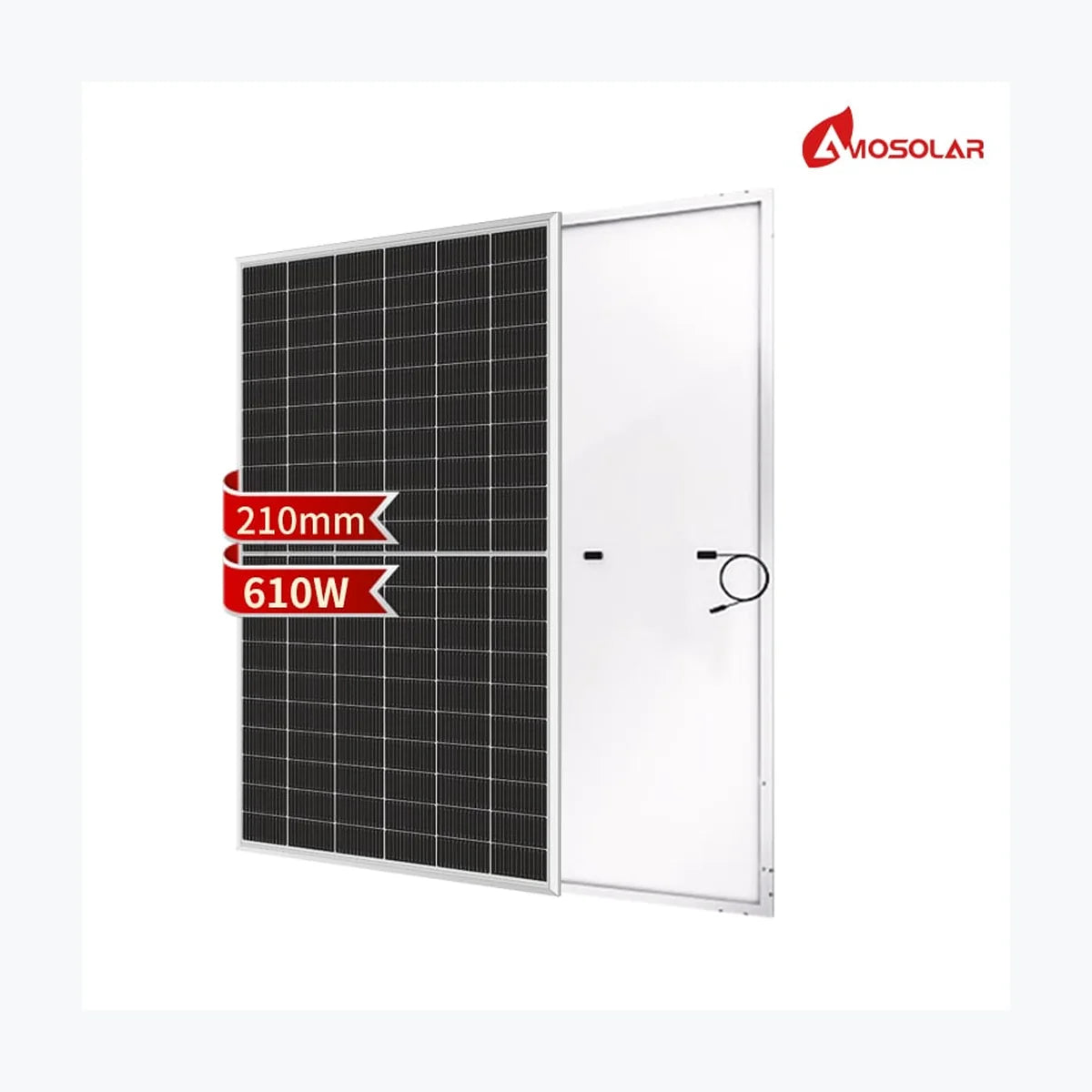

    AmoSolar AS595G12-120

    AmoSolar AS595G12-120

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1222
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS595G12-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 595 Wp Voltage at Maximum Power (Vmpp) 34.6 V Current at Maximum Power (Impp) 17.21 A Open Circuit Voltage (Voc) 41.8 V Short Circuit Current (Isc) 18.11 A Panel Efficiency 21.02 % Maximum Power (Pmax) 446.4 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 13.78 A Open Circuit Voltage (Voc) 38.6 V Short Circuit Current (Isc) 14.88 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.340 %/°C Temperature Coefficient of Voc -0.250 %/°C Temperature Coefficient of Isc 0.040 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30.9 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.9 kg Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's

      Power Range: 580 ~ 615 Wp
      Panel Efficiency: 20.49 ~ 21.73 %
      Weight: 30.9 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
