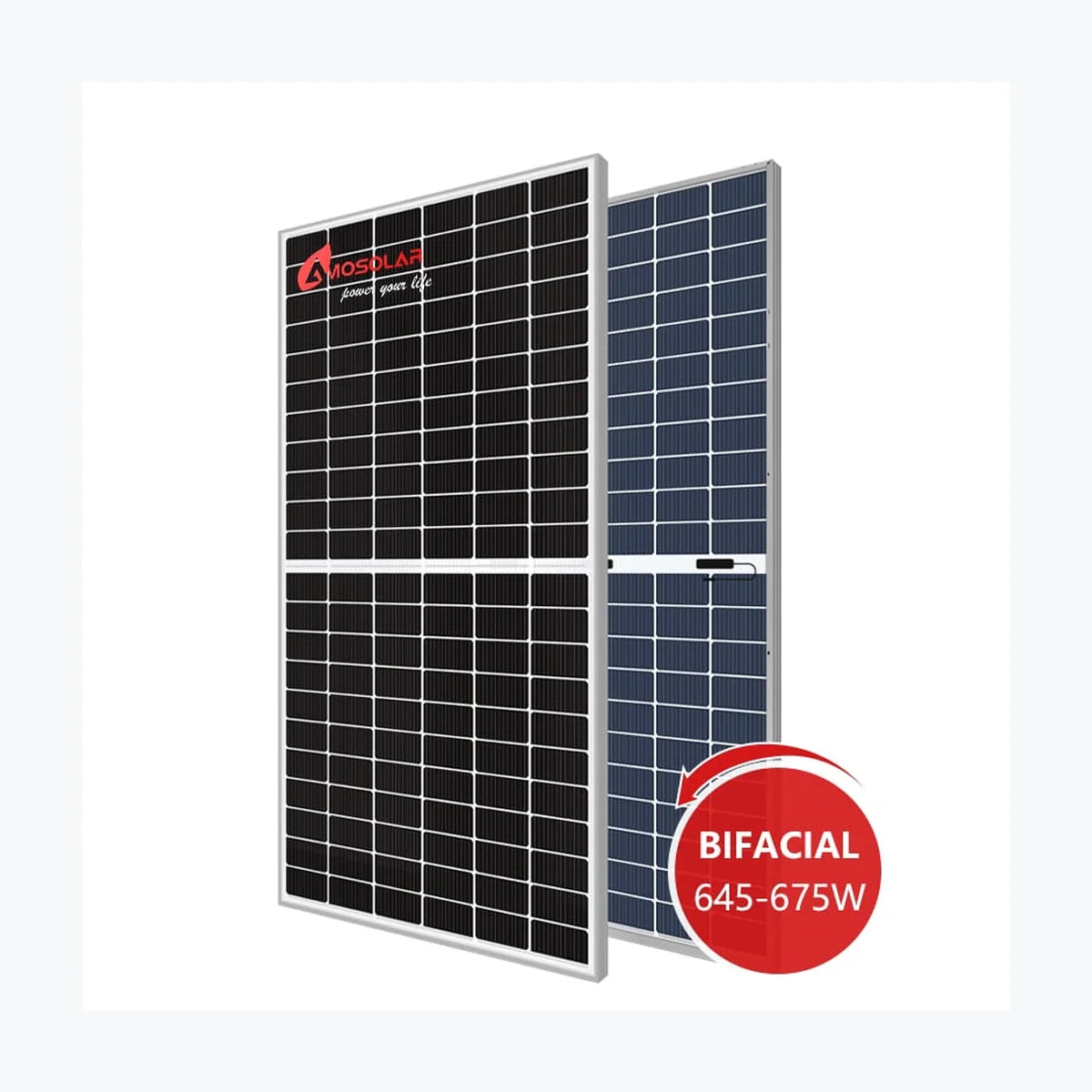

    AmoSolar AS650G12-132B

    AmoSolar AS650G12-132B

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1230
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS650G12-132B Product Warranty 30 Years Power Warranty 12 Years of 92 %, 30 Years of 83 % Total Degradation Rate ⏳ 0.57 % Maximum Power (Pmax) 650 Wp Voltage at Maximum Power (Vmpp) 37.4 V Current at Maximum Power (Impp) 17.38 A Open Circuit Voltage (Voc) 45.2 V Short Circuit Current (Isc) 18.46 A Panel Efficiency 20.9 % Maximum Power (Pmax) 492 Wp Voltage at Maximum Power (Vmpp) 34.9 V Current at Maximum Power (Impp) 14.09 A Open Circuit Voltage (Voc) 42.6 V Short Circuit Current (Isc) 14.85 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.040 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38.7 kg Cell Number 132 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datashe

      Technology: Bifacial, PERC
      Power Range: 645 ~ 675 Wp
      Panel Efficiency: 20.7 ~ 21.7 %
      Weight: 38.7 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
