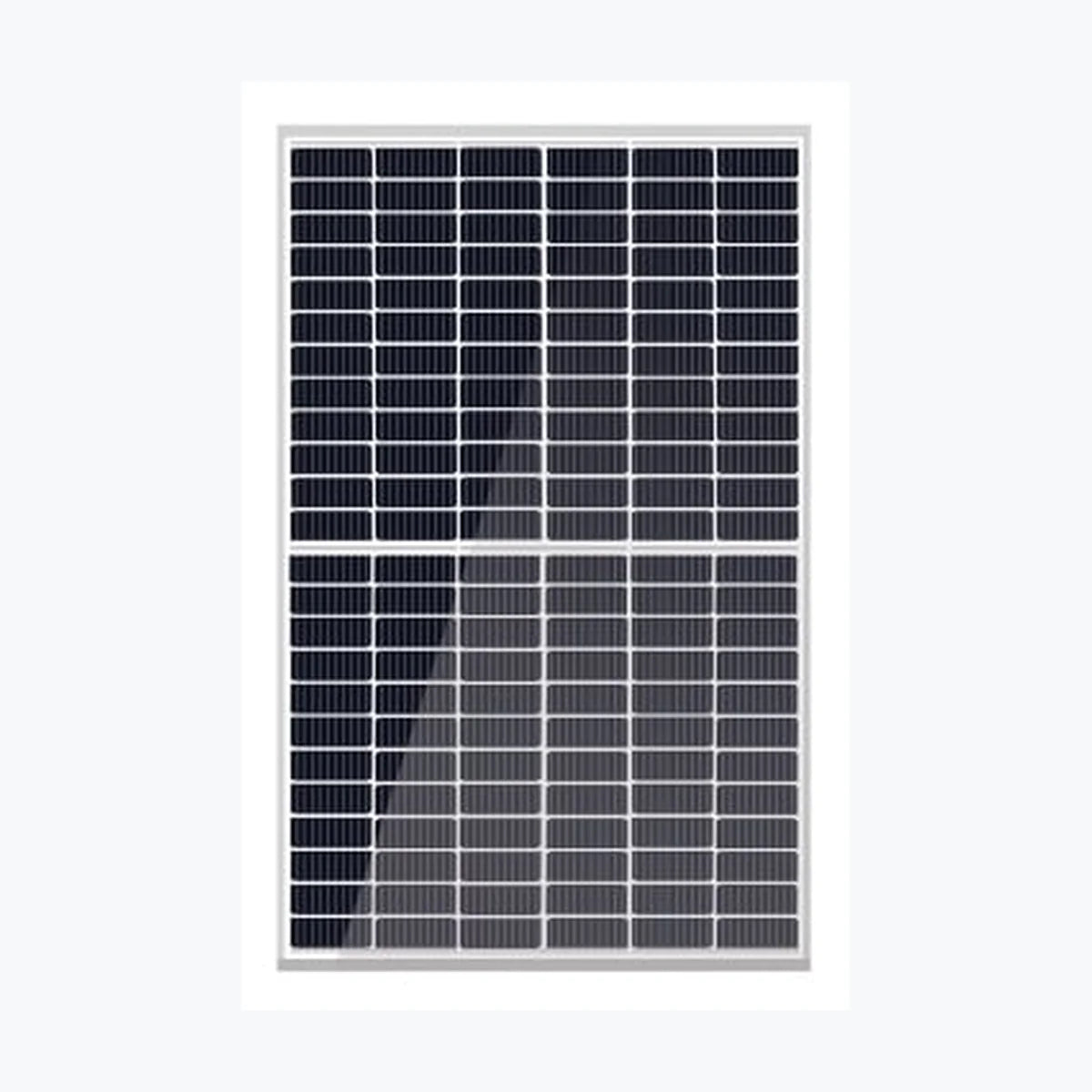

    Aoli Solar AL525M10

    Aoli Solar AL525M10

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1375
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AL525M10 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 41.15 V Current at Maximum Power (Impp) 12.76 A Open Circuit Voltage (Voc) 49.15 V Short Circuit Current (Isc) 13.65 A Panel Efficiency 20.3 % Maximum Power (Pmax) 397 Wp Voltage at Maximum Power (Vmpp) 38.36 V Current at Maximum Power (Impp) 10.35 A Open Circuit Voltage (Voc) 46.05 V Short Circuit Current (Isc) 10.97 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 28.6 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer

      Power Range: 525 ~ 550 Wp
      Panel Efficiency: 20.3 ~ 21.3 %
      Weight: 28.6 kg
      Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
      Country: China
