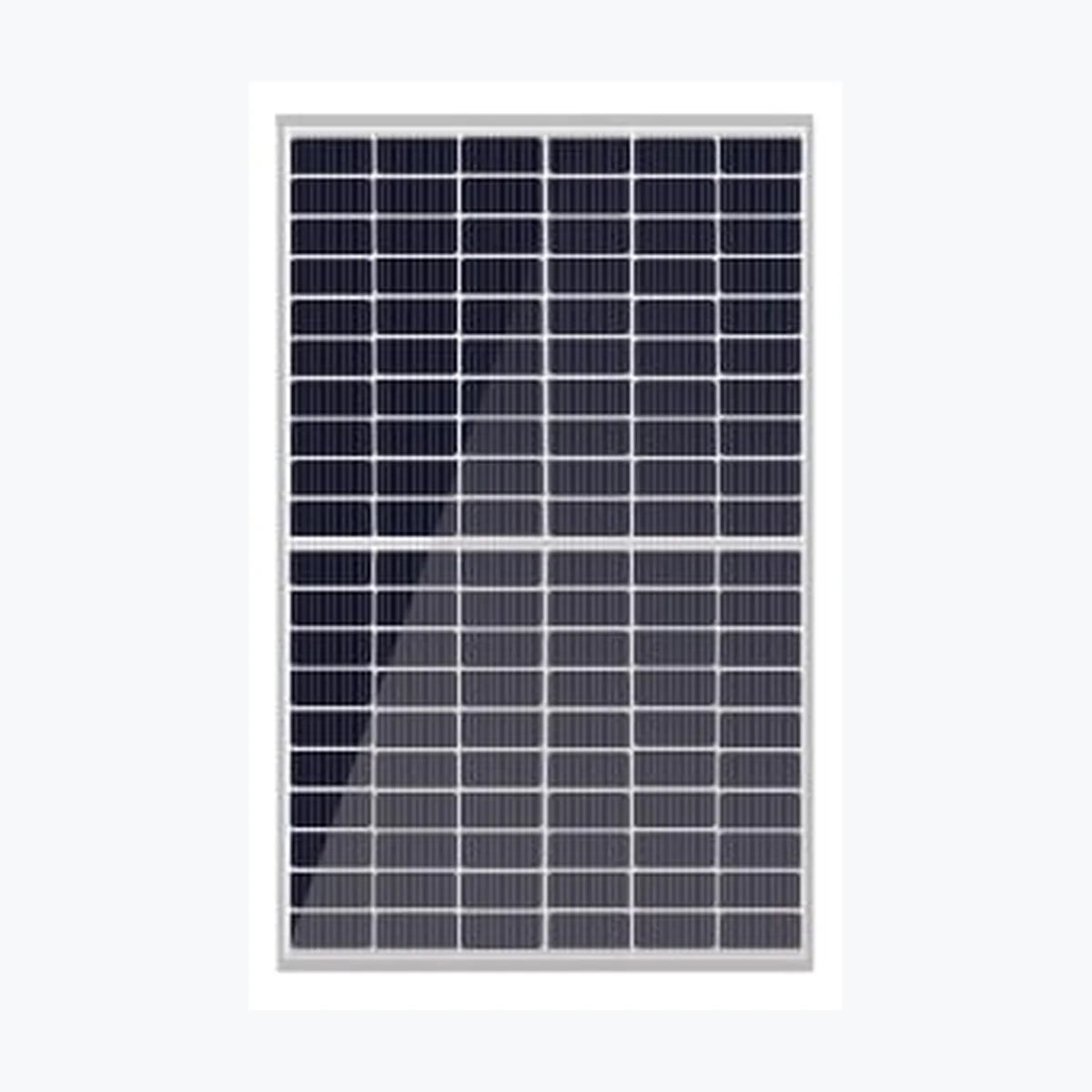

Aoli Solar AL600M12
PayPal Pay in 4 interest-free payments of $52.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-1387
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AL600M12 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 600 Wp Voltage at Maximum Power (Vmpp) 34.42 V Current at Maximum Power (Impp) 17.44 A Open Circuit Voltage (Voc) 41.48 V Short Circuit Current (Isc) 18.52 A Panel Efficiency 21.21 % Maximum Power (Pmax) 454.21 Wp Voltage at Maximum Power (Vmpp) 32.03 V Current at Maximum Power (Impp) 14.18 A Open Circuit Voltage (Voc) 39.1 V Short Circuit Current (Isc) 14.92 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.362 %/°C Temperature Coefficient of Voc -0.262 %/°C Temperature Coefficient of Isc 0.042 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.5 kg Cell Size 210×210 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufact
Power Range: 600 ~ 620 Wp
Panel Efficiency: 21.21 ~ 21.89 %
Weight: 30.5 kg
Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-1387 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
