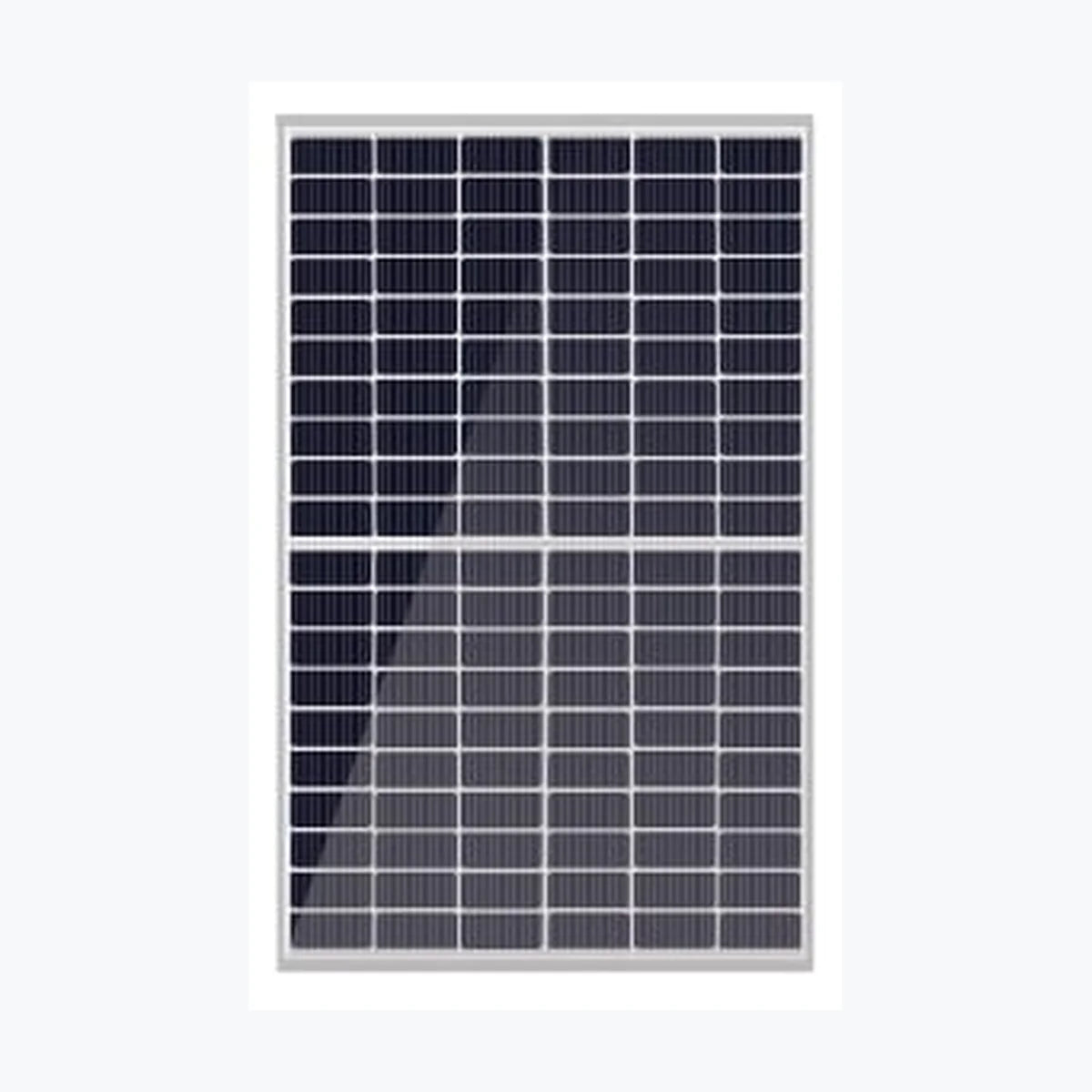

    Aoli Solar AL615M12

    Aoli Solar AL615M12

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1390
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AL615M12 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 615 Wp Voltage at Maximum Power (Vmpp) 35.05 V Current at Maximum Power (Impp) 17.57 A Open Circuit Voltage (Voc) 42.16 V Short Circuit Current (Isc) 18.65 A Panel Efficiency 21.73 % Maximum Power (Pmax) 466.1 Wp Voltage at Maximum Power (Vmpp) 32.63 V Current at Maximum Power (Impp) 14.27 A Open Circuit Voltage (Voc) 39.79 V Short Circuit Current (Isc) 15.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.362 %/°C Temperature Coefficient of Voc -0.262 %/°C Temperature Coefficient of Isc 0.042 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.5 kg Cell Size 210×210 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufact

      Power Range: 600 ~ 620 Wp
      Panel Efficiency: 21.21 ~ 21.89 %
      Weight: 30.5 kg
      Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
      Country: China
