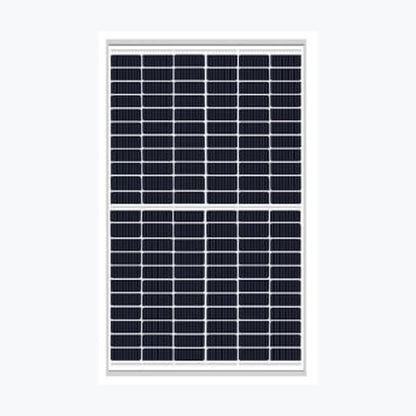

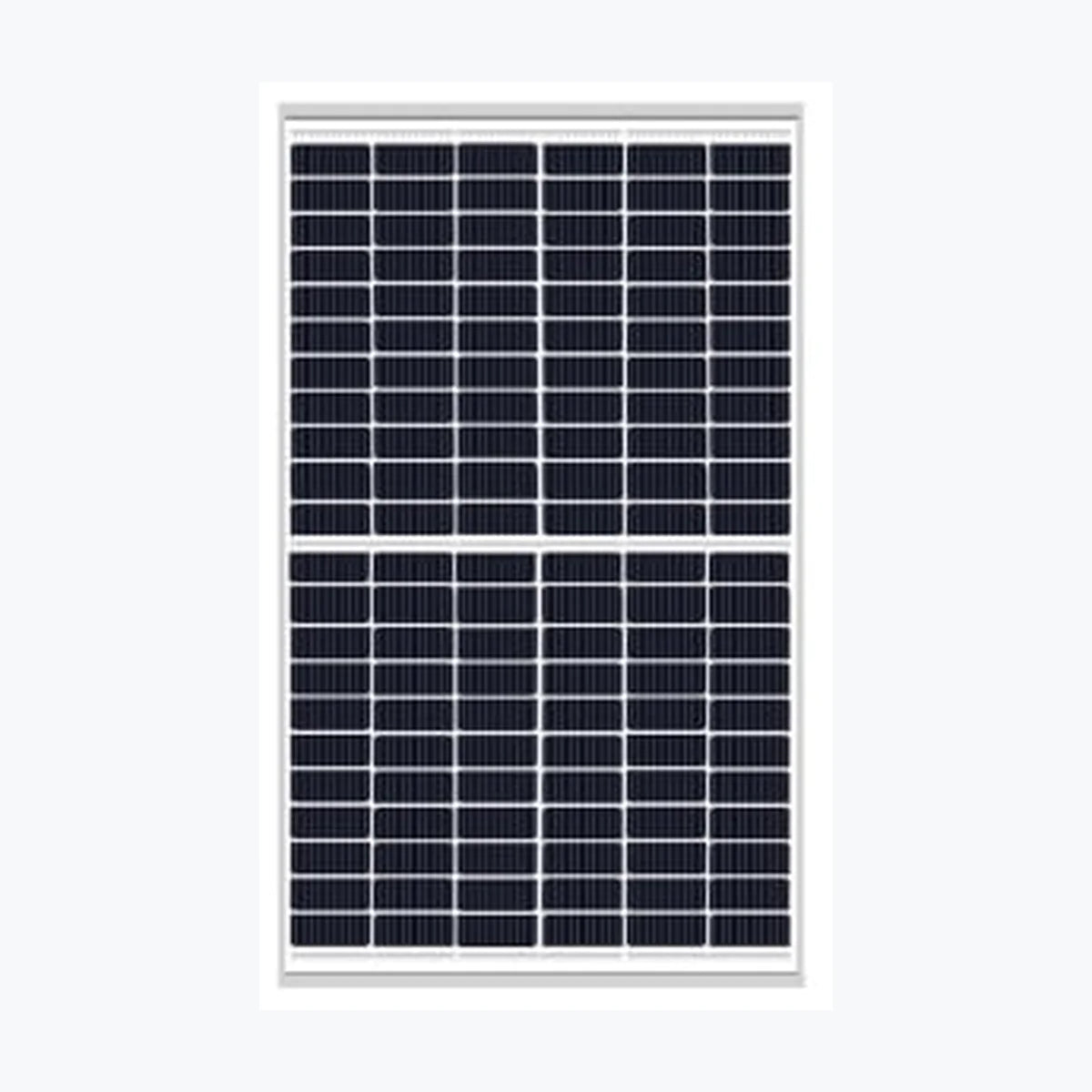

Aoli Solar AL645M12
Aoli Solar AL645M12
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1393
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AL645M12 Product Warranty 30 Years Power Warranty 1 Years of 98 %, 30 Years of 85 % Total Degradation Rate ⏳ 0.5 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 645 Wp Voltage at Maximum Power (Vmpp) 37.52 V Current at Maximum Power (Impp) 17.19 A Open Circuit Voltage (Voc) 45.5 V Short Circuit Current (Isc) 18.58 A Panel Efficiency 20.53 % Maximum Power (Pmax) 496 Wp Voltage at Maximum Power (Vmpp) 34.02 V Current at Maximum Power (Impp) 14.49 A Open Circuit Voltage (Voc) 42 V Short Circuit Current (Isc) 15.8 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.362 %/°C Temperature Coefficient of Voc -0.262 %/°C Temperature Coefficient of Isc 0.042 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2411x1303x35 mm Weight 33 kg Cell Size 210×210 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Ty
Technology: PERC
Power Range: 640 ~ 665 Wp
Panel Efficiency: 20.37 ~ 21.16 %
Weight: 33 kg
Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
Country: China -
