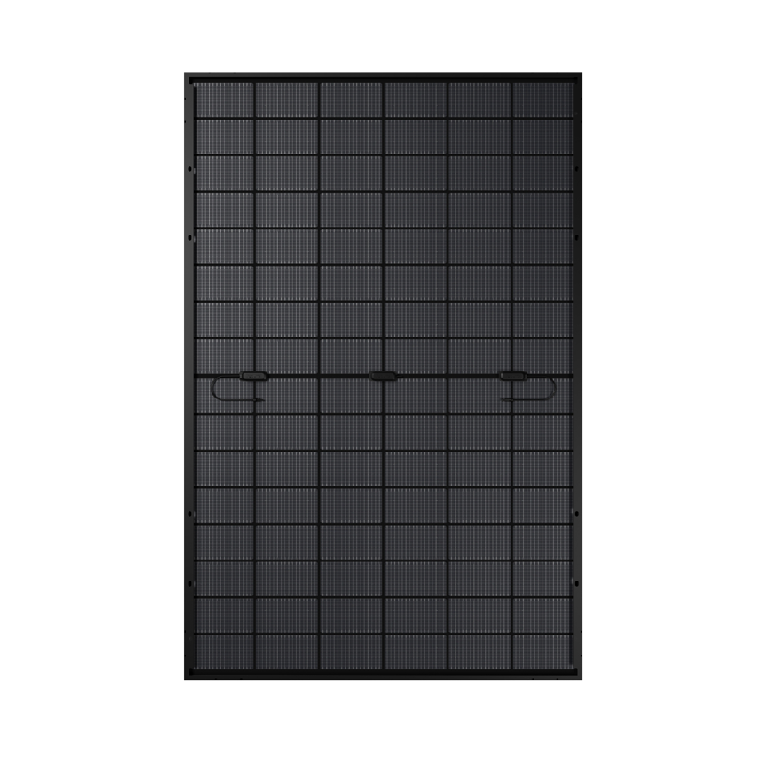

Beyondsun TSBHNM430-96HTG 430–450W N-type TOPCon Bifacial Solar Panel

Model TSBHNM430-96HTG | N-type TOPCon | 96 Cells Mono 182×105 mm | Bifacial Dual Glass | 1500V System Voltage

430–450W

Max Power Output Range

Up to 22.52%

Module Efficiency

96 Cells

N-Type TOPCon

Product Overview

The Beyondsun TSBHNM430-96HTG N-type TOPCon bifacial solar panel delivers high performance for residential and commercial rooftops. This advanced module uses monocrystalline N-type TOPCon cells, dual glass construction, and bifacial generation for excellent long term output. The panel offers a power range from 430W to 450W with module efficiency up to 22.52 percent under standard test conditions. It is engineered to convert more sunlight into usable energy in limited roof space, which supports faster payback on solar investments. Natural zero LID technology helps maintain higher energy yield during the full life of the system. The full black aesthetic gives a modern appearance that integrates cleanly with premium roof designs. With a 1500V system voltage rating, robust IP68 junction box, and high mechanical load resistance, this module suits demanding project requirements. Beyondsun backs the module with a 12 year product warranty and 30 year performance warranty, ensuring reliable output of at least 87.4 percent at year thirty. This combination of efficiency, durability, and bifacial yield makes it a strong choice for quality focused solar installations.

Key Benefits

High efficiency power range: The module delivers 430W to 450W output with module efficiency up to 22.52 percent for strong energy yield on constrained roofs.

N-type TOPCon with natural zero LID: N-type TOPCon cells reduce light induced degradation, so more power is maintained during early years and across the full lifetime.

Bifacial dual glass design: Dual glass and high bifaciality enable rear side generation that can add up to 30 percent more yield in suitable installations.

Excellent temperature and low light performance: A Pmax temperature coefficient of only -0.30 percent per °C supports better performance in hot climates and on sunny rooftops.

Long term reliability and strong warranty: A robust dual glass structure and quality manufacturing support a 12 year product warranty and 30 year linear power warranty.

Slim, aesthetic full black appearance: The panel uses a black anodized aluminium frame and uniform cell layout to create a sleek look for visible roof arrays.

How It Works

This Beyondsun N-type TOPCon bifacial solar panel converts incoming sunlight into electricity using advanced monocrystalline photovoltaic cells. Light hitting the front glass surface is absorbed by the N-type TOPCon cells, which generate direct current power at high efficiency. The dual glass construction and bifacial design also capture reflected light from the rear, which boosts total energy production. Under standard test conditions, the TSBHNM430-96HTG delivers 430W output with 21.52 percent efficiency, while higher bin classes reach up to 450W and 22.52 percent. Power tolerance from 0 to plus 3 percent ensures that real world output will meet or exceed the nameplate rating on each module. A 1500V maximum system voltage enables longer strings and flexible array layouts that minimise balance of system costs. The panel is designed to operate from minus 40°C to plus 85°C and uses a low temperature coefficient to reduce power loss on hot days. Over time, the natural zero LID N-type technology and linear warranty structure work together to maintain at least 87.4 percent of initial power at year thirty. This performance profile supports stable long term generation for residential and commercial rooftop systems.

Front and rear side power generation: The front side of the panel captures direct sunlight, which is the primary source of energy production during the day. The bifacial rear side uses the same N-type TOPCon technology to harvest reflected and diffuse light from surfaces behind the module.

Optimised cell and module architecture: Each module integrates 96 mono 182×105 mm cells in a 2×(6×8) layout that balances voltage and current for rooftop systems. This configuration helps achieve a Vmpp of 29.22V and Impp of 14.72A at 430W, matching modern string inverter input ranges.

Thermal and environmental resilience: Dual 2.0 mm glass layers protect the cells from moisture, UV exposure, and mechanical stress over decades. With a Pmax temperature coefficient of -0.30 percent per °C and NMOT around 45°C, the panel maintains strong production in hot operating conditions.

Technical Specifications

Brand / Manufacturer	Zhejiang Beyondsun Green Energy Technology Co., Ltd. (China)
Model Type	TSBHNM430-96HTG (TSBHNM-96HTG series 430–450W)
Cell Technology	Monocrystalline N-type TOPCon, bifacial
Power Range (STC)	430W / 435W / 440W / 445W / 450W
Max. Power Output Pmax (TSBHNM430-96HTG, STC)	430 Wp
Voltage at Pmax Vmpp (STC, 430W)	29.22 V
Current at Pmax Impp (STC, 430W)	14.72 A
Open Circuit Voltage Voc (STC, 430W)	34.8 V
Short Circuit Current Isc (STC, 430W)	15.73 A
Module Efficiency Range (STC)	21.52% (430W) to 22.52% (450W)
Rear Side Power Gain (Bifaciality)	Reference bifaciality factor 80 ± 10%, up to 30% more yield
Pmax Tolerance	0 ~ +3 %
Nominal Module Operating Temperature (NMOT)	45°C ± 2°C
Operating Temperature Range	-40°C to +85°C
Temperature Coefficient of Pmax	-0.30 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.046 % / °C
Maximum System Voltage	1500 V DC
Maximum Overcurrent / Series Fuse Rating	35 A
Maximum Wind / Snow Load	2400 Pa (wind) / 5400 Pa (snow)
Module Dimensions (L × W × H)	1762 × 1134 × 30 mm
Weight	25.5 kg
Cell Size and Count	182 × 105 mm, 96 pcs (2 × 6 × 8 layout)
Front Cover Glass	2.0 mm coated tempered glass (dual glass front)
Back Cover Glass	2.0 mm heat strengthened glass (bifacial rear)
Frame Material and Color	Anodized aluminium alloy, black
Junction Box	IP68 rated with 3 bypass diodes
Cables and Connectors	4 mm² cables, +400 mm / -300 mm (customisable), PV connectors
Packaging Quantity per Pallet	36 pcs per pallet

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, ISO 9001 Quality Management, ISO 14001 Environmental Management, ISO 45001 Occupational Health and Safety, amfori BSCI Corporate Social Responsibility.
Inverter Compatibility: Designed for modern grid tied string and central inverters supporting 1500V DC systems and high current inputs.
Environmental: Dual glass construction improves resistance to moisture, UV exposure, and potential induced degradation in varied climates.
Warranty: 12 year product warranty for materials and workmanship plus 30 year linear power output warranty, with power guaranteed to 87.4% of initial rating at year 30 and insured by LLOYD'S and Ping An.
