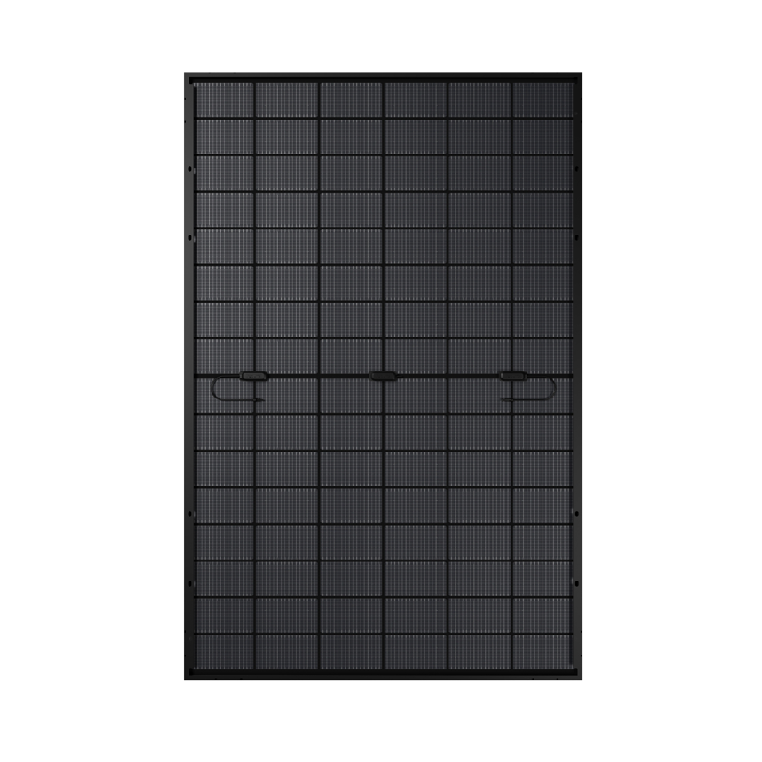

Beyondsun TSBHNM445-96HTG

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Beyondsun TSBHNM445-96HTG

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-2037

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-2037
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Beyondsun TSBHNM445-96HTG $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Beyondsun TSBHNM445-96HTG 445W N-Type TOPCon Bifacial Monocrystalline Solar Panel

Model TSBHNM445-96HTG | N-Type TOPCon | 96 Half-Cells Mono | Bifacial | 1500V System Voltage

445 W

Max Power Output

22.27%

Module Efficiency

N-Type TOPCon

Product Overview

The Beyondsun TSBHNM445-96HTG N-type TOPCon bifacial monocrystalline solar panel delivers up to 445 watts of high efficiency output for demanding residential, commercial and industrial projects. Designed with advanced N-type TOPCon cells and dual glass construction, this bifacial module captures sunlight from both sides to significantly boost energy yield on suitable surfaces. Engineered for long term reliability, it carries a 12 year product warranty and a 30 year performance warranty with only 0.42 percent annual degradation. With module efficiency up to 22.27 percent at STC, refined black aesthetics and robust 1500 volt system compatibility, this panel offers an attractive combination of performance, durability and visual appeal. Installers and system designers can confidently specify this module where long term output, low light response and extended service life are critical design priorities.

Key Benefits

High power density for limited roof space: With 445 watts and up to 22.27 percent efficiency, more energy is produced per square meter, making this module ideal where roof or ground space is constrained.

Bifacial design for higher energy yield: The dual glass bifacial construction allows rear side generation, delivering up to 30 percent additional energy on reflective surfaces compared with conventional monofacial panels.

Stable N-type performance over time: N-type cells provide natural zero light induced degradation, which helps maintain performance from day one and supports the strong 30 year linear power warranty.

Excellent behavior in real rooftop conditions: Optimized temperature coefficients and strong low light response help the module sustain output during hot days, cloudy conditions and early morning or late afternoon hours.

Built for reliability and safety: Dual 2 millimeter glass layers, an anodized aluminum frame, IP68 junction box and 1500 volt system rating support robust performance under challenging environmental and mechanical loads.

How It Works

This N-type TOPCon bifacial monocrystalline solar panel converts sunlight into electricity through high efficiency photovoltaic cells encapsulated between two tempered glass layers. When sunlight strikes the front surface, photons are absorbed by the N-type cells and generate direct current that flows through the integrated busbars and cables. At the same time, the bifacial architecture enables the rear side to harvest additional light reflected from the roof, ground or surrounding surfaces, further increasing overall output. The module operates reliably across a wide temperature range from minus 40 to plus 85 degrees Celsius and is optimized around a nominal operating cell temperature of 45 degrees Celsius. Electrical safety and performance are supported by the 1500 volt system rating, IP68 junction box and three bypass diodes that help mitigate losses due to partial shading. Once installed in a properly designed photovoltaic system with a compatible inverter, the generated DC power is converted into usable AC electricity for on site consumption or export to the grid, depending on local regulations and system design.

Front side N-type TOPCon power generation: The front glass layer admits sunlight onto 96 N-type TOPCon mono cells, arranged in two groups of six by eight half cells. These cells feature naturally stable performance without initial light induced degradation, which helps deliver strong output from the first day and throughout the module lifetime.

Rear side bifacial energy gain: The rear glass surface remains active, capturing light reflected from bright or reflective surfaces such as white membranes, light concrete or snow. Depending on site conditions, this effect can provide up to 30 percent additional yield compared with a similar monofacial panel, improving system energy harvest and project economics.

Thermal and electrical optimization in operation: The module uses a low temperature coefficient of power at minus 0.30 percent per degree Celsius to limit performance losses in hot climates or during summer peaks. Three integrated bypass diodes in the IP68 junction box reduce the impact of partial shading and cell mismatch, helping maintain stable current flow to the inverter and improving real world system reliability.

Technical Specifications

Brand / Manufacturer	Zhejiang Beyondsun Green Energy Technology Co., Ltd. (China)
Model	TSBHNM445-96HTG
Cell Type and Technology	Monocrystalline N-type TOPCon, 182 × 105 mm cells
Cell Arrangement	96 pcs, 2 × (6 × 8) half cell layout
Module Type	Bifacial dual glass monocrystalline module
Power Range (Series)	430 W to 450 W rated power options
Maximum Power Output Pmax (STC)	445 Wp
Maximum Power Voltage Vmpp (STC)	29.81 V
Maximum Power Current Impp (STC)	14.93 A
Open Circuit Voltage Voc (STC)	35.3 V
Short Circuit Current Isc (STC)	15.91 A
Module Efficiency (STC)	22.27 %
Nominal Operating Power Pmax (NMOT)	334.6 Wp at NMOT
Voltage at Pmax (NMOT)	27.77 V
Current at Pmax (NMOT)	12.05 A
Open Circuit Voltage Voc (NMOT)	33.54 V
Short Circuit Current Isc (NMOT)	12.85 A
Rear Side Bifacial Power Gain (Reference)	Bifaciality factor 80 ± 10 %, up to 30 % more yield claimed
Power Tolerance	0 to +3 % positive only tolerance
Maximum System Voltage	1500 V DC
Maximum Over Current Rating	35 A maximum series fuse rating
Operating Temperature Range	-40 °C to +85 °C
Nominal Module Operating Temperature (NMOT)	45 °C ± 2 °C
Temperature Coefficient of Pmax	-0.30 % per °C
Temperature Coefficient of Voc	-0.25 % per °C
Temperature Coefficient of Isc	+0.046 % per °C
Mechanical Dimensions (L × W × H)	1762 × 1134 × 30 mm overall module size
Weight	25.5 kg per module
Front Cover Glass	2.0 mm coated tempered glass
Back Cover Glass	2.0 mm heat strengthened glass
Frame	Anodized aluminium alloy, black finish frame
Junction Box	IP68 rated junction box with 3 bypass diodes
Cable and Connectors	4 mm² cable, +400 mm / -300 mm length, PV compatible connectors
Maximum Wind / Snow Load	2400 Pa wind load, 5400 Pa snow load (design values)

Certifications & Compliance

Certifications: IEC 61215 and IEC 61730 design and safety certification, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety, amfori BSCI corporate social responsibility participation.
Inverter Compatibility: Suitable for most modern string and central inverters designed for 1500 V DC systems, subject to project specific electrical design and inverter manufacturer guidance.
Environmental: Dual glass design supports improved resistance to moisture, potential induced degradation and environmental stress across a wide operating temperature range.
Warranty: 12 year product warranty on materials and workmanship plus 30 year linear power warranty to 87.4 percent of initial output, with performance insured by partners such as LLOYD'S and Ping An according to the manufacturer datasheet.

Documentation
