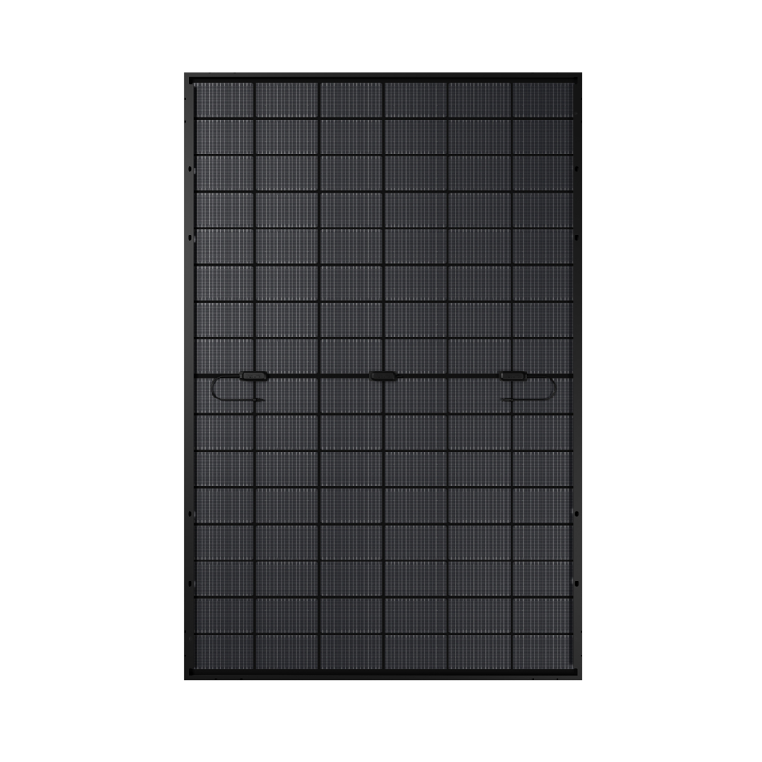

Beyondsun TSBHNM450-96HTG 430–450W N-Type TOPCon Bifacial Solar Panel

Model TSBHNM450-96HTG | N-Type TOPCon | 96 Cells Mono 182×105 mm | Bifacial Dual Glass | 1500V System Voltage

450 W

Max Power Output

22.52%

Module Efficiency

96 Cells

N-Type TOPCon

Product Overview

The Beyondsun TSBHNM450-96HTG N-type TOPCon bifacial solar panel delivers up to 450 W of high efficiency power for modern rooftop and commercial projects. This advanced dual glass module combines N-type monocrystalline cells with TOPCon technology to achieve module efficiency up to 22.52% in a compact, full black design. The bifacial architecture captures light from the front and rear sides, which can increase total energy yield by up to 30% in suitable installations. A natural zero LID cell structure helps maintain performance over time, while an excellent temperature coefficient supports strong output in hot conditions. With robust dual 2.0 mm glass, an anodized aluminium alloy frame, and IP68 junction box, this panel is engineered for long service life in demanding environments. It is an ideal choice for residential rooftops and commercial or industrial arrays that require reliable, long term clean energy production from a premium N-type TOPCon bifacial solar panel.

Key Benefits

High power density for limited roof space: Up to 450 W with 22.52% efficiency allows more energy from each square meter, which suits space constrained rooftops and compact C&I projects.

Bifacial gain for higher energy yield: The dual glass bifacial design can deliver up to 30% more energy by harvesting reflected light from the rear side on bright and reflective surfaces.

N-type TOPCon reliability and zero LID: N-type cells with TOPCon architecture offer natural zero light induced degradation, which helps preserve power output during the first years in operation.

Strong performance in real world conditions: Excellent low light response and a low Pmax temperature coefficient of -0.30% per °C support stable production from sunrise to sunset and during hot weather.

Durable dual glass construction: 2.0 mm tempered front glass and 2.0 mm heat strengthened rear glass protect the cells against moisture, impacts, and high mechanical loads for long term reliability.

Bankable warranty from a proven manufacturer: A 12 year product warranty and 30 year linear power warranty, with 87.4% rated output at year 30, provide strong long term assurance for residential and C&I investors.

How It Works

Inside the Beyondsun TSBHNM450-96HTG solar panel, advanced N-type monocrystalline cells convert sunlight into clean DC electricity through the photovoltaic effect. Each cell is engineered with TOPCon technology to reduce electron loss and increase carrier lifetime, which helps boost efficiency and long term stability. The module uses a bifacial dual glass layout, so both the front and rear surfaces can capture useful light. Direct sunlight strikes the front glass, while reflected and diffuse light reaches the rear through the transparent back glass layer. The generated DC current flows through an integrated junction box with three bypass diodes, which support safer and more stable operation under partial shading. From there, solar cables and PV connectors deliver the power to a compatible inverter, where it is converted into AC electricity for homes or commercial loads. The robust frame, IP68 junction box, and wide operating temperature range ensure dependable performance across diverse climates and installation types.

N-type TOPCon monocrystalline cell operation: The panel uses 96 N-type mono cells sized 182×105 mm arranged in a 2×(6×8) layout. These cells feature TOPCon passivated contacts that reduce recombination losses and support higher conversion efficiency.

Bifacial dual glass energy capture: Light enters through the 2.0 mm coated tempered front glass and reaches the cell surface for primary generation. Additional light reflected from the roof or ground passes through the 2.0 mm rear glass, where the bifacial cells harvest extra energy to raise total output.

Power delivery and system integration: Current from the cells is collected through busbars and directed to the IP68 junction box with three bypass diodes, which help limit power loss under shading. Factory fitted 4 mm² cables and PV connectors then link the module to string circuits and a suitable inverter within a 1500 V DC system.

Technical Specifications

Brand	Zhejiang Beyondsun Green Energy Technology Co., Ltd.
Model Number	TSBHNM450-96HTG
Cell Technology	N-type TOPCon monocrystalline
Cell Size	182 × 105 mm
Cell Count and Arrangement	96 cells, 2 × (6 × 8)
Module Type	Bifacial dual glass full black module
Power Range (STC)	430 W to 450 W
Maximum Power Output Pmax (STC)	450 W
Maximum Power Output Pmax (NMOT)	338.4 W
Module Efficiency (STC)	21.52% to 22.52% depending on power class
Rear Side Bifacial Gain (Reference)	Bifaciality factor 80 ± 10%
Pmax Tolerance	0 ~ +3%
Voltage at Maximum Power Vmpp (STC)	30.01 V
Current at Maximum Power Impp (STC)	15.00 A
Open Circuit Voltage Voc (STC)	35.47 V
Short Circuit Current Isc (STC)	15.97 A
Voltage at Maximum Power Vmpp (NMOT)	27.95 V
Current at Maximum Power Impp (NMOT)	12.11 A
Open Circuit Voltage Voc (NMOT)	33.70 V
Short Circuit Current Isc (NMOT)	12.89 A
Maximum System Voltage	1500 V DC
Maximum Over Current Rating	35 A
Maximum Wind Load / Snow Load	2400 Pa wind / 5400 Pa snow
Operating Temperature Range	-40 °C to +85 °C
NMOT (Nominal Module Operating Temperature)	45 °C ± 2 °C
Temperature Coefficient of Pmax	-0.30% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.046% / °C
Module Dimensions (L × W × H)	1762 × 1134 × 30 mm
Weight	25.5 kg
Front Cover Glass	2.0 mm coated tempered glass
Back Cover Glass	2.0 mm heat strengthened glass
Frame Material and Color	Anodized aluminium alloy, black
Junction Box Rating and Diodes	IP68 junction box with 3 bypass diodes
Cable Specification	4 mm², +400 mm, -300 mm, or customizable
Connector Type	PV connector compatible
Quantity per Pallet	36 pieces

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, ISO 9001 Quality Management, ISO 14001 Environmental Management, ISO 45001 Occupational Health and Safety, amfori BSCI Corporate Social Responsibility.
Inverter Compatibility: Designed for 1500 V DC systems and compatible with most modern string and central inverters that support N-type bifacial modules within the specified voltage and current range.
Environmental: Dual glass construction with robust mechanical load ratings for wind and snow, wide operating temperature range from -40 °C to +85 °C, and high resistance to moisture and dust through IP68 junction box sealing.
Warranty: 12 year product warranty on materials and workmanship plus 30 year linear power output warranty, with 87.4% of the original power guaranteed at year 30 and coverage insured by LLOYD'S and PingAn.
