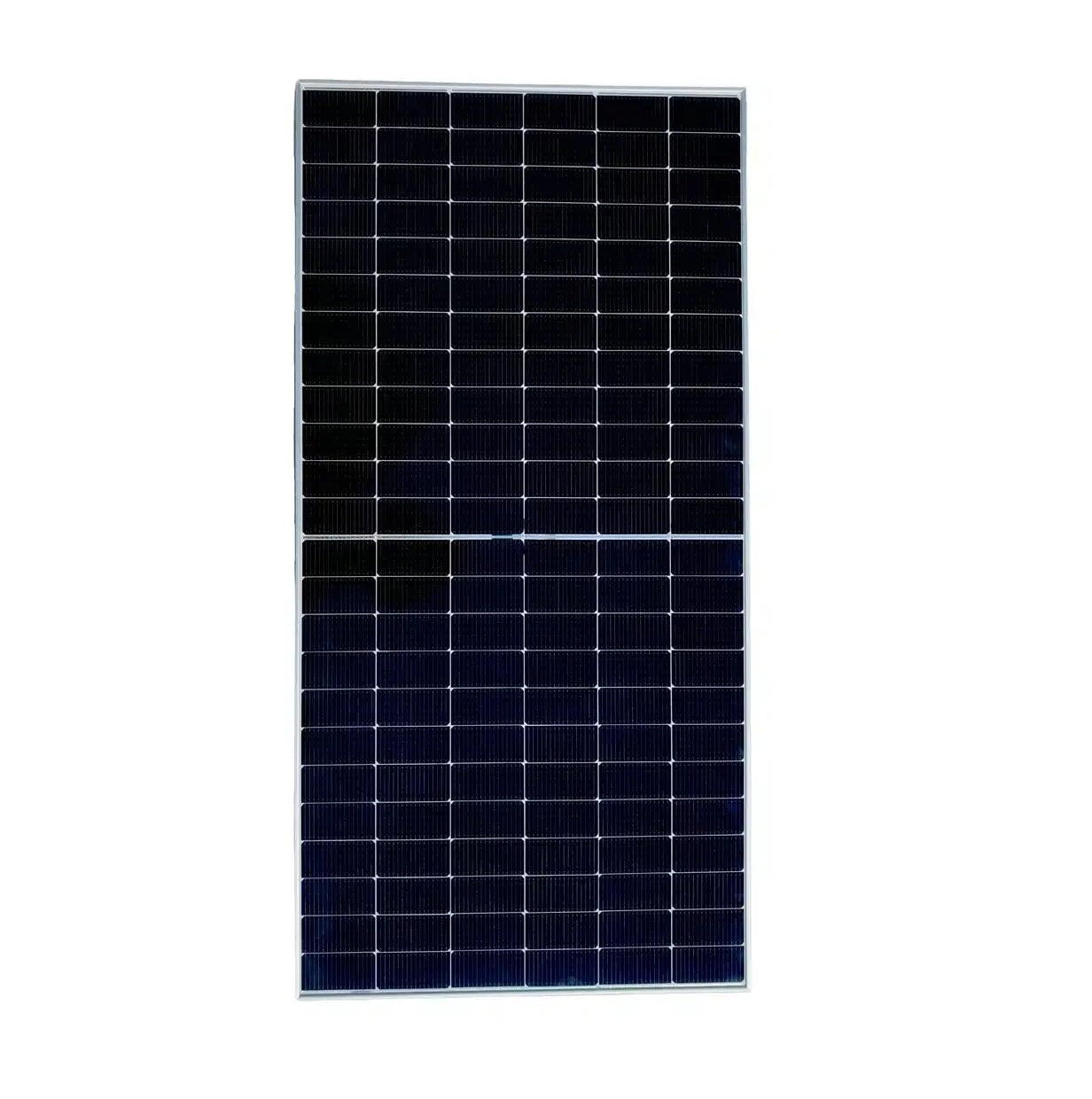

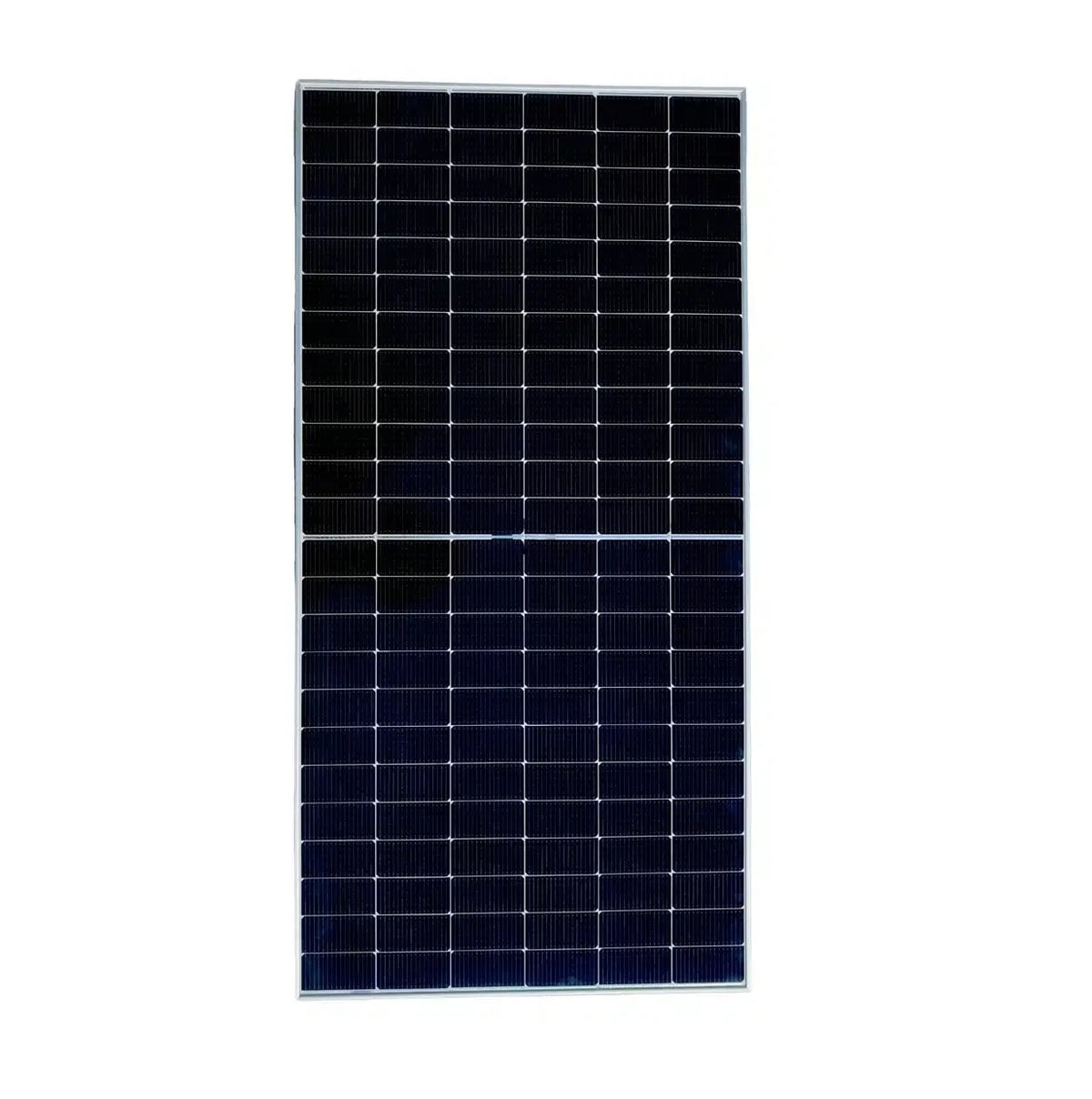

Bila Solar AA550US-6x24GG 550W Bifacial Monocrystalline Solar Panel

Model AA550US-6x24GG | Bifacial PERC | 144 Half-Cut Cells | Monocrystalline | 1500V System Voltage

550W

Max Power Output

21.3%

Module Efficiency

144 Cells

Half-Cut Bifacial

Product Overview

The Bila Solar AA550US-6x24GG represents a premium bifacial solar panel engineered for maximum energy generation. This 550-watt module combines advanced PERC technology with bifacial capabilities. Manufactured in Indiana with domestically sourced cells, it meets stringent domestic content requirements. The panel features 144 half-cut monocrystalline cells arranged in a 6x24 configuration. Its dual-glass construction delivers exceptional durability and weather resistance. The bifacial design captures reflected sunlight from ground surfaces, increasing overall system yield. With 21.3% efficiency rating, this panel outperforms conventional alternatives. The large-format module integrates seamlessly into residential and commercial installations. Its positive power tolerance guarantees a minimum of 550 watts at standard test conditions.

Key Benefits

Enhanced Bifacial Performance: Bifacial PERC cells generate additional power from reflected ground light. This rear-side power gain reaches approximately 5% under optimal conditions. Low-light performance improves significantly compared to monofacial alternatives.

Domestic Manufacturing: Cells manufactured in the USA with modules assembled in Indiana. This qualifies for domestic content requirements in many incentive programs. Supporting American manufacturing strengthens local solar infrastructure.

Superior Durability: Certified to withstand snow loads up to 5400 Pa and extreme winds up to 2400 Pa. Dual-glass construction with anodized aluminum frame ensures long-term protection. IP68-rated junction box provides complete weatherproofing.

Positive Power Tolerance: Features 0 to +0.93% power tolerance, guaranteeing more power than rated specifications. This means you receive at least 550 watts at standard test conditions. No negative power output surprises.

Extended Warranty Protection: Includes 12-year product and materials warranty plus 30-year linear power performance warranty. First-year degradation limited to less than 2%, then under 0.45% annually. Comprehensive coverage ensures long-term investment security.

High System Voltage Capability: Supports maximum system voltage of 1500V DC, enabling larger array configurations. Reduces balance-of-system component requirements and installation complexity. Compatible with modern string inverters and hybrid systems.

How It Works

The Bila Solar AA550US-6x24GG operates through advanced photovoltaic conversion principles enhanced by bifacial technology. Sunlight strikes the front-facing monocrystalline PERC cells, exciting electrons and generating direct current. Simultaneously, reflected light from ground surfaces reaches the rear side, creating additional power generation. The half-cut cell configuration reduces resistive losses and improves current distribution throughout the module. Three bypass diodes protect against hotspot formation and shading issues. The dual-glass structure with anti-reflection coating maximizes light transmission to active cells. Temperature management through natural ventilation maintains optimal operating conditions across seasonal variations.

Bifacial Power Generation: Front-side cells capture direct sunlight while rear-side cells harness reflected light from ground surfaces and nearby structures. This dual-surface collection increases annual energy yield by approximately 5% compared to monofacial modules. Optimal placement on reflective surfaces maximizes this benefit.

PERC Cell Technology: Passivated Emitter Rear Cell technology reduces electron recombination losses on the rear surface. This increases overall conversion efficiency and improves low-light performance. Enhanced rear-surface passivation enables superior bifaciality and power output.

Half-Cut Cell Design: Dividing cells into halves reduces series resistance and minimizes current losses. This configuration improves performance under partial shading conditions. Increased number of cells (144 total) distributes electrical stress more evenly across the module.

Temperature Coefficient Management: Temperature coefficient of -0.35%/°C means power output decreases slightly as module temperature rises. Natural ventilation and mounting techniques minimize temperature buildup. Dual-glass construction provides better thermal management than traditional single-glass designs.

Technical Specifications

Model Number	AA550US-6x24GG
Cell Type	Monocrystalline PERC (Passivated Emitter Rear Cell)
Technology	Bifacial, Half-Cut
Number of Cells	144 (6 × 24 configuration)
Cell Size	182 × 91 mm
Maximum Power (Pmax) at STC	550 Wp
Power Tolerance	0 to +0.93%
Module Efficiency	21.3%
Voltage at Maximum Power (Vmpp)	41.96 V
Current at Maximum Power (Impp)	13.11 A
Open Circuit Voltage (Voc)	49.9 V
Short Circuit Current (Isc)	14 A
Maximum Power at NMOT	416 Wp
NMOT Voltage (Vmpp)	39.79 V
NMOT Current (Impp)	10.46 A
NMOT Open Circuit Voltage (Voc)	47.32 V
NMOT Short Circuit Current (Isc)	11.3 A
Rear-Side Power Gain	~5% (Reference to 550W Front)
Bifaciality Factor	70% ± 5%
Temperature Coefficient of Pmax	-0.35%/°C
Temperature Coefficient of Voc	-0.26%/°C
Temperature Coefficient of Isc	0.048%/°C
Nominal Module Operating Temperature	42 ± 2°C
Operating Temperature Range	-40°C to +85°C (-40°F to +185°F)
Maximum System Voltage (DC)	1500V (IEC/UL)
Series Fuse Rating	25 A
Dimensions (H × W × D)	2278 × 1134 × 30 mm (89.69 × 44.65 × 1.18 in)
Weight	31.8 kg (70.11 lbs)
Front Cover	2.0 mm semi-tempered AR (anti-reflection) glass
Back Cover	2.0 mm semi-tempered bifacial glass
Frame Material	Anodized aluminum alloy
Junction Box	IP68 rated with 3 bypass diodes
Output Cable	4 mm² (IEC), 12 AWG (UL)
Connector Type	MC4 or similar
Front-Side Maximum Loading	5400 Pa (112 lb/ft²) snow load
Back-Side Maximum Loading	2400 Pa (50 lb/ft²) wind load
Fire Resistance Rating	UL Type 29
Pallet Configuration	36 pieces per pallet, 576 pieces per 53-foot container
Manufacturing Location	Cells made in USA, modules assembled in Indiana
First Year Degradation	Less than 2%
Annual Degradation (After Year 1)	Less than 0.45% per year
30-Year Power Retention	84.95%

Certifications & Compliance

Certifications: UL 61730 (Safety), UL 61215 (Performance), UL Type 29 (Fire Resistance)

Inverter Compatibility: Compatible with all major string inverters and hybrid systems supporting 1500V DC maximum system voltage. Works with microinverters and power optimizers for module-level monitoring.

Environmental Standards: Meets IEC and UL standards for extreme weather conditions. Certified for snow loads up to 5400 Pa and wind speeds up to 2400 Pa. Dual-glass construction eliminates moisture ingress concerns.

Warranty: 12-year product materials and workmanship warranty covering manufacturing defects. 30-year linear power performance warranty guarantees minimum 84.95% power output after 30 years. First-year degradation limited to less than 2%, then less than 0.45% annually.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
