Bluesun - 550W - Bifacial Dual Glass Solar Panel - (31) Pallet Only - BSM550M10-72HBD

Bluesun - 550W - Bifacial Dual Glass Solar Panel - (31) Pallet Only - BSM550M10-72HBD

Return policy

Specification

  • SKU:PES-SPS-SPL-0132
  • Brands: Bluesun Solar
  • Documents:
  • Height: 3.5
  • Length: 228.5
  • Panel wattage: 550
  • Technology:
    • Bifacial
View full details
  • Product Description

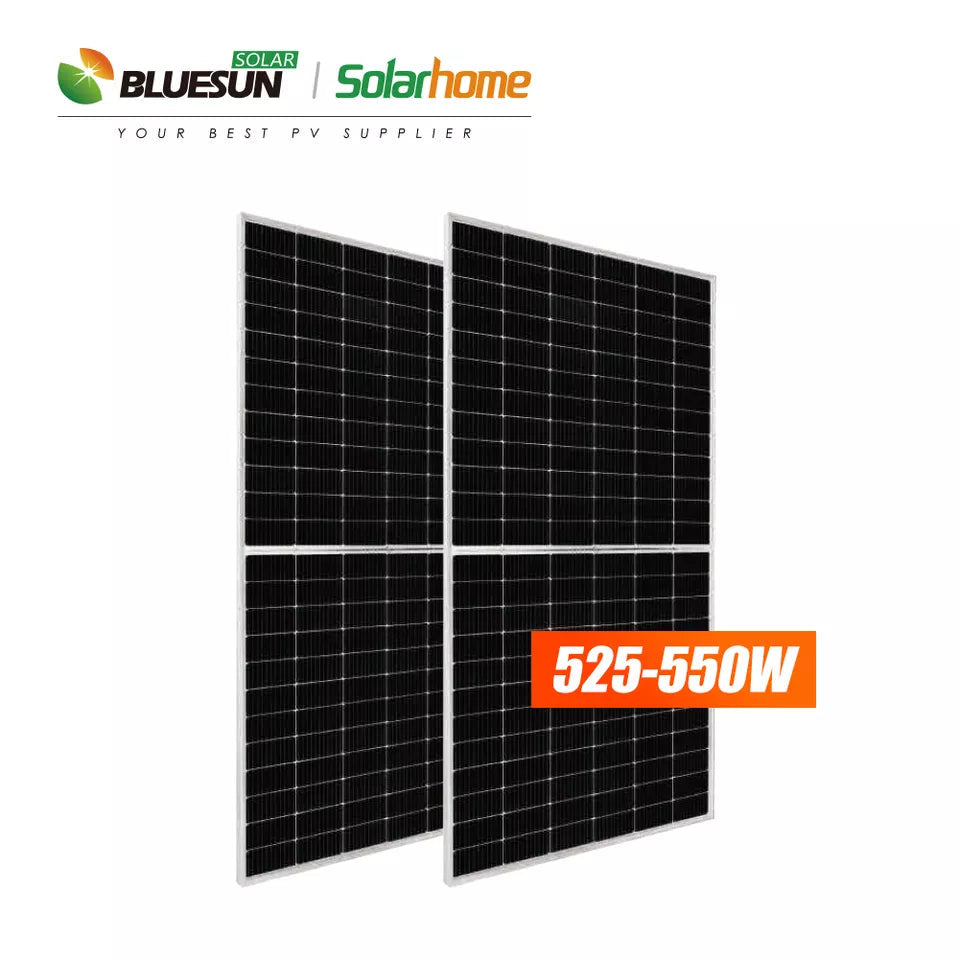

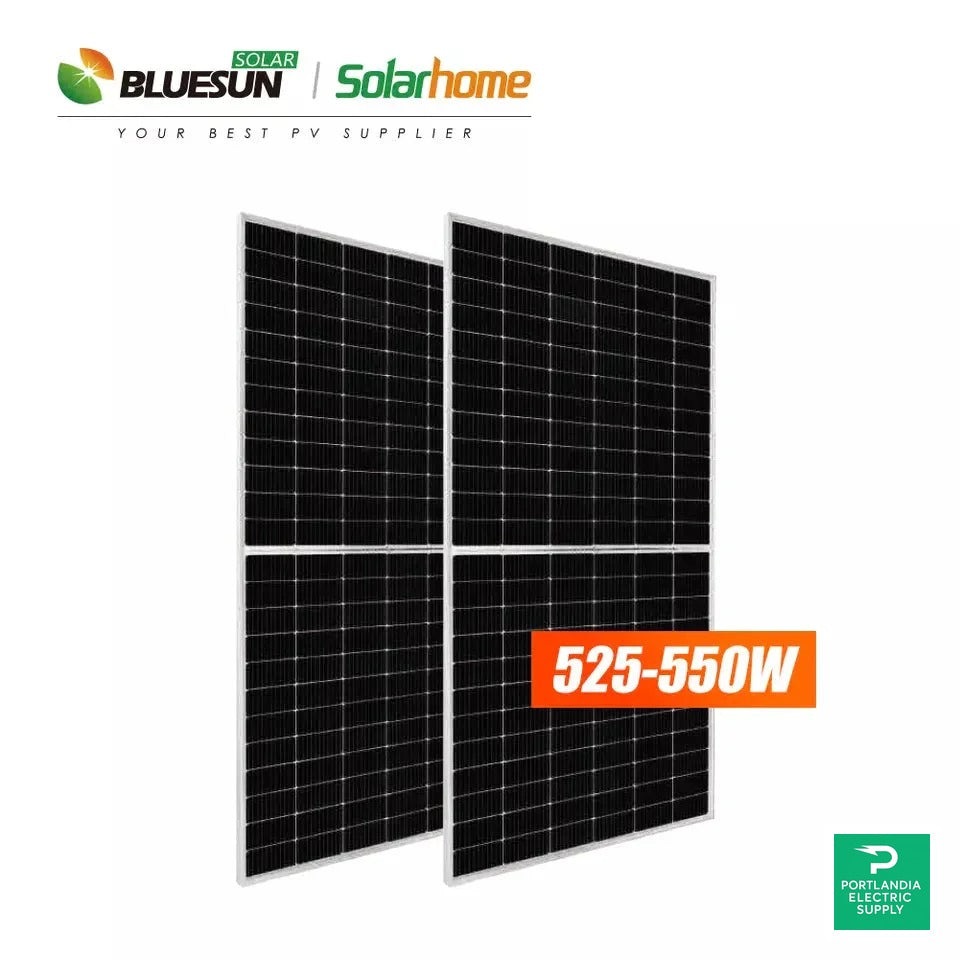

    Bluesun 550W Bifacial Dual Glass Solar Panel

    Experience enhanced solar energy efficiency with the Bluesun Solar BSM550M10-72HBD panel. Designed for superior performance, this bifacial dual glass module captures sunlight from both sides, offering increased energy yield and reliability. Its robust construction ensures long-term durability while maximizing power production in various conditions.

    Product Features

    Advanced Bifacial Technology

    The Bluesun Solar BSM550M10-72HBD utilizes state-of-the-art bifacial technology, allowing for greater energy capture by utilizing both front and back panel surfaces. This feature significantly boosts overall energy yield.

    Robust Dual Glass Build

    Featuring a dual glass structure, this solar panel is engineered to endure harsh weather conditions, providing sustained energy production and extended lifespan.

    High Efficiency Rate

    With an efficiency of up to 21.2%, the Bluesun Solar panel offers optimal power conversion, ensuring you get the maximum energy output from each solar installation.

    Superior Electrical Performance

    Designed to deliver consistent performance, the panel operates with a maximum power output of 550W and is adaptable to varying environmental conditions, maintaining stability and efficiency.

    Environmentally Friendly

    Contributing to cleaner energy consumption, this solar panel aligns with sustainable practices, reducing reliance on non-renewable resources and lessening carbon footprint.

    How It Works

    The Bluesun Solar BSM550M10-72HBD functions through its advanced bifacial cells that capture sunlight from both the panel's surfaces, increasing the energy absorption rate. This innovative approach offers higher solar efficiency, making it ideal for diverse applications.

    Bifacial Cell Design

    Utilizes bifacial cells that enhance energy absorption through both sides of the panel, boosting electricity generation efficiency by capturing reflected light.

    Advanced Glass Layers

    Incorporates dual tempered glass layers that provide robust protection and durability while optimizing light transmission, enhancing energy capture.

    Integrated Junction Box

    The IP68-rated junction box ensures secure electrical connections and optimal performance even under challenging environmental conditions.

    Specifications

    Maximum Power (Pmax/W) 530 - 550
    Operating Voltage (Vmpp/V) 41.32 - 41.96
    Operating Current (Impp/A) 12.83 - 13.11
    Open-Circuit Voltage (Voc/V) 49.32 - 49.92
    Short-Circuit Current (Isc/A) 13.72 - 14.00
    Efficiency Up to 21.2%
    Module Dimensions 2285*1134*35mm
    Weight 32.2kg
    Temperature Coefficient (Pmax) -0.35%/C
    Static Loading Snow: 5400Pa, Wind: 2400Pa
