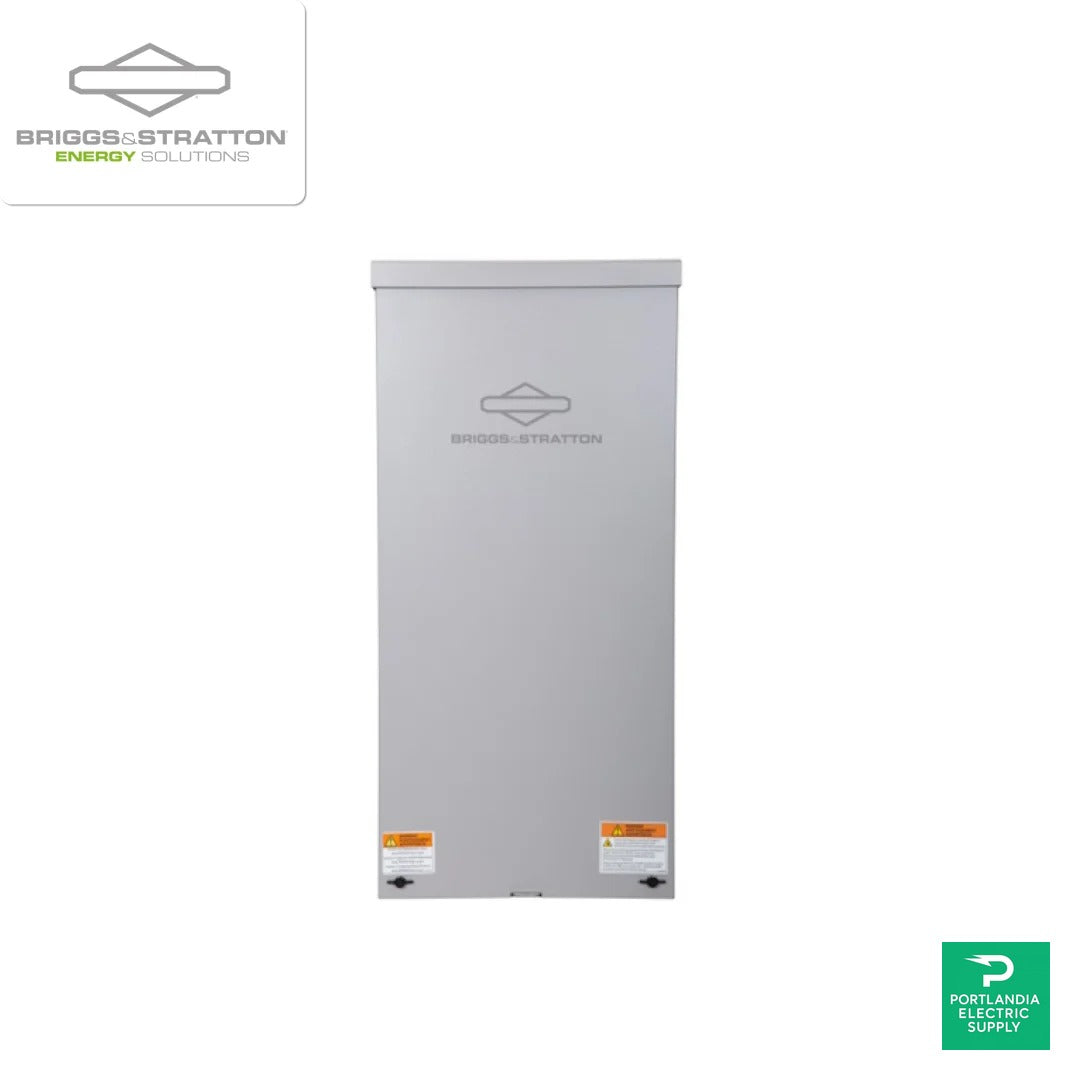

Briggs and Stratton 150 amp Standard SED Transfer Switch, NEMA 3R - 071250
PayPal Pay in 4 interest-free payments of $305.03 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-2238
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Briggs & Stratton 150A transfer switch – seamless whole-house power
The Briggs & Stratton 150A transfer switch senses a utility outage and signals your standby generator to start within seconds. When utility power returns, the Briggs & Stratton 150A transfer switch re-transfers the load automatically—no manual breakers to flip.
Key Features
Service-Entrance Disconnect (SED) built in
This NEMA 3R steel enclosure combines the main disconnect with the Briggs & Stratton 150A transfer switch, streamlining installation and meeting NEC® service-entrance requirements. UL 1008 open-transition design is rated for 22 kA withstand.:contentReference[oaicite:4]{index=4}
Specifications
| Amperage rating | 150 A |
|---|---|
| Voltage / phase | 120 / 240 V, single-phase, 60 Hz |
| Poles | 2-pole, open transition |
| Enclosure | NEMA 3R galvanneal steel, powder-coated |
| Dimensions (L × W × D) | 30 × 14.5 × 7 in |
| Controller | ACCM (standard) – Symphony Choice compatible |
| UL listing | UL 1008, 22 kA withstand |
| Warranty | 5-year limited parts |
Installation & Warranty
Indoor or outdoor mounting, copper/aluminum lugs (#2 AWG – 300 MCM) and Symphony load-management modules make the Briggs & Stratton 150A transfer switch ideal for 25–50 kW standby generators. A 5-year factory warranty backs every Briggs & Stratton 150A transfer switch for long-term peace of mind.
| SKU | PES-SPS-SOL-2238 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
