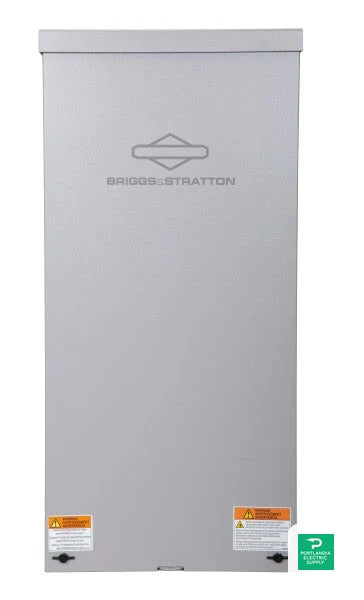

Briggs and Stratton 200 amp Standard SED Transfer Switch, NEMA 3R - 071270
PayPal Pay in 4 interest-free payments of $218.20 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-2239
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Briggs & Stratton 200A transfer switch – whole-house power without the hassle
The Briggs & Stratton 200A transfer switch senses utility failures and starts your standby generator automatically. When grid power returns, the Briggs & Stratton 200A transfer switch re-transfers the load in seconds, protecting appliances from out-of-phase back-feed.
Key Features
Service-Entrance Disconnect (SED) integrated
This NEMA 3R steel enclosure merges the main disconnect and the Briggs & Stratton 200A transfer switch, simplifying installation and meeting NEC® service-entrance requirements. UL 1008 open-transition design withstands 22 kA fault current.
Specifications
| Amperage rating | 200 A |
|---|---|
| Voltage / phase | 120 / 240 V, single-phase, 60 Hz |
| Poles | 2-pole, open transition |
| Enclosure | NEMA 3R galvanneal steel, powder-coated |
| Dimensions (L × W × D) | 30 × 14.5 × 7 in |
| Controller | ACCM – Symphony® Choice compatible |
| UL listing | UL 1008, 22 kA withstand rating |
| Warranty | 5-year limited parts |
Installation & Warranty
Indoor or outdoor mounting, copper/AL lugs (#2 AWG – 300 MCM) and Symphony modules make the Briggs & Stratton 200A transfer switch perfect for 40–60 kW standby generators. Every Briggs & Stratton 200A transfer switch carries a 5-year factory warranty for lasting peace of mind.
| SKU | PES-SPS-SOL-2239 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
