BOSS.12 Battery Enclosure – Up to 12 Batteries, Shelves & 8 ft 4/0 Cables

BOSS.12 Battery Enclosure – Up to 12 Batteries, Shelves & 8 ft 4/0 Cables

Regular price $4,734.12 USD
Regular price Sale price $4,734.12 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-1834
  • Documents:
  • Height: 76
  • Length: 29.5
  • Width: 20
View full details
  • BOSS.12 battery enclosure – up to 12 batteries

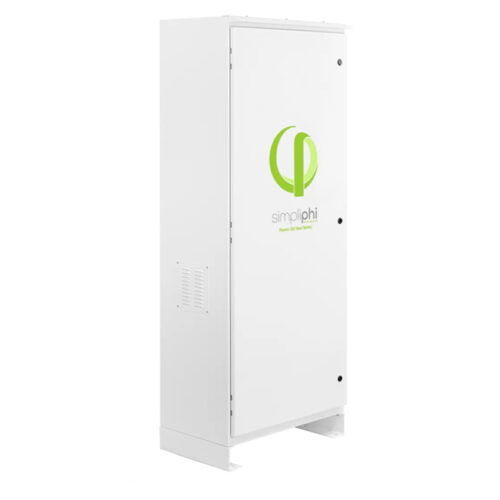

    The BOSS.12 battery enclosure is a NEMA 3R-rated, carbon-steel cabinet that consolidates up to twelve SimpliPHI or AmpliPHI modules into a single, weather-resistant stack for whole-home and commercial storage.

    Key Features

    Massive 12-battery capacity

    Hold up to 12 PHI 3.8 kWh modules in one BOSS.12 battery enclosure, expanding usable storage to 45 kWh without extra racking.

    Weather-resistant steel cabinet

    NEMA 3R carbon-steel housing and a corrosion-resistant fan protect batteries from dust, rain and temperatures up to 120 °F.

    Pre-wired busbars & cables

    Includes terminal blocks, two 5-point busbars and 8 ft 4/0 inverter cables, so the BOSS.12 battery enclosure installs fast and clean.

    Specifications

    BOSS.12 battery enclosure – complete technical data
    Model number BOSS.12 (053002-00)
    Max contained batteries 12 × PHI 3.8 / AmpliPHI 3.8
    Dimensions (W × H × D) 29.5 × 76 × 20 in (75 × 193 × 51 cm)
    Weight (empty) 428 lb (194 kg)
    Enclosure rating NEMA 3R, outdoor rated
    Built-in DC connections 2 × 5-point terminal busbars, 3/8 in lugs, 650 ADC
    Operating temp (charge) 32 °F – 120 °F (0 °C – 49 °C)
    Mounting Free-standing or pad-mounted
    Certifications UL 9540 & UL 9540A fire-safety tested
    Warranty 2 years

    Installation & Warranty

    A 2-year warranty and UL 9540/9540A certification give every BOSS.12 battery enclosure the safety pedigree installers demand.
