BYD LVS 16.0

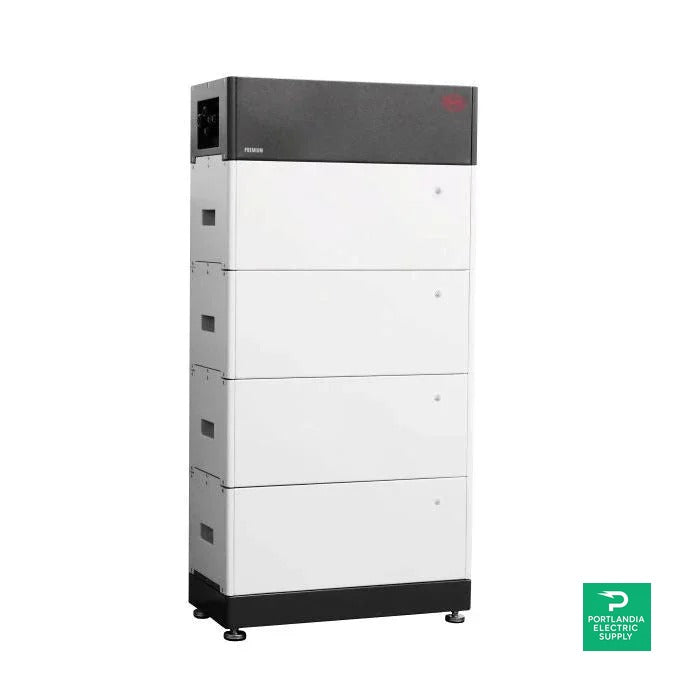

BYD Battery-Box Premium LVS 4 Module - LVS 16.0

The BYD Battery-Box Premium LVS 4 Module, identified as LVS 16.0, is a powerful lithium iron phosphate (LFP) battery designed to meet various energy needs. This innovative energy storage solution provides substantial safety and flexibility for residential and commercial applications. With its remarkable scalability, users can easily expand from 4 kWh to an impressive 256 kWh by connecting up to 64 modules in parallel.

Product Features

Modular Design for Maximum Scalability

The LVS 16.0 allows for exceptional adaptability, enabling users to connect up to 16 battery units for a total capacity of 256 kWh. This feature makes it a versatile choice for both small and large energy projects.

High Power Output and Efficiency

This battery module supports a continuous output current of 250 A, ensuring a reliable power supply during peak demand times. With a round-trip efficiency of over 95%, it maximizes energy utilization effectively.

Advanced Lithium Iron Phosphate Technology

Employing lithium iron phosphate (cobalt-free) technology, the LVS 16.0 stands out for its focus on safety and longevity. This ensures that users benefit from a stable and durable power source.

Intuitive Internal Plug Design

The patented internal plug connection eliminates the need for additional wiring, allowing for straightforward installation and reducing setup complexity. This enhances user experience significantly.

Versatile Applications

Compatible with both on-grid and off-grid applications, the LVS 16.0 adapts to various energy strategies, including backup power systems. This flexibility makes it suitable for diverse consumer needs.

How It Works

The BYD Battery-Box Premium LVS operates by housing multiple battery modules stacked in parallel, allowing for increased capacity and output. The system integrates seamlessly with external inverters to deliver reliable energy storage and management.

Battery Module Configuration

The structure of the battery allows for combined connections of multiple LVS modules, optimizing energy output while retaining the simplicity of operation.

Efficient Energy Management

Through smart communication protocols, the LVS 16.0 effectively manages charging and discharging cycles, ensuring that energy is utilized in the most efficient manner possible.

Robust Performance Under Various Conditions

With an operating temperature range from -10°C to +50°C, the LVS 16.0 is built to perform reliably in diverse environmental conditions, ensuring stable energy supply.

Specifications

Battery Module Size	4 kWh
Usable Energy	16 kWh
Max Continuous Output Current	250 A
Peak Output Current	360 A (5 s)
Dimensions (H/W/D)	1227 x 650 x 298 mm
Weight	199 kg
Nominal Voltage	51.2 V
Operating Voltage	40-57.6 V
Battery Technology	Lithium Iron Phosphate
Enclosure Protection Rating	IP55
Warranty	10 Years
Certification	VDE2510-50 / IEC62619 / CE / CEC / UN38.3
